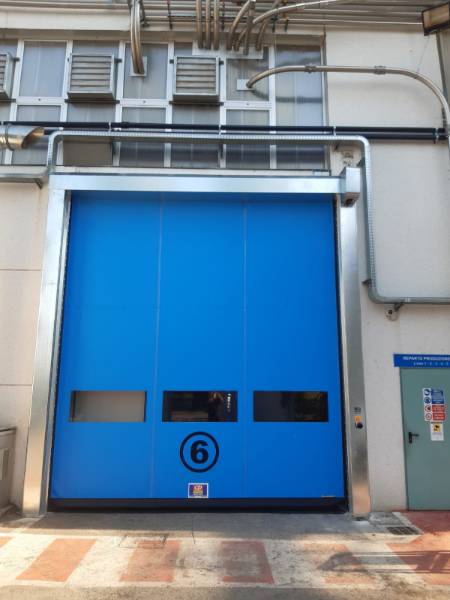

FNFLD High Speed PVC Fold Up Roller Door - Roller Shutter

Verified by manufacturer 4 months ago

UK Roller Shutters Ltd

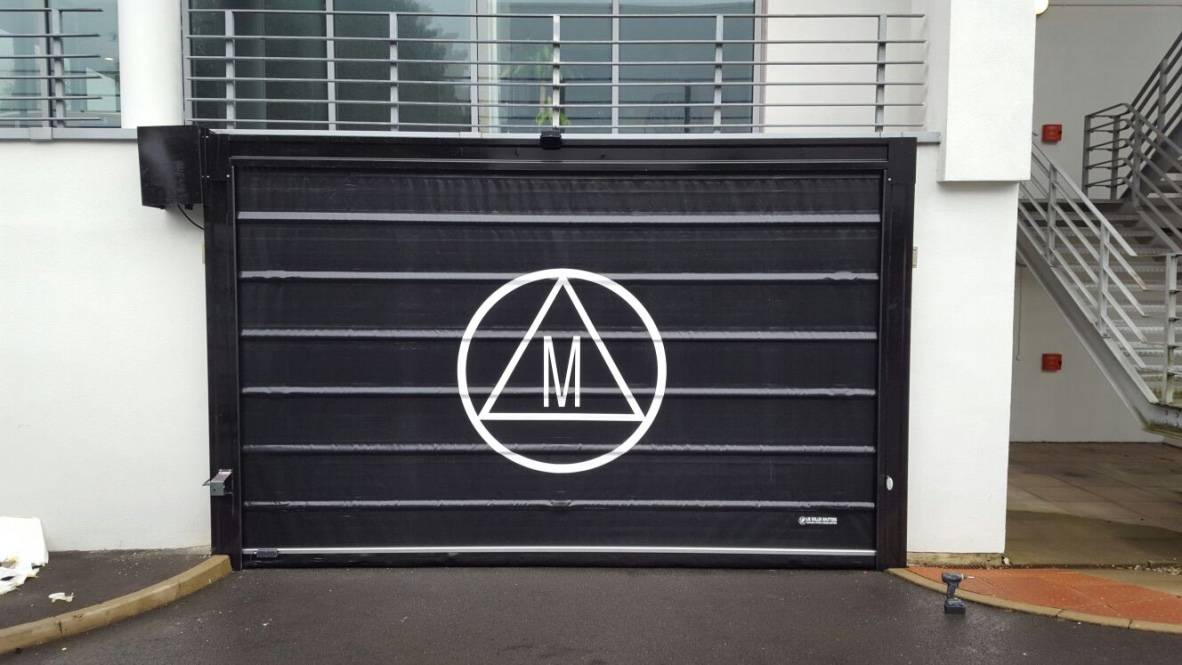

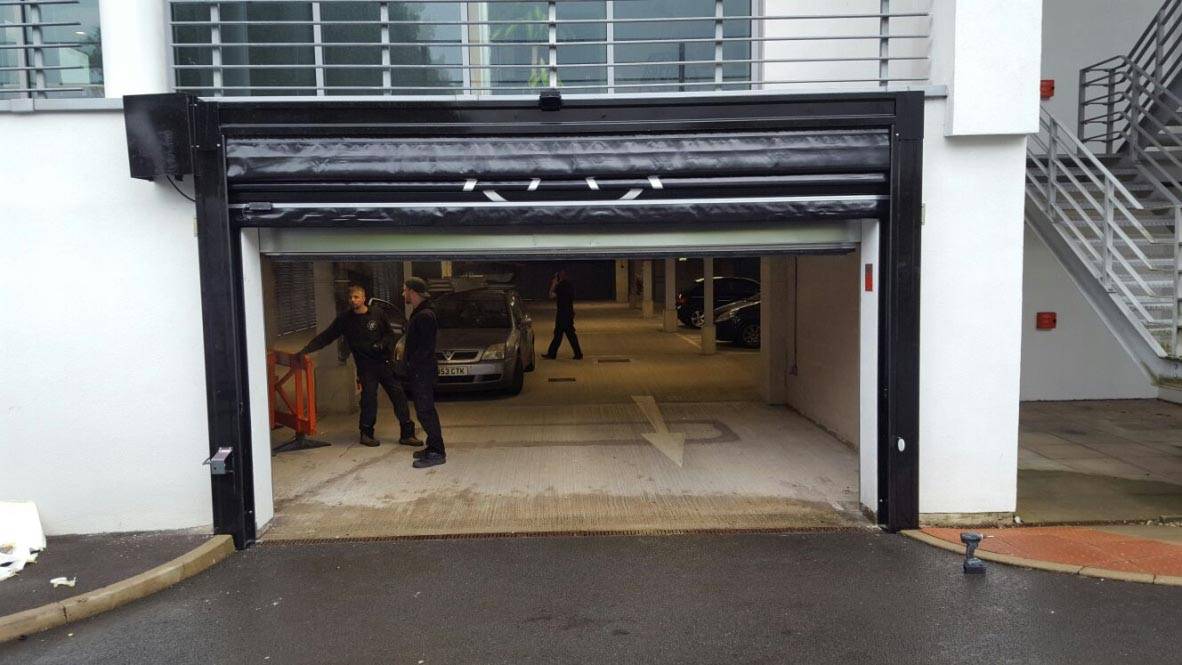

Rapid fold up roller door.

Jump to:
+44 (0)1384 221743 Website

Application

Suitable uses include:

  • Warehouses with very large openings (that our FNRLL PVC Model cannot cater to).
  • High-traffic work yard, for example – a forklift or transport yard.
  • Loading bays.
  • Aircraft Hangars.
  • Anywhere there is a need for climate control such as food processing, chemical and pharmaceutical industries, or a greater need for security.

Description

Where speed, performance and reliability are critical, rapid roller doors offer the optimal solution for working environments. This model caters to larger openings (up to 20 m width and 10 m height) where high-speed operation is required. With an opening speed of 1 m/s to open or close, these doors can vastly reduce any heat loss and restrict the flow of sound. Whether it is crucial to keep heat and noise in or out, Rapid Roller shutter doors are a suitable option.


Features and benefits:

  • Rapid folding roller shutter doors.
  • Allow fast access or quick denial to the premises therefore reducing energy costs, allowing faster material handling and lessen any chance of impact damage.
  • Provide swift security.
  • There is no compromise with either security or aesthetics.
  • Can be manufactured and installed in a large variety of sizes and finishes, being suitable and beneficial for both commercial and industrial environments.


Operation:

  • Due to the nature of the door, it is only available with electric operation.

General information

Color

White

Guidance for specification option:

Standard frame colour - RAL 9010 Pure white.

Red

Guidance for specification option:

Standard frame colour - RAL 3000 Flame red.

Blue

Guidance for specification option:

Standard frame colour - RAL 5010 Gentian blue.

Green

Guidance for specification option:

Standard frame colour - RAL 6005 Moss green.

Grey

Guidance for specification option:

Standard frame colour - RAL 7037 Dusty grey.

Show more

Finish

Galvanized

Material

PVC

Guidance for specification option:

Polyurethane enamel coloured, high strength, PVC.

Steel

Guidance for specification option:

Galvanised or painted steel frame.

Shape

Rectangle

Warranty description

One year

Guidance for specification option:

On electrical parts.

Uniclass

Pr_30_59_84_73 Roller shuttersPrimary

CAWS

L20/610 Roller shutters/ curtains

L20/570 High-speed doors

Specification data - Roller shutters

Opening sizes

-

Manufacturer guidance

Bespoke, available on request.

Performance

-

Resistance to wind load

Class 2.

Frame and guides

-

Material

Steel.

Finish

Galvanized.

Painted.

Colour

White.

Guidance for specification option:

RAL 9010 Pure white.

Red.

Guidance for specification option:

RAL 3000 Flame red.

Blue.

Guidance for specification option:

RAL 5010 Gentian blue.

Green.

Guidance for specification option:

RAL 6005 Moss green.

Grey.

Guidance for specification option:

RAL 7037 Dusty grey.

RAL colour.

Guidance for specification option:

Comes in a range of colours - please refer to brochure and insert requirements.

Manufacturer guidance

Standard frame colours.

Operation

-

Mode

Automatic, 3-phase GFA motor with wireless safety edge.

Guidance for specification option:

As standard.

Automatic, single-phase inverter motor.

Guidance for specification option:

Used in certain situations should it be necessary (assuming it works with dimensions).

Manufacturer guidance

Manual override facility as standard.

Control

Key switch.

Remote control.

Key fob.

Rocker switch.

Progressive photocell barrier.

Timer closing.

Radars.

Induction loop detector and ground cables.

Automated.

Other.

Guidance for specification option:

UK Roller Shutters Ltd can access anyone's systems for operation.

Hood/ fascia

Not required.

Galvanised steel hood.

Guidance for specification option:

To cover coiled curtain and motor to be supplied as standard.

Bottom rail design

Flexible soft ballast filled.

Sustainability data

Material

PVC

Guidance for specification option:

Polyurethane enamel coloured, high strength, PVC.

Steel

Guidance for specification option:

Galvanised or painted steel frame.
