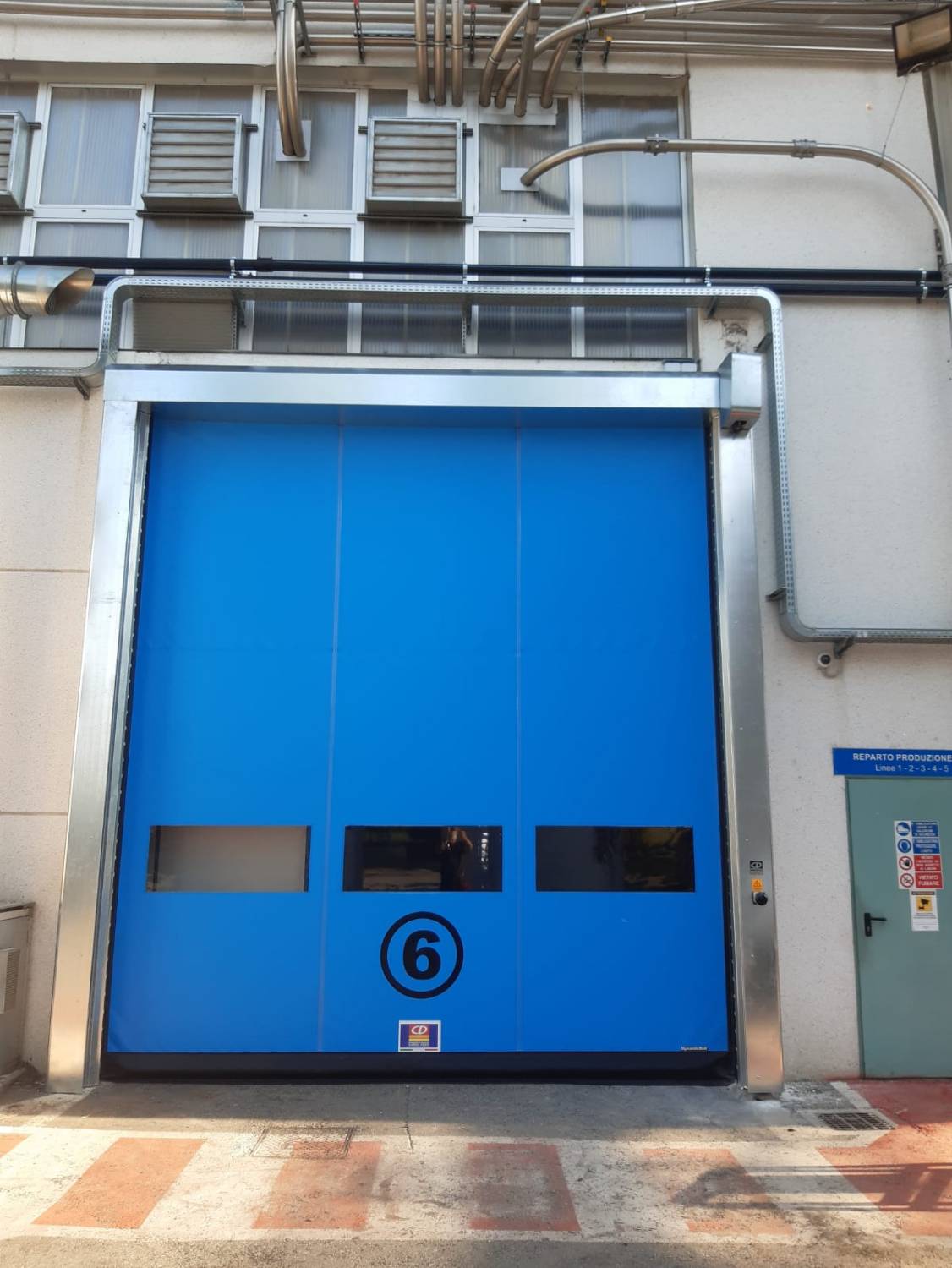

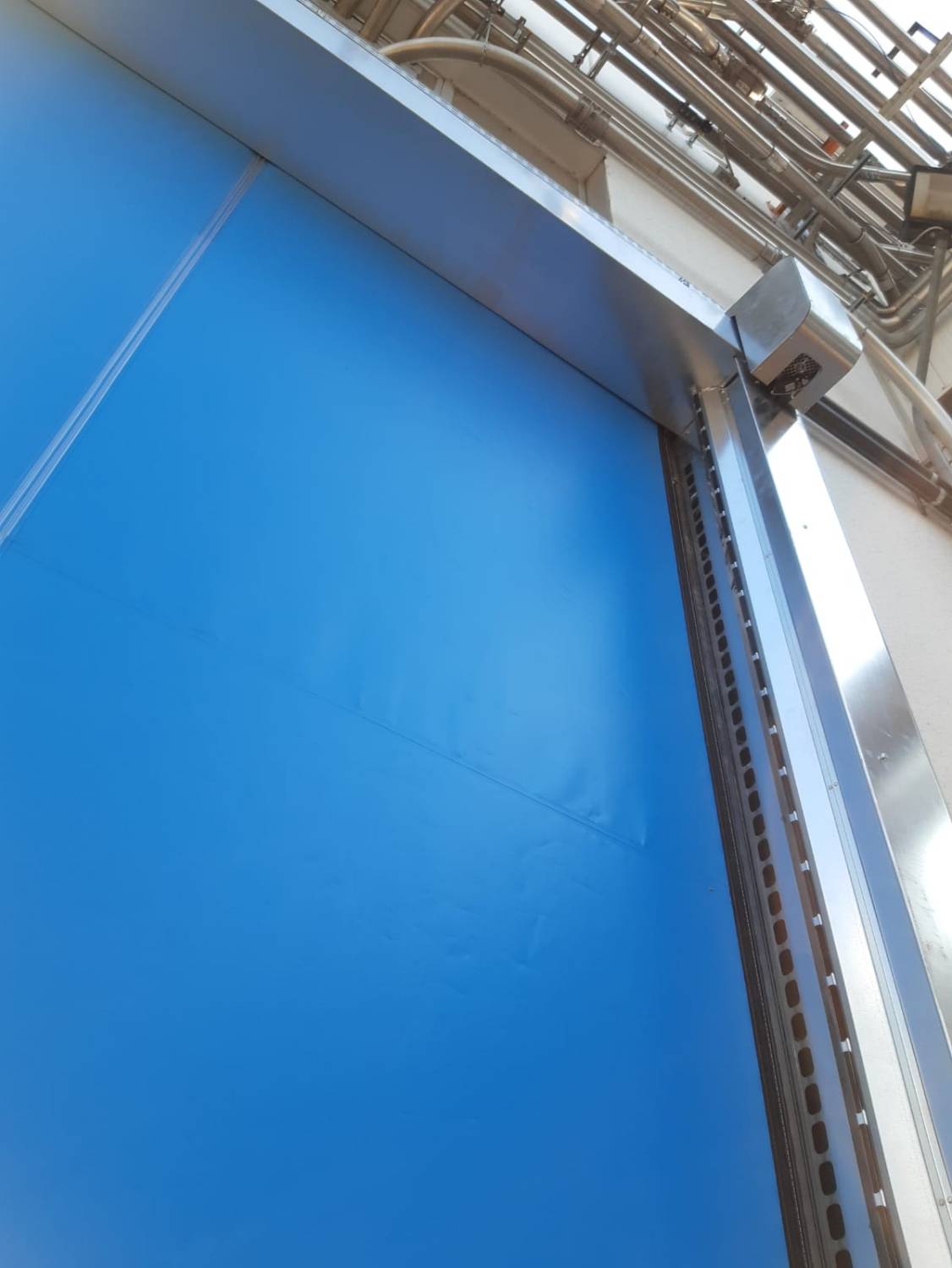

Air Flex High Speed PVC Roller Door - Roller Shutter

Verified by manufacturer 5 months ago

UK Roller Shutters Ltd

Fast-acting PVC high-speed roller door for internal or external openings. Provides rapid access, energy efficiency, airflow control, and safe operation in busy industrial environments.

Jump to:
Request BIM
+44 (0)1384 221743 Website

Application

Suitable uses include:

  • Food manufacturing factories.
  • Production halls.
  • Processing facilities.
  • Loading bays.
  • A variety of other food production facilities.


Description

This PVC high-speed roller door is designed for projects where fast, efficient, and reliable access is essential. Suitable for commercial, industrial, and logistics environments, this high-speed door provides rapid opening and closing to minimise heat loss, improve workflow, and maintain controlled internal environments. The flexible PVC fast rolling door curtain allows continuous, smooth operation while reducing the risk of impact damage in high-traffic areas.

What the Product Does

  • Provides quick access between internal and external areas
  • Helps maintain temperature control, airflow management, and environmental separation
  • Reduces downtime with rapid cycle speeds
  • Supports safe movement of people, machinery, and vehicles

Key Features

  • PVC curtain with high tear resistance and self-extinguishing properties
  • High-speed operation for reduced waiting times and increased efficiency
  • Soft-edge or breakaway bottom bar options to minimise damage on impact
  • Automatic reset function for uninterrupted operation
  • Integrated safety systems, including sensors and photocells
  • Customisable sizes, colours, and window vision panels
  • Low-maintenance design with minimal mechanical wear

Benefits for Architects & Specifiers

  • Helps improve energy efficiency by reducing air leakage
  • Ideal for temperature-controlled environments such as warehouses, factories, food processing plants, and clean areas
  • Enhances traffic flow in busy buildings
  • Reduces noise transfer between zones
  • Provides a durable and cost-effective alternative to rigid shutters
  • Contributes to safer, more productive workspaces

General information

Material

Polyvinyl chloride (PVC)

Guidance for specification option:

Curtain coating.

Steel

Guidance for specification option:

Galvanized or stainless steel frame.

Shape

Rectangle

Warranty description

One year

Guidance for specification option:

On electrical parts.

Uniclass

Pr_30_59_24_38 High-speed doorsetsPrimary

CAWS

L20/570 High-speed doors

SKU Code

Air Flex

Specification data - High-speed doorsets

Classification data

Speed (minimum)

-

Opening

Up to 2 m/s.

Closing

Up to 2 m/s.

Format

Roll up.

Arrangement

Face-fitted across opening.

Manufacturer guidance

Specify size separately below, see Dimensions.

Curtain material

Polyvinyl chloride (PVC).

Guidance for specification option:

Standard curtain coating (1100 g/m²).

Food grade (FDA) curtain.

Frame and guides

-

Material

Galvanized steel, standard guides.

Guidance for specification option:

Standard.

Stainless steel AISI 441 - AISI 316, standard guides.

Guidance for specification option:

Standard.

Acciai Inox AISI 441 - AISI 316, standard guides.

Guidance for specification option:

Optional frame.

Galvanized steel, heated guides/ motor.

Guidance for specification option:

For cold room applications.

Stainless steel AISI 441 - AISI 316, heated guides/ motor.

Guidance for specification option:

For cold room applications.

Acciai Inox AISI 441 - AISI 316, heated guides/ motor.

Guidance for specification option:

For cold room applications.

Finish and colour

As Material.

Operation

Automatic.

Dimensions

Guidance for specification option:

Insert requirements, maximum 4500 x 4500 mm.

Manufacturer guidance

Maximum dimensions.

Operating temperature range

-10°C to +50°C.

MotorPosition

Lateral.

Cycles

1 million cycles.

Manufacturer guidance

Working life.

Duty cycle

3 cycles/min.

Resistance to wind load

Class 2.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Polyvinyl chloride (PVC)

Guidance for specification option:

Curtain coating.

Steel

Guidance for specification option:

Galvanized or stainless steel frame.

Expected Life

30 year

Literature

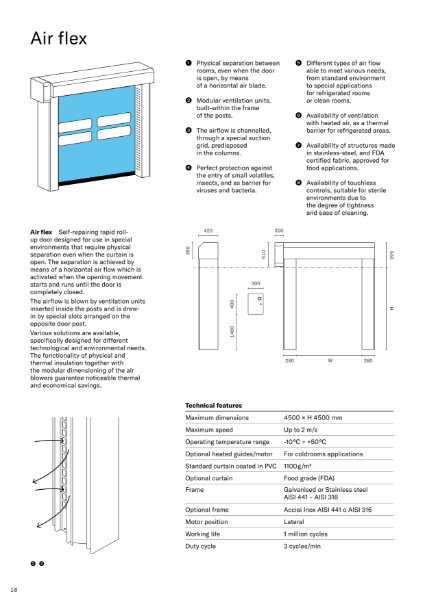

Air-Flex Brochure

Air-Flex Brochure
