FM278 Strainer
Verified by manufacturer 14 days ago
DN50
DN50
A ductile iron pipeline strainer.
Application
Suitable for use on Group 2 liquids only, as defined by the Pressure
Equipment Directive 2014/68/EU.
Description
A ductile iron pipeline strainer.
Features and benefits:
- Scale and dirt in piping systems causes endless trouble and frequently serious damage to pipeline equipment.
- Installation of Crane strainers will help eliminate the problems caused by foreign matter within piping systems.
- The FM278 offers the integrity of manufacture, quality and reliability which are the hallmarks of all Crane products.
- Cap tapped and plugged for drain.
General information
Specification data - Water strainers
Material | Ductile iron - BS EN 1563 EN GJS 500/7, Asbestos free and Stainless steel 304.Guidance for specification option: Body, Cap, Plug: Ductile iron; Gasket: Asbestos free; Screen: Stainless steel. |
Mesh size | 1.6 mm diameter holes. |
Connections | |
Type | Flanged BS EN 1092-2. |
Size | DN50. |
Dimensions | 230 x 146 mm. Manufacturer guidanceRefer to technical datasheet for detailed dimensions. |
Weight | 13 kg. |
Standards | To BS EN 1092-2. |
PressureRange | Temperature: -10 to +120°C: 25 bar. |

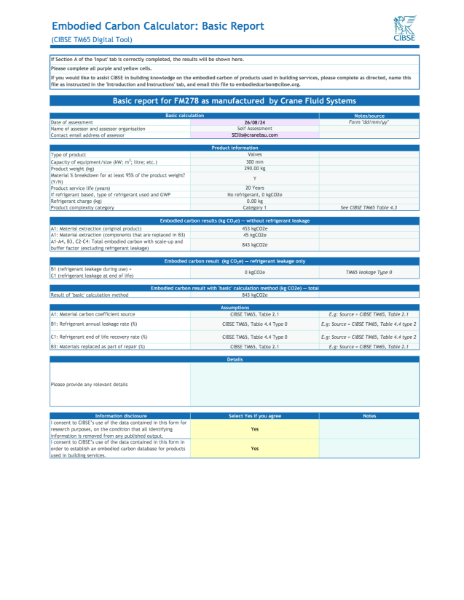

Sustainability data
Material | Cast iron |
Recyclability | Recyclable Guidance for specification option: Recycle locally, consult manufacturer for details. |
Expected Life | 20 year |
