FM276 Strainer
Verified by manufacturer 14 days ago
DN50
DN50
A ductile iron pipeline strainer.
Application
Suitable for use on Group 2 liquids only, as defined by the Pressure
Equipment Directive 2014/68/EU.
Description
A ductile iron pipeline strainer.
Features and benefits:
- Scale and dirt in piping systems causes endless trouble and frequently serious damage to pipeline equipment.
- Installation of Crane strainers will help eliminate the problems caused by foreign matter within piping systems.
- The FM276 offers the integrity of manufacture, quality and reliability which are the hallmarks of all Crane products.
- Cap tapped and plugged for drain.
- Stainless Steel strainer element.
General information
Specification data - Water strainers
Material | Ductile iron A536 65-45-12 (EN-GJS-450-10), Asbestos free, Stainless steel AISI type 304, Malleable iron, Steel grade 8 and Carbon steel grade 4.6. |
Mesh size | 1.5 mm. |
Connections | |
Type | Flanged BS EN 1092-2. |
Size | 50 mm. |
Dimensions | 848 x 680 mm. Manufacturer guidanceRefer to technical datasheet for detailed dimensions. |
Weight | 328 kg. |
Standards | To BS EN 1092-2. |
Materials | Body, Cap: Ductile iron; Gasket: Asbestos free; Screen: Stainless steel; Drain Plug: Malleable iron; Test Point Plug Rc 1/4: Malleable iron; Nuts: Steel; Bolts: Carbon steel. |
PressureRange | Temperature: -10 to +120°C: 16 bar, Temperature: +200°C: 12.8 bar. Guidance for specification option:
|
Flow capacity | 58 kV. Manufacturer guidanceFlow coefficient Kv. |

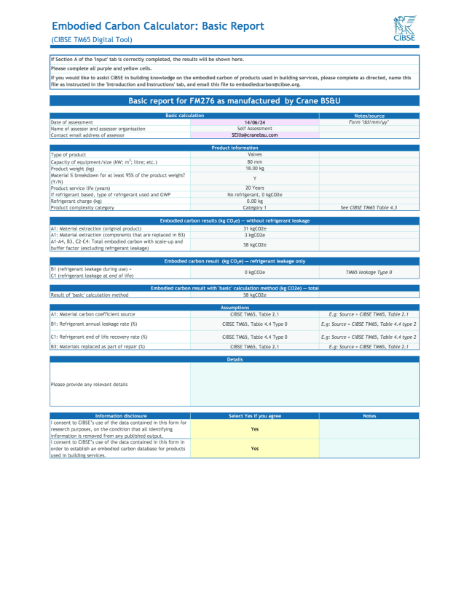

Sustainability data
Material | Cast iron |
Recyclability | Recyclable Guidance for specification option: Recycle locally, consult manufacturer for details. |
Expected Life | 20 year |
