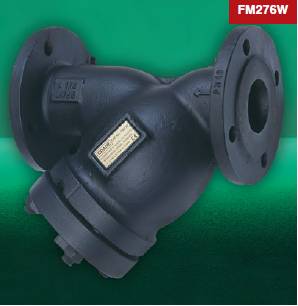

FM276W Strainer
Verified by manufacturer 2 months ago
DN65
DN65
A cast iron pipeline strainer.
Application
Suitable for pipelines generally.
Description
A cast iron pipeline strainer.
Features and benefits:
- Crane strainers will help eliminate the problems caused by foreign matter with piping systems.
- WRAS approved range from DN65 to DN150.
- WRAS approved for use with wholesome (potable) water.
- WRAS approved internal epoxy powder coating.
General information
Specification data - Water strainers
Material | Cast iron BS EN 1561 EN-GJL-250, Malleable iron, Steel BS 4439 GRADE 8.8, Steel BS 3692 GRADE 8, Asbestos free and Stainless steel type 304.Guidance for specification option: Body, Cap : Cast iron; Gasket: Asbestos free; Stud, Nut: Steel; Screen: Stainless steel; Drain plug: Malleable iron; Test point plug Rc 1/4: Malleable iron. |
Mesh size | 1.5 mm diameter holes. |
Connections | |
Type | Flanged BS EN 1092-2. |
Size | 65 mm.Manufacturer guidanceRefer to technical datasheet for detailed dimensions. |
Dimensions | 185 x 290 mm. |
Weight | 18 kg. |
Standards | To BS EN 1092-2 and BS EN 1561. Manufacturer guidanceThis product is not suitable for use on Group 2 liquids only, as defined by the Pressure Equipment Directive 97/23/EC. |
Approvals | The Water Regulations Advisory Scheme (WRAS). |
PressureRange | Temperature: -10 to +85°C: 16 bar. |
Sustainability data
Material | Cast iron |
Recyclability | Recyclable Guidance for specification option: Recycle locally, consult manufacturer for details. |
Expected Life | 20 year |
