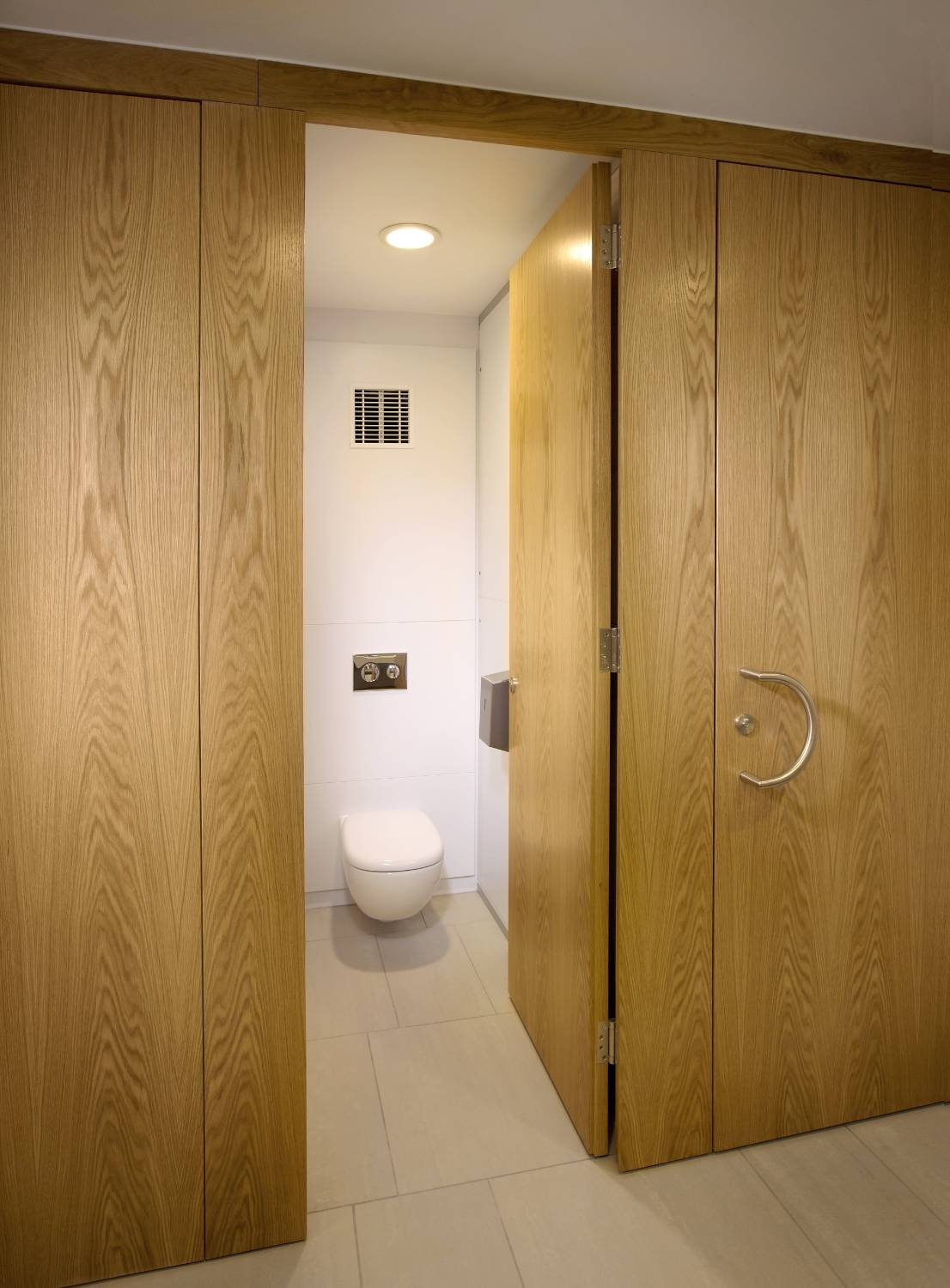

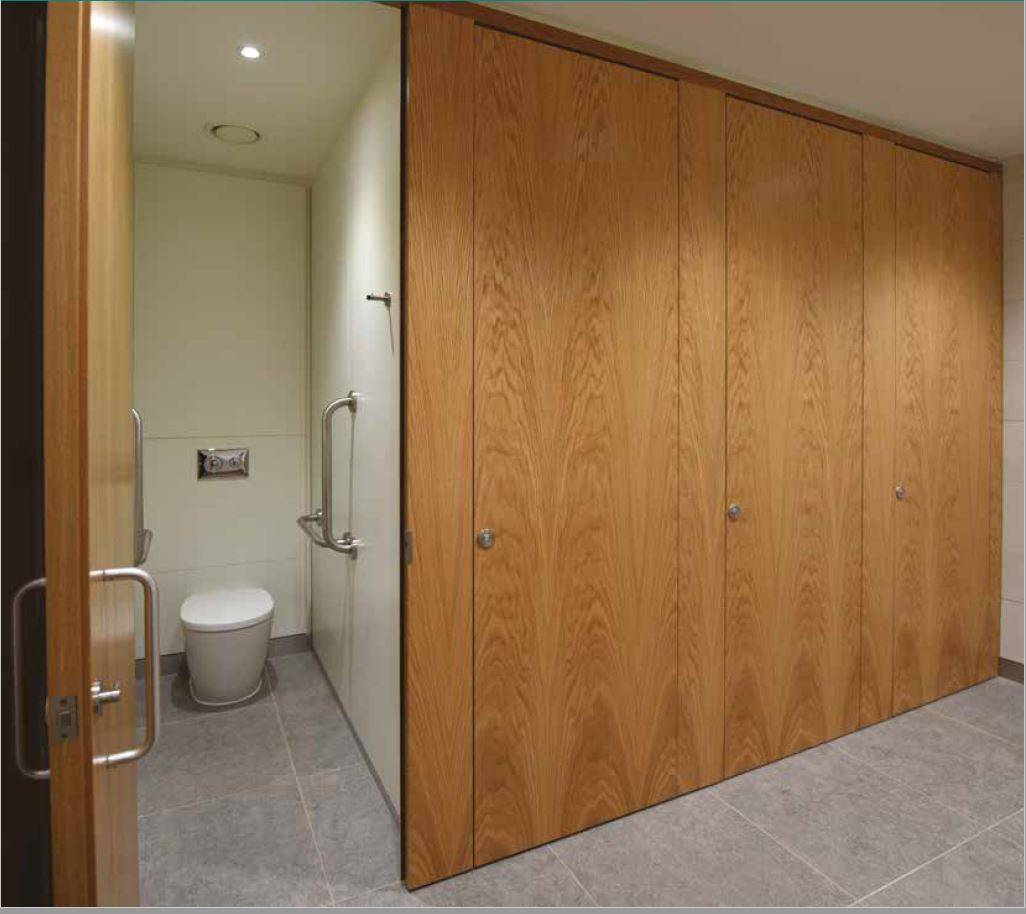

Flush44 HPL (Flush Fronted) WC Cubicles - Cubicle

Name: Flush44 HPL (Flush Fronted) WC Cubicles - Cubicle
Brand: Excelsior Panelling Systems Ltd
SKU: aBJHhfxzQQiCkSHindwZxs

Verified by manufacturer 3 months ago

Flush44 HPL WC Cubicle 2100 mm High

Excelsior Panelling Systems Ltd

Third party certifications:

CHAS
Certificate type
Constructionline
Certificate type
ISO 9001 Quality Management
Certificate type
EPD
Certificate type

The Premium Flush Fronted Cubicle solution.

Jump to:

BOS

+44 (0)1384 267770 Website

Application

Washrooms, Gyms, Offices, commercial settings,

Description

A ‘premium quality’ system, offering a sleek flush fronted facade, with surface finishes available in both HPL and Natural Veneer complete with hardwood edges to doors.

Allowing the the most discerning specifier complete satisfaction in their selection. Outward opening doors complete with back to back Stainless Steel ‘D’ Handles.

Available in three standard formats:

2100 mm overall proprietary height incorporating a 150 mm pedestal leg and SAA box headrail.
Full height up to 2700 mm as standard floor to ceiling option with 38 mm divisions set into a ‘U’ section floor channel.
Full height 2700 mm as standard floor to ceiling option with back to back duct panel divisions offering a 100 mm service void.

All three formats incorporate Stainless Steel Ironmongery as Standard and are DDA compliant with outward opening

doors complete with ‘D’ handles to ease access where doors are set to fall closed.

Flush44 is available in several different surface finishes including High Pressure Laminate and Natural Wood Veneers complete with rebated Hardwood edges to all doors and

pilasters.

General information

Color	- Manufacturer guidance Colour selections from Polyrey, Pfleiderer, Formica, Greenlam C&W charts, consult manufacturer for details
Finish	Laminated
Material	High pressure laminate (HPL)
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	2100 mm 2700 mm
Warranty description	Ten year

Uniclass	Ss_25_12_60_60 Panel cubicle systemsPrimary
CAWS	K32/120 Panel cubicles K32/10 Panel cubicles

Specification data - Panel cubicle systems

Panels	High Pressure Laminate PUR bonded onto 44 mm MR core. Manufacturer guidance Natural Veneers, Digital Print HPL and Gloss HPL available at additional cost, consult manufacturer for details and insert requirements.
Panel supports	Leg 150 mm - Ref: EXL - A150 SBAA Finish. Leg 50 mm. Leg 100 mm. Floor channel division fix.
Pilasters	High Pressure Laminate PUR bonded onto 44 mm MR core.
Doors	High Pressure Laminate PUR bonded onto 44 mm MR core.
Lippings	Rebated Hardwood Edges, sealed two coats AC Lacquer. For divisions: Matching Laminate edge detail .
Hardware	DLine. Guidance for specification option: Ironmongery: Stainless Steel as Standard. Continuous ‘T’ section Pilaster fixing channel Royde & Tucker D-Line Stainless Steel rise and fall hinges D-Line Eisenware Butterfly Turn and Release Deadbolt 4871.01 with Excelsior Wrap striking plate/keep 38 mm ‘U’ section SAA floor channel Hat & Coat hook 9 0mm with buffer T500 Rear Wall ‘T’ section division fixing channel 3 mm door/pilaster cushion gasket 2100 mm high also includes: Headrail – T-Line 38 mm U Section headrail SAA Headrail End Caps – Ref: 38 mm end
System accessories	- Manufacturer guidance Toilet roll holders and accessories available upon request.

Dimensions	2100 mm overall height x 1500 mm deep with 150 mm leg.
Colour/ Finish	- Manufacturer guidance Colour selections from Polyrey, Pfleiderer, Formica, Greenlam C&W charts, consult manufacturer for details

Sustainability data

Country of material origin	Europe
Country of product manufacture	United Kingdom
Material	High pressure laminate (HPL)
Manufacturing plant location	Dudley DY2 0RL, UK
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
Expected Life	12 year
