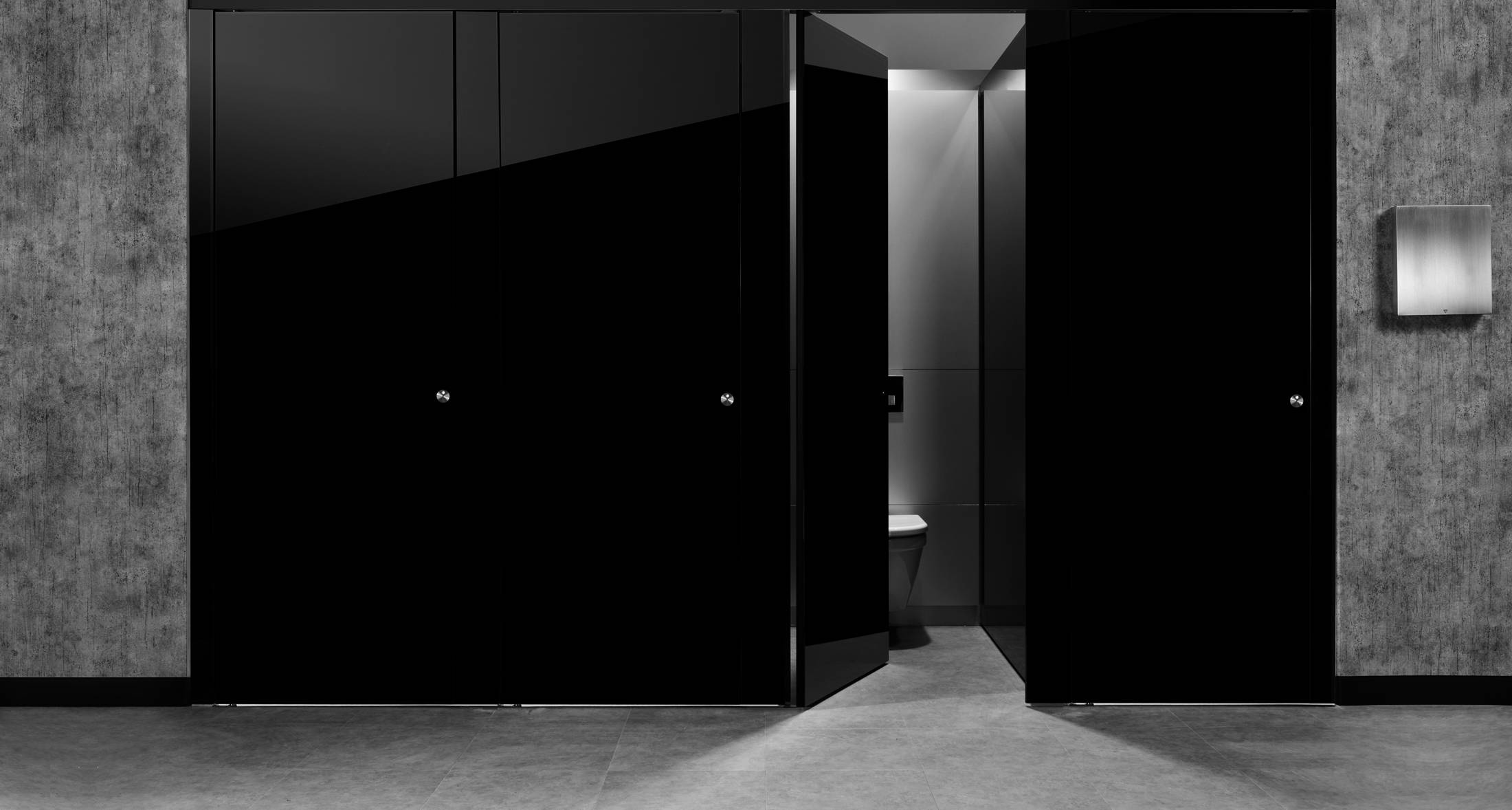

Flow Glass Washroom Cubicle

Full anodized aluminium frame using aluminium alloy 6063T6, with a 5 micron anodized finish and 60% recycled content. Extruded headrail finished with matching high pressure laminate. Stainless steel lock locates into receiver integrated within the vertical fascia.

42 mm finished thickness consisting of a 29 mm ultra-lightweight MDF core sourced from sustainable forests, faced in high pressure laminate, then rebated and hand-lipped to accept 5 mm low-iron back-painted toughened glass to both faces. Concealed fixings within the door allow attachment to stainless steel pivot blocks, suspended from a structural aluminium headrail and located onto floor-fixed pivot bracket. Door falls closed by means of a hydraulic door closer, concealed within the aluminium headrail (alternatively, the closer can be factory-set to fall open).

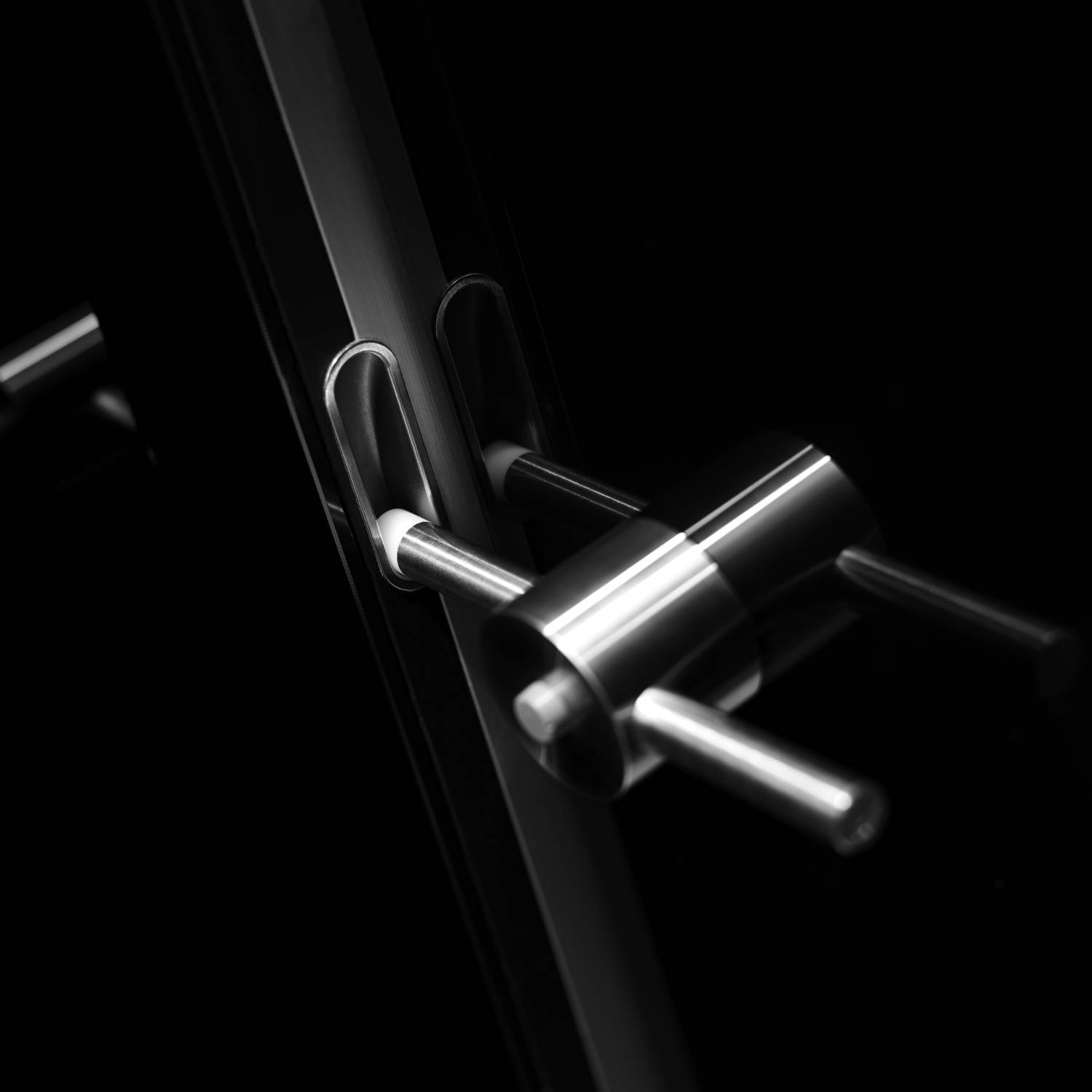

1.4305 (303) grade brushed stainless steel lock, hand-turned in UK and able to be opened using a closed fist, fixed through the door to the faceplate for added strength. Sacrificial hard nylon shear tip to the lock finger, which locates into flush receiver, integrated within the cubicle fascia. Complete with emergency release facility and buffer. Divider fixed to back wall using concealed steel brackets, fastened by through-fixings. Divider connected to front fascia using unique magnetic invisible fixings. Stainless steel coat hook supplied as standard.

Guidance for specification option:

Components tested over a cycle of 300 000 operations, equating to a 15-year period in a medium-use washroom.
