Floria - Clay Facing Brick

Application

Brickwork

Description

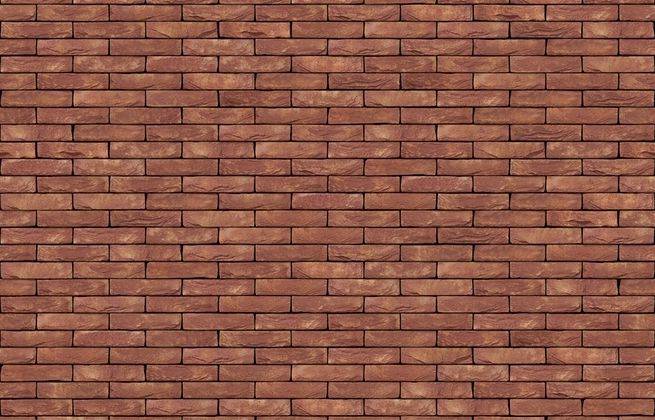

A facing brick with red and orange shades, and a sanded-coated and grained structure.


The raw materials are excavated in Weichsel loam layers, the local loam of Aeolian origin dating from the Ice Age. This löss mainly consists of a silt-like fraction, suited ideally for the manufacturing of hand form bricks. By using specific sand types for surface covering, the desired colour is achieved.


Features and benefits:

  • Hand-formed.
  • Multi-shade.
  • Red base colour with orange variations.

General information

Color

Red

Red-dark red-orange.

Material

Clay

Shape

Rectangular

Size

215 x 100 x 65 mm

Uniclass 2015

Pr_20_93_52_15 Clay bricksPrimary

CAWS

F10/5 Facing brickwork

F10/110 Clay facing brickwork

Specification data - Clay bricks Enhanced data

Standard

To BS EN 771-1.

Brick description

Facing brick.

Appearance

Sanded-coated and grained structure. Red-dark red-orange multi-coloured.

Work size (length x width x height)

215 x 100 x 65 mm.

DF.

58 units per m².

Unit weight: 2.11 kg.

Tolerances

-

Mean value

T2.

Range

R1.

Compressive strength

-

Mean compressive strength (minimum)

≥20 N/mm².

Tested to the bed face.

Durability designation

F2 S2.

Density

-

Gross dry

1580 kg/m³.

Net dry

1690 kg/m³.

Tolerance

D1.

Water absorption

≤15% m/md.

Initial rate of water absorption, to EN 771-1:2011 - 5.3.8:


  • Non-coated bricks: 1.5–4.0 kg.m² minimum (IW3).
  • Coated bricks: 0.5–1.5 kg.m² minimum (IW2).

Thermal conductivity

≤0.60 W/m·K.

Lambda 50/50.

  • Lambda 90/90: 0.65 W/m·K.
  • Lambda Ui: 0.697 W/m·K.
  • Lambda Ue: 1.376 W/m·K.

Water vapour permeability

5/10 µ.

Bond strength

0.15 N/mm² (general); 0.30 N/mm² (thin layer).

Reaction to fire

Class A1 to BS EN 13501-1.

Product Reference

Floria

Jointing

White.

Jointfree.

Grey.

Beige.

Light grey.

Dangerous substances

NL-BSB.

According to Annex ZA 3.

Environmental information

Country of product manufacture

Belgium
