Floor Mounted - P224 – Standard force - 150 kN.
Achilles Information Limited - Procurement Management
Certificate type
Acclaim Accreditation
Certificate type
CHAS
Certificate type
Constructionline Gold
Certificate type
BSI Kitemark
Certificate type
Fleet Operator Recognition Scheme
Certificate type
FSC
Certificate type
CQMS
Certificate type
PEFC
Certificate type
The Railway Industry Supplier Qualification Scheme
Certificate type
Alcumus SafeContractor
Certificate type

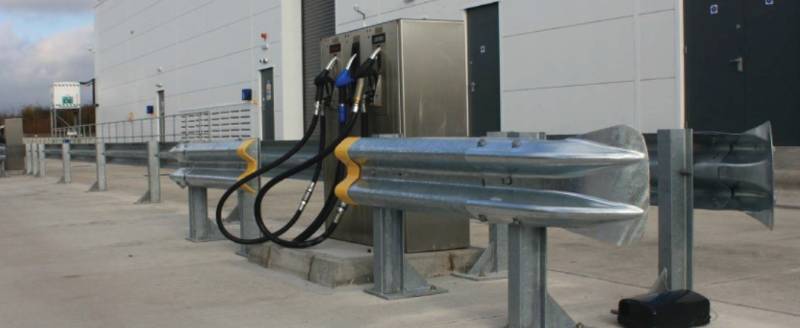

Floor-mounted rigid post.
The sturdy design means the P224 can be used in very tight areas where there are limited deflection zones.
The P224 Rigid Post is most commonly used in industrial type applications to limit the system deflection. This is available in standard 547, 610, 747 and 1087 mm high posts.
The Rigid Post systems are effective in protecting errant vehicles, assets and buildings. Its design means there is limited deflection under impact, meaning it can be placed close to wall lines. Posts can be spaced at 3.2 m centres for a ‘visual deterrent’ system that will provide demarcation only.
Can be used in conjunction with the integrated BS 6180 compliant handrail and mesh products.
Features and benefits:
Color | Silver |
Finish | Galvanized |
Material | Steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | 547 mm 610 mm 747 mm 1087 mm 1487 mm |
Warranty description | One year |
Uniclass | |
CAWS | Q41/170 Vehicle safety fences – metal Q41/170 Vehicle safety fences – metal |
Standards | |
Double open box beam | To BS 1991-1. |
Posts | P224 Rigid RSJ Post with (127 x 76 mm) with welded base plate. Grade S725 galvanized steel.Manufacturer guidanceBespoke. |
Rails | 312 x 85 x 3 mm Barrier Rail. |
Post centres | 1500 mm. 1600 mm. |
Beams | Bery Beam. Guidance for specification option: 1500 mm post centres. Flexibeam. Guidance for specification option: 1600 mm post centres. Armco Rail Barrier Rail. Manufacturer guidanceBeam thickness: 2 mm. |
Anchor | M16 std Toge. Manufacturer guidanceEmbedment: 125 mm. |
Handrail | BS 6180 Compliant Handrail. |
Mesh panels | Required. |
Post height | 547 mm. 610 mm. 747 mm. 1087 mm. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel |
Recyclability | 100% |
