Floor Access Door with Recessed Lid

Verified by manufacturer 2 months ago

Surespan

Recessed access covers manufactured in aluminium or stainless steel, available in any size. The floor door can be made with a pan type lid to take a flooring infill of any depth and weight.

Jump to:
BOS
+44 (0)1922 711185 Website

Application

Ideal for internal or external use in a variety of applications, from swimming pools to heavy duty industrial plants and dockyards. Floor doors can be designed to take any form of loading for a wide range of services.

Description

Recessed access covers manufactured in aluminium or stainless steel, available in any size. The pan type lid is recessed 3–100 mm subject to the weight of the infill. These floor hatches can be fire rated and/or insulated as required.


Features and benefits:

  • The pan type lid is recessed 3–100 mm subject to the weight of the infill.
  • The lid is held shut by a heavy duty stainless steel cab lock and is a capable of being opened from both sides.
  • The lid locks in the open position with a safety hold-open stay to prevent against accidental closure.
  • The cover is operated by 316 grade stainless steel gas spring.
  • The access cover is not watertight but is self-draining. Any water passing the seals will be dispersed via an integral drainage channel, which is fitted with an internal 0.75 inch flexible hose adaptor.
  • Capable of taking loadings up to 24 tonne.
  • This floor door can be manufactured as a hinged or lift out cover.

General information

Finish

Anti-skid

Anti-slip

Anti-microbial

Blasted

Anodized

Show more

Material

Aluminium

Guidance for specification option:

As standard.

Stainless steel

Steel

Shape

Rectangle

Square

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

25 year

Uniclass

Pr_30_59_36_30 Floor hatchesPrimary

CAWS

L20/630 Hatches

P30/301 Access covers, manhole tops and frames

Specification data - Floor hatches

Type

External.

Guidance for specification option:

As standard.

Internal.

Material

Aluminium

Guidance for specification option:

As standard.

Stainless steel

Steel

Infill

100 mm infill can be accommodated where required, consult manufacturer.

Loading class

Not required.

FACTA Class A.

Guidance for specification option:

0.6 t pedestrian.

FACTA Class AA.

Guidance for specification option:

1.5 t light use.

FACTA Class AAA.

Guidance for specification option:

2.5 t light industrial use.

FACTA Class B.

Guidance for specification option:

5.0 t.

Show more

FireRating

Not required.

1 h.

2 h.

3 h.

4 h.

Thermal insulation

Not required.

Guidance for specification option:

As standard.

Required.

Guidance for specification option:

Insert requirements.

Accessories

None.

Cam locks.

Electrical interlock.

Ladder extensions.

Locking boxes.

Show more

Cover

Cover designed with a pan type lid recessed 3–60 mm (standard), 100 mm maximum (bespoke) subject to the weight of the infill (specify flooring material, thickness and weight).

Locking

Type 316 stainless steel slam action cab lock. The locks are easily opened from the inside and key operated from the outside.

Operation

Gas spring assisted manual opening with hold-open arm.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Aluminium is recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

80 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC

IFC2X3

4

Revit

Revit 2016

6

Literature

Floor Access Hatches

Floor Access Hatches

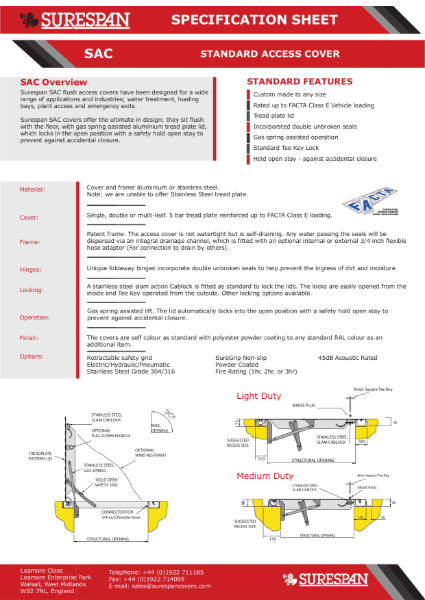

Floor Door Flush External Access

Floor Door Flush External Access

Floor door to take flooring infill Recessed Access Cover

Floor door to take flooring infill Recessed Access Cover

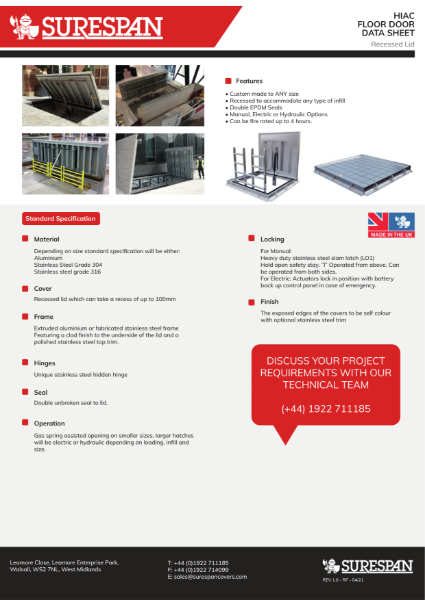

Data Sheet - Floor Door for Access
