Floodline Ranger® HLD Control Panel - Hybrid Leak Detection Panel

Name: Floodline Ranger® HLD Control Panel - Hybrid Leak Detection Panel
Brand: Andel Ltd
SKU: 794RTNYEtwupzQ5dH3znx4

Verified by manufacturer 2 months ago

Andel Ltd

Hybrid leak detection panel with multiple distance measuring and zonal options.

Jump to:

+44 (0)1484 845000 Website

Application

Floodline® Ranger HLD is designed for medium-size installations up to 24 zones or 16 distance measuring cables – or a combination of both.

Description

Floodline Ranger® HLD Control Panel is designed for medium size installations. The panel is a true hybrid that is able to accept input alarms from all Floodline sensors as well as third-party sensors. It allows the sensitivity of each zone to be adjusted to suit the environment and working conditions for that zone, significantly reducing the risk of false alarms.

Features and benefits:

Easy-to-use, push button control panel with integrated LCD screen.
Full hybrid simultaneous monitoring of zonal and distance measuring leak detection sensors.
Monitors full range of Floodline water, oil, gas, temperature and humidity sensors as well as third-party sensors.
Can be configured for 6, 12, 18, 24 zones or 4, 8, 12, 16 distance measuring cables (or a combination).
A Floodline zone can also be a distance measuring cable.
Adjustable zone sensitivity.

General information

Color	Grey
Finish	Powder-coated
Material	Steel
Shape	Rectangle
Length	115 mm Manufacturer guidance Depth.
Width	335 mm
Height	350 mm
Warranty description	Ten year

Uniclass	Pr_75_50_18_48 Liquid presence detection programmable control unitsPrimary

Specification data - Liquid presence detection programmable control units

Nominal voltage	230 V a.c. Guidance for specification option: Mains operated.
Nominal frequency	50 Hz. Guidance for specification option: Mains operated.
Number of zones	6, 12, 18 or 24 zones. 4, 8, 12 or 18 distance measuring.
Controls	-
Display type	LCD screen and status LEDs.
Display the following information	Leak detection and system fault. Guidance for specification option: Leak detection: continuous water, oil, gas leak detection plus temperature and humidity monitoring with each zone reporting separately. System fault: sensor or cable damage, failure or disconnection.
Features	Fully programmable leak detection monitoring.
Battery backup capacity	12 V d.c. internal and battery backup.
Communications	-
Outputs	Complete power failure (SPCP, 240 V.a.c., 5 Amp). Mains failure (SPC0, 240 V.a.c., 5 Amp). System failure (SPCO, 240 V.a.c., 5 Amp). Zone fault (open/ short circuit) (SPCO, 240 V.a.c., 5 Amp). Leak detected (SPCO, 240 V.a.c., 5 Amp).
Network protocols	Modbus TCP/ IP. Modbus RTU. GSM extension.
Enclosure	-
Material and finish	Fine textured steel, powder-coated, traffic grey (RAL 7043).
Mounting method	Suitable for walls.

Configuration	4 configurable main relays. 6 configurable individual relays (NO/NC).
Dimensions	350 x 335 x 115 mm. Manufacturer guidance Height x width x depth.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom

Literature

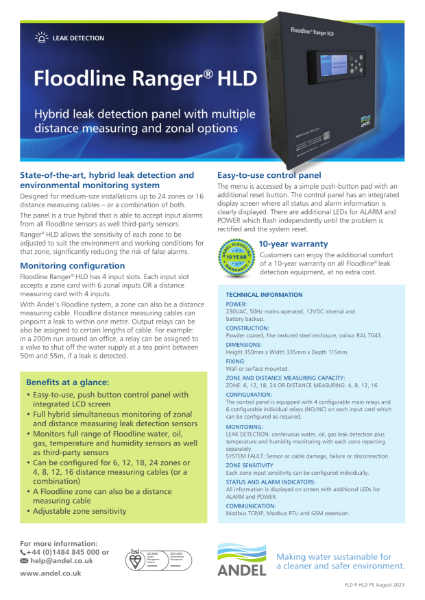

Floodline Ranger® HLD Control Panel
