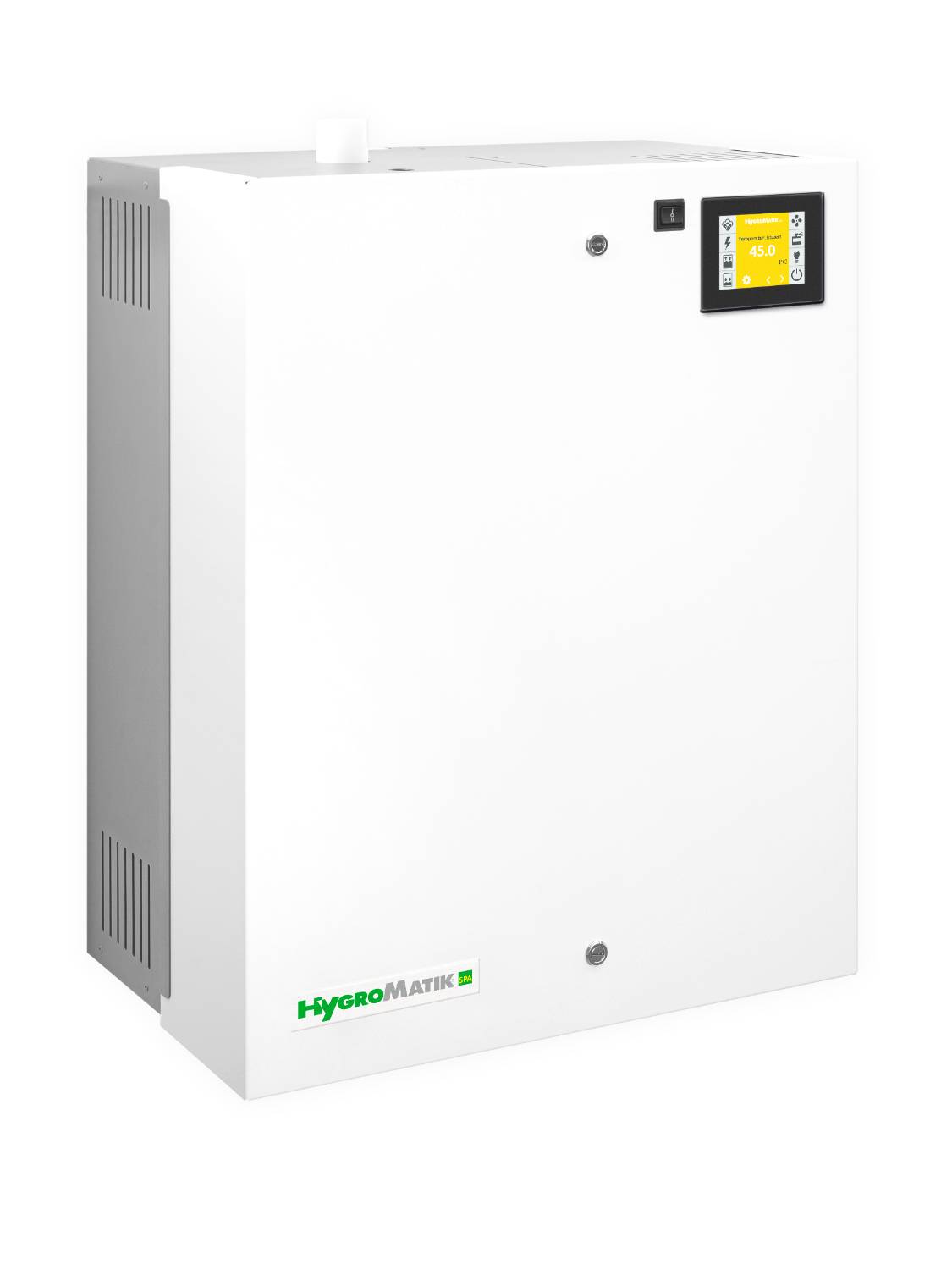

FLH - FlexLine Resistive - Steam Humidifier Range

Verified by manufacturer 3 months ago

FLH03 - rated steam production: 2.7–3.3 kg/h

CAREL Variant:
Third party certifications:
  • Watermark

    Watermark

    Certificate type

  • Declare

    Declare

    Certificate type

Steam humidifiers which consist of a basic model that can be expanded to create an individual humidification solution.

Jump to:
+44 (0)20 8391 3540 Website

Application

Applications include:

  • Public buildings and offices.
  • Production and manufacturing processes.

Description

Steam humidifiers which consist of a basic model that can be expanded to create an individual humidification solution suitable for all requirements.


Features and benefits:

  • Ease of installation by means of individual pre-configuration ex-factory.
  • Expansion options for retrofitting.
  • Autonomous control and stabilization of air humidity in ventilation systems for industry and processes.
  • Capacitive 3.5“ touch display.
  • Adjustable power limitation from 1% to 100%.
  • Adjustable load shedding to temporarily adapt operation to the respective load conditions.
  • Long-term continuous operation: A robust base material provides our reusable cylinders with high temperature resistance and dimensional stability.
  • Durable: All FlexLine cabinets are manufactured in corrosion-resistant stainless steel; the powder coating of the housing increases the lifespan and offers optimum work safety.
  • Robust blowdown pump for removing scale deposits to ensure long operating life cycles and minimal maintenance.
  • Mechanical safety temperature limiter for heater type steam humidifiers.
  • Numerous control and reporting functions can be assigned to up to 11 relays depending on the unit.
  • Freely programmable, overload-protected digital input.
  • Standby heating for quick steam production.


Certifications:

VDE and GS certification; CE- and EAC-compliant.

General information

Color

White

Silver

Finish

Powder-coated

Material

Metal

Guidance for specification option:

Housing.

Shape

Other

Length

320 mm

420 mm

Width

540 mm

640 mm

1170 mm

Height

535 mm

695 mm

785 mm

Warranty description

One year

Guidance for specification option:

Materials warranty (from the manufacture date, excluding consumables).

Uniclass

Pr_65_67_39_84 Steam humidifiersPrimary

Specification data - Steam humidifiers

Electrical supply type

Single phase, 220–240 V a.c., 50/ 60 Hz.

Steam source

Resistive boiler (heater elements).

Material

Galvanized metal housing.

Access doors for maintenance

Manufacturer's standard.

Accessories

Not required.

Standard manifolds.

Guidance for specification option:

Lances for duct (HVAC).

Fan blower, VU10 up to 10 kg/h.

Guidance for specification option:

Fan blower for room (HVAC).

Fan blower, VU30 up to 30 kg/h.

Guidance for specification option:

Fan blower for room (HVAC).

Steam hose.

Fogmaker for steam bath.

Guidance for specification option:

Wellness and SPA.

Steam jet nozzle for steam bath.

Guidance for specification option:

Wellness and SPA.

Remote display for steam bath.

Guidance for specification option:

Wellness and SPA.

Temperature sensor for steam bath.

Guidance for specification option:

Wellness and SPA.

Dimensions

540 x 535 x 320 mm.

Manufacturer guidance

W x H x L.

Weight

18 kg.

Network type

Modbus RTU.

BACnet.

Steam

Rated production: 2.7–3.3 kg/h.

Power consumption

2.1–2.4 kW.

Guidance for specification option:

Nominal current: 9.4–10.2 A.

Connections

Steam: 25 mm diameter.
Water fill: 3/4”.
Water drain: Ø1 1/4“.

Pressure

Outlet pressure limits: 0–1500 Pa.

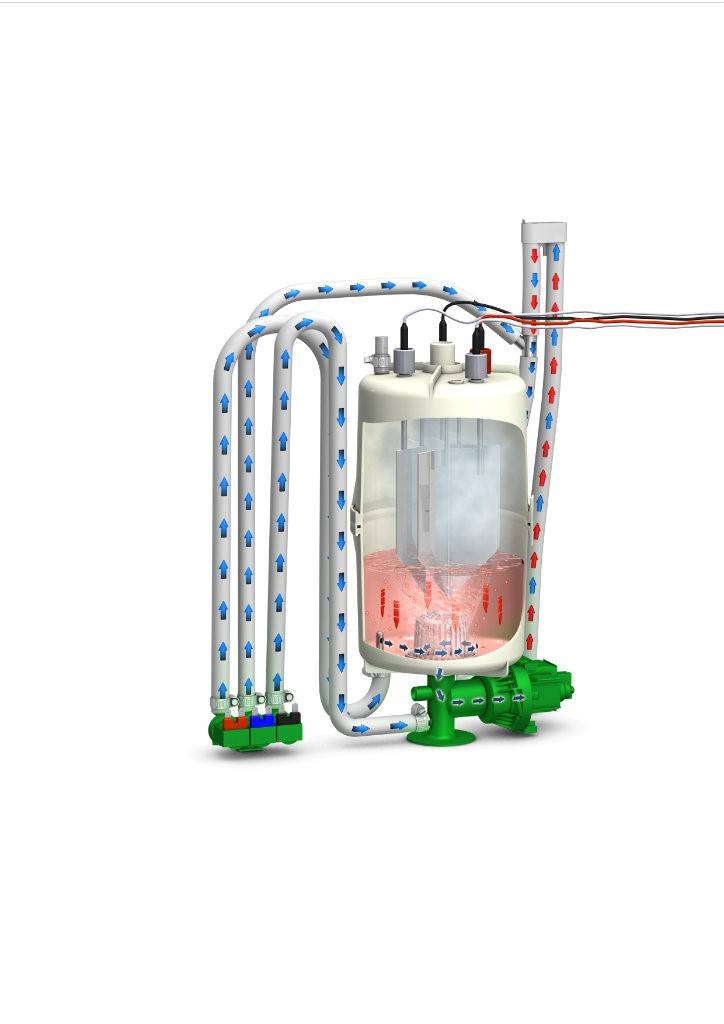

Cylinders

Standard cleanable cylinder.

SuperFlush and HyFlush.

Guidance for specification option:

Cylinder flushing device.

HyCool.

Guidance for specification option:

Integrated waste water cooling.

HyFlush and HyCool.

Guidance for specification option:

Cylinder flushing device and integrated waste water cooling.

Manufacturer guidance

One cylinder.

Conditions

Operating: 5 to 40°C, to not exceed 80% relative humidity.

Ingress protection

IP20.

Model

FLH-T (HVAC) - Resistive.

Guidance for specification option:

Equip HygroMatik FlexLine with the power you need for optimum humidification. Performance classes with steam output from 3 kg/h to 100 kg/h are selectable in 6 housing sizes. In addition, individual performance adjustments can be programmed both at the factory and on site.

FLH-TSPA (Wellness/ SPA) - Resistive.

Guidance for specification option:

Equip HygroMatik FlexLine with the power you need for optimum humidification. Performance classes with steam output from 3 kg/h to 100 kg/h are selectable in 6 housing sizes. In addition, individual performance adjustments can be programmed both at the factory and on site.

  • Highest regulating accuracy and top protection against excessive temperatures by means of second supply air and ventilation steam bath fan.
  • The option of up to 4 different lighting scenarios.
  • Flexible switchover of up to 4 essences without changing containers.

Water

Fill:
· Temperature limits: <40°C.
· Water pressure limits: 1 to 10 (bar).
· Conductivity limits: 125 to 1250 μS/cm.

Fan

One blower, type VU10.

Guidance for specification option:

Power supply: 220-240V / 1 / N.

Rated power: 26 W.

Sound level: 49 dB(A) (at 1 m distance).

Manufacturer guidance

Steam outlet adapter Ø25 mm to Ø40 mm needed.

BIM objects

Platform Compatible Version
Revit
 -

1

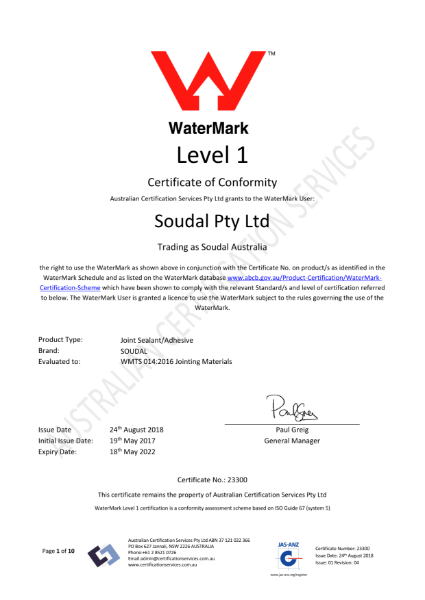

Third party certifications
