Flame-Free Reinforced Bituminous Membrane (Felt) Flat Roofing System - IKO ULTRA Life 30
Verified by manufacturer 2 months ago
Premium flame free flat roof waterproofing system.
Application
Flat roofing applications.
Description
The system offers a completely flame-free specification option, as a solution for projects where the criteria require cold applied installation. The need for hot poured bitumen or gas torches is eliminated, allowing fast, clean and safe installation. The system is installed by IKO Approved Contractors.
The membranes have been engineered to incorporate thicker coatings with enhanced polymer content and high strength reinforcements for outstanding durability, high flexibility and workability. The membrane incorporates the Prevent Graphite Fire Wall Technology with self-extinguishing properties and has been classified as BROOF(t4) in accordance with BS EN 13501-5: 2005 fire classification of construction products and building elements.
Features and benefits:
- Optimum SBS polymer content for unrivalled flexibility and workability.
- Prevent graphite firewall technology - highest UK fire performance.
- Highly stable polyester/ glass fibre laminate base fabrics offering exceptional stability and strength.
- Built-in anti root formulation - suitable for use under green roofs.
- Comprehensive guarantees available covering materials, workmanship and design.
- BBA Agrément certificate 15/5238.
- NHBC Accepted.
- CE Marking In accordance with harmonized European Standards BS EN 13707.
- IKO 30-year guarantee.
- IKO approved contractor and installer application.
General information
Color | Black Red |
Finish | Mineral |
Material | Bitumen Polyester |
Shape | Other Guidance for specification option: Roll |
Length | Bespoke |
Width | Bespoke |
Warranty description | 30 year |
Uniclass | |
CAWS | J41/115 Single-layer reinforced bitumen membrane warm deck roof covering J41/10 Reinforced bitumen membrane warm deck roof covering |
Specification data - Reinforced bitumen membrane warm roof covering systems
Preparation | |
Horizontal work | IKOpro Bonding Agent.Guidance for specification option: IKOpro Systems Bonding Agent (black) is a specially formulated primer. Enhancing the properties of self- adhesive bitumen roofing membranes, it promotes strong bonds even at temperatures as low as 5°C. S-A membranes only. IKOpro Sprayfast MPP.Guidance for specification option: KOpro Sprayfast MPP (Black, Multipurpose Primer) is a specially formulated high performance bonding primer. It allows the speed of application of the bonding primer to be five times faster than conventional bitumen primers, promoting strong bonds at temperatures as low as 5°C. For self adhesive and torch applied bitumen membranes. |
Skirtings and vertical work | IKOpro Bonding Agent.Guidance for specification option: IKOpro Systems Bonding Agent (black) is a specially formulated primer. Enhancing the properties of self- adhesive bitumen roofing membranes, it promotes strong bonds even at temperatures as low as 5°C. S-A membranes only. IKOpro Sprayfast MPP.Guidance for specification option: KOpro Sprayfast MPP (Black, Multipurpose Primer) is a specially formulated high performance bonding primer. It allows the speed of application of the bonding primer to be five times faster than conventional bitumen primers, promoting strong bonds at temperatures as low as 5°C. For self adhesive and torch applied bitumen membranes. IKOpro Quick Dry Bitumen Primer.Guidance for specification option: IKOpro Quick Dry Bitumen Primer (black) is a fast-drying bitumen priming solution for torch applied bitumen membranes. T-O membranes only. |
Air and vapour control layer | |
Type | IKO Ultra S-A Air and Vapour Control Layer.Guidance for specification option: Self adhesive for combustible substrates S-A VCL (Self-Adhesive) is a high performance vapour barrier for use in adhered IKO Polymeric systems. It is composed of a polyester reinforced aluminium core, coated with a rubber modified, self-adhesive bitumen coating. The membrane is protected on the underside with a release film backing and coated on the top surface with a fine mineral finish. A selvedge of 75mm width, protected with release film, provides a quick means of completing side laps. |
Attachment | Fully bonded. |
Insulation | |
Type | IKO enertherm Gold Insulation, 2400 x 1200 mm.Guidance for specification option: Thickness: 30, 50, 60, 80, 100, 120, 140, 150 mm. Consult literature and insert requirements. IKO enertherm Gold Insulation, 1200 x 1200 mm.Guidance for specification option: Thickness: 30, 40, 50, 70, 80, 100, 120,140 mm. Consult literature and insert requirements. IKO enertherm MW, 60 mm thickness.Guidance for specification option: A dual-density stone wool insulation board. It is used for the thermal insulation in a variety of warm flat roofing system applications where a non-combustible and/ or acoustic insulation solution is required. Width: 1200 mm. IKO enertherm MW, 120 mm thickness.Manufacturer guidanceIKO enertherm GOLD is a 100 % CFC, HCFC or HFC-free insulation board with a rigid polyisocyanurate foam core, clad on both sides with a multi-layer gastight aluminium complex. This high-quality rooftop insulation consists of no fewer than seven layers, combined into a single complex. It is tested under extreme conditions in respect of water absorption, mechanical properties, corrosion resistance and emissivity. |
Fixing | IKOpro PU bonding adhesive.IKOpro Sprayfast IBA. |
Waterproof covering | |
First layer | |
Type | IKO Ultra H-A Underlay.Guidance for specification option: IKO Systems H-A underlays are polyester reinforced bitumen membranes used as underlays within a built up roofing system, The membranes are coated on both sides with self-adhesive bitumen SBS elastomeric coating. They have a fine mineral upper surface with a 75 mm release film selvedge to facilitate rapid installation of lap joints. Size: 1 x 16 m. IKO Ultra H-A DETAILING Underlay.Guidance for specification option: The underside has a self-adhesive bitumen coating for fully bonded and all waterproofing detailing applications. The self-adhesive coating is protected by a release film. Flame-free application. Surface protection from the fine granule finish. Grey in colour. Size: 16 x 1 m |
Attachment | Bonded by heat activation to primed insulation board (laps heat welded). |
Top layer | |
Type | IKO Ultra Life30 Cap Sheet, Black.IKO Ultra Life30 Cap Sheet, Red.Manufacturer guidanceIKO ULTRA LIFE 30 Torch-On Detailing Cap Sheet is a complementary, high performance membrane that is ideal for forming typical details on IKO ULTRA LIFE 30 Flame-Free and Hybrid Systems, with a granular finish on the top surface and finished on the reverse side with a thermofusible film. The base fabric is a polyester/ glass fibre laminate, providing excellent strength, flexibility and dimensional stability. |
Attachment | Fully bonded by touching. |
Detail work | |
Flashings | IKOflash lead-free flashing. |
Skirtings and upstands | IKO Ultra T-F DETAILING Underlay.Guidance for specification option: IKO Systems Torch-Free (T-F) Detailing Underlay is a black polyester reinforced bitumen membrane, used as an underlay within a built up roofing system; the membrane is coated on both sides with a self-adhesive bitumen SBS elastomeric coating. The upper surface is protected with a protective film that facilitates rapid bonding of the waterproofing layers. The self-adhesive coating underside is protected by a release film. Size: 16 x 1 m. IKO Ultra Life30 S-A DETAILING Cap sheet, Black.Guidance for specification option: A complementary, high performance membrane that are ideal for forming typical details on IKO UPXL Flame-Free and Hybrid Systems, with a granular finish on the top surface and a removable release film on the underside. The base fabric is a graphite-treated, polyester/glass fibre laminate and this is coated with SBS self-adhesive modified bitumen, providing excellent strength, flexibility and dimensional stability. Size: 8 x 1 m. IKO Ultra Life30 S-A DETAILING Cap sheet, Red. |
Weight | 5.4 kg/m². Guidance for specification option: This refers to the IKO Ultra Life 30. |
Roll weight | 43.2 kg. Guidance for specification option: This refers to the IKO Ultra Life 30. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Bitumen Polyester |
Literature
Technical Data Sheet (TDS) - IKO ULTRA Life 30 Capsheet

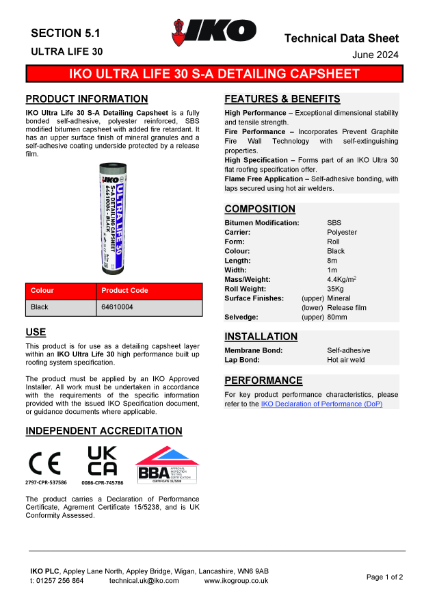

Technical Data Sheet (TDS) - IKO ULTRA Life 30 Self-Adhesive Detailing Capsheet
Brochure - IKO PLC ESG Report July 2023
