Flagon SV

Flagon SV

Soprema UK Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

Plasticized polyvinyl chloride (PVC) roofing membrane for ballasted applications.

Jump to:
+44 (0)330 058 0668 www.soprema.co.uk

Application

– Ballasted with fixed and mobile ballast:

  • Pedestrian roofing and not-accessible roofing.
  • Green roofs.
  • Roof gardens.

Vertical finishing, junction bands.

Description

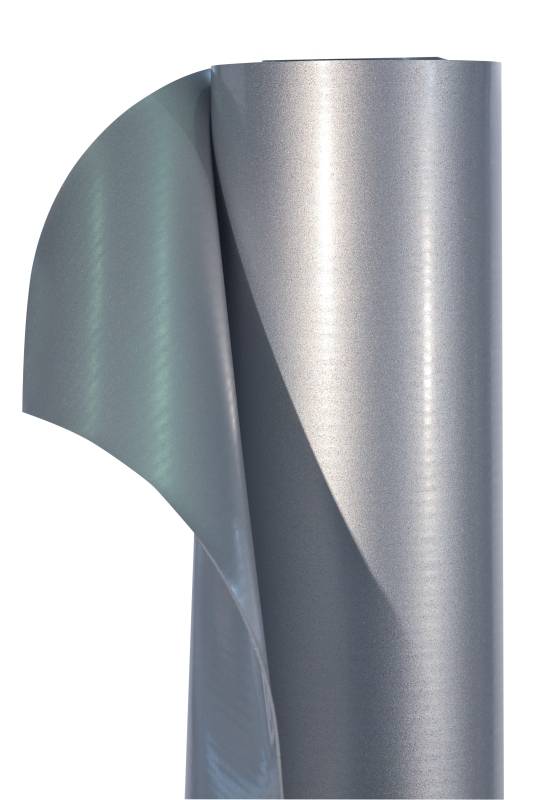

Plasticized polyvinyl chloride (PVC) roofing membrane with glass fibre reinforcement, designed for ballasted applications.

Manufactured by coextrusion or cast process.

Features:

  • Weatherproof and UV resistant.
  • Dimensional stability.
  • Resistant to puncturing.
  • Adaptability to structural movements.
  • Flexibility at low temperatures.

Applications:

– Ballasted with fixed and mobile ballast:

  • Pedestrian roofing and not-accessible roofing.
  • Green roofs.
  • Roof gardens.

Vertical finishing, junction bands.

General information

Features

Weatherproof and UV resistant

Dimensional stability

Resistant to puncturing

Adaptability to structural movements

Flexibility at low temperatures

Material

Plasticized PVC obtained by coextrusion or cast process, with glass fibre reinforcement

Uniclass 2015

Pr_25_57_51_66 Polymeric membranesPrimary

CAWS

J42/10 Warm deck roof covering

J42/110 Warm deck roof covering

J42/120 Inverted roof covering

J42/130 Cold deck roof covering

J42/400 Waterproof membrane

Product range

Single ply polymeric membranes

Specification data - Polymeric membranes

Product Reference

Flagon SV

Thickness

1.2 mm

1.5 kg/m².

1.5 mm

1.8 kg/m².

1.8 mm

2.15 kg/m².

2.0 mm

2.4 kg/m².

2.4 mm

2.9 kg/m².

Colour

Dark grey

Light grey

Standard product features

Material:

Plasticized PVC obtained by coextrusion or cast process, with glass fibre reinforcement.

Roll width:

1.6 m.

Roll length:

  • 1.2 mm-thick: 20 or 25 m.
  • 1.5–2.4 mm-thick: 20 m.

Technical properties:

  • Tensile strength (to BS EN 12311-2): ≥9 N/mm².
  • Elongation to break (to BS EN 12311-2): ≥200%.
  • Tear resistance (to BS EN 12310-1): Longitudinal: >400 N; transversal: >300 N.
  • Impact resistance (to BS EN 12691): 1.2 mm: ≥450 mm; 1.5 mm: ≥800 mm; 1.8 mm: 900 mm; 2 mm: ≥1250 mm; 2.4 mm: ≥1500 mm.
  • Foldability at low temperature (to BS EN 495-5): ≤ -25°C.
  • Hydrostatic pressure resistance (after six hours at 0.5 MPa, to BS EN 1928 method B): Waterproof.
  • Dimensional stability (to BS EN 1107-2): ≤0.1%5.
  • Artificial weathering resistance (UV, to BS EN 1297): No surface cracking.
  • Root resistance (BS EN 13948): No penetration.
  • Static punching resistance (to BS EN 12316): ≥20 kg.

Literature

Flagon PVC Waterproofing Systems

Flagon PVC Waterproofing Systems

Third party certifications

  • 00/3430 : Flagon PVC Single-ply roof waterproofing systems
