Flagon SFc Copper Art Fully Adhered System (PVC)
Verified by manufacturer 18 hours ago
BBA Agrément Certificate
Certificate type
CCPI Product
Certificate type
Single ply fully adhered warm roof system on concrete, with PIR tissue faced insulation and finished with a fully adhered Copper Art PVC membrane with a polyester reinforcement.
Application
Suitable for waterproofing:
- Flat and mono-pitch roofs.
- Curved, barrel and wave form roofs.
- Complex profiles and facades.
Description
Single ply fully adhered warm roof system on concrete substrate. This system is designed using a cold applied bituminous primer with a self adhesive vapour barrier membrane composed of SBS bitumen and a composite aluminium reinforcement, and a PIR glass tissue faced insulation adhered using a single component polyurethane adhesive. The final waterproofing layer is a synthetic waterproofing membrane composed of plasticized PVC and containing copper particles giving it a copper look.
Features and benefits:
- Single component primer.
- High tear resistance waterproofing layer.
- Aesthetic finish.
- BROOF(t4) rated.
- 20 year system warranty.
- UV resistant.
- Flame free application.
- Excellent dimensional stability.
- Easy to weld.
- Fully adhered.
General information
Color | Copper |
Finish | Guidance for specification option: Under side. |
Material | Polyvinyl chloride (PVC) |
Length | 20000 mm Guidance for specification option: 20 m Manufacturer guidance20 m |
Width | 1600 mm Guidance for specification option: 1.65 m Manufacturer guidance1.65 m |
Height | 1.8 mm |
Warranty description | 20 year |
Uniclass | |
CAWS | J42/10 Warm deck roof covering J42/400 Waterproof membrane J42/110 Warm deck roof covering |
SKU Code | unknown |
Specification data - Single layer sheet warm roof covering systems
Classification data | |
System performance | Watertightness, to EN 1928 met. B, pass. |
Preparation | |
Horizontal work | Flagon SFc Copper Art Membrane. |
Skirtings and vertical work | Flagon SV Copper Art. |
Lower protection layer | Polyester fleece. |
Air and vapour control layer | |
Type | Sopravap Stick Alu S 16. |
Attachment | Self adhered to primed deck. |
Insulation | |
Type | Sopratherm G PIR. |
Attachment | Adhered. |
Waterproof covering | |
Type | Flagon Copper Art System. |
Attachment | Adhered. |
Joints | Hot air welded laps. |
Accessories | Not required. Soprema RWO. Soprema Metal Edge Trims. |
Execution | Works to be completed by Soprema Approved Installers only. |
System completion | Final inspection by Soprema UK. |
Sheet thickness | 1.8 mm. |
Sustainability data
Material | Polyvinyl chloride (PVC) |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 2 |
Product certifications
Certification type

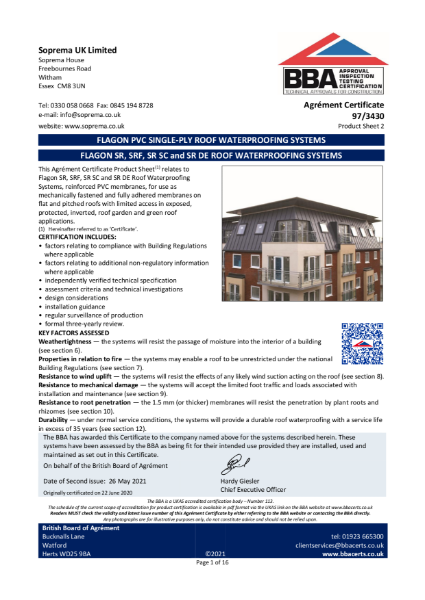

BBA Agrément Certificate
Flagon SFc, SFb, SV and Sb Roof Waterproofing Membranes - Fully bonded and loose-laid and ballasted reinforced PVC membranes, for use on flat and pitched roofs with limited access in exposed, protected, inverted, roof garden and green roof applications.
CCPI Product
SOPREMA Single Ply Membrane CCPI
Literature
Flagon PVC System
Case studies

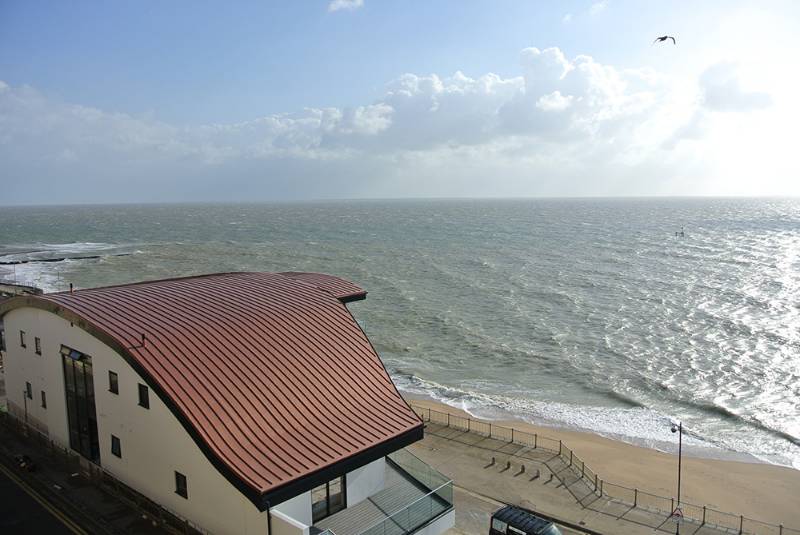

Copper Art Enhances Coastal Conservation
Similar products from Soprema UK

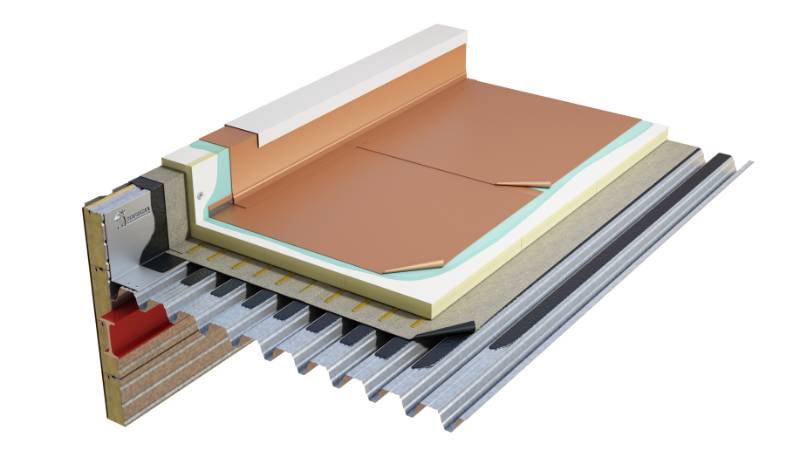

Flagon SFc Copper Art- Single ply fully adhered warm roof system with Copper look (metal deck)

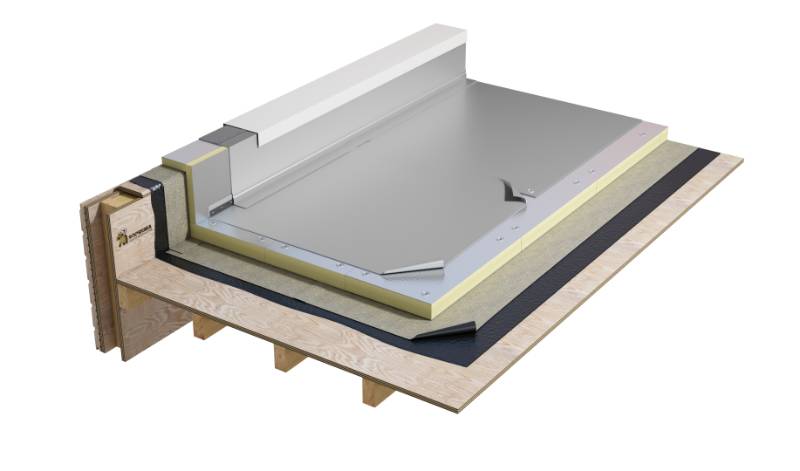

Flagon SR Silver Art Glossy - Single ply mechanically fixed warm roof system with silver look
