FirePro® Flex Seal Linear Joint - Rock Wool Fire Seal
Verified by manufacturer 6 days ago

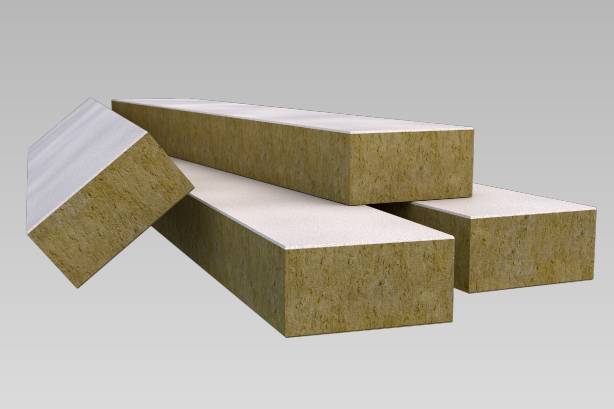

FirePro® Flex Seal Linear Joint is a fire-stopping solution capable of accommodating high levels of movement in building services and structural joints.
Application
Suitable for fire stopping in vertical and horizontal linear joints up to 200 mm.
Description
FirePro® Flex Seal Linear Joint has been tested as a linear joint seal to BS EN 1366-4: 2021 and has been classified to BS EN 13501-2: 2023 for fire resistance of up to 120 minutes, subject to the application.
The product can be installed horizontally or vertically and is suitable for linear joint widths up to 200mm. FirePro Flex Seal Linear Joint has replaced FirePro SoftSeal Joint Seal as the new EN-tested solution.
Features and benefits:
- Tested in accordance with EN 1366-4: 2021.
- Classified in accordance with EN 13501-2: 2023.
- Certified by UL, certification number: UL-EU-01351-EN.
- Non-combustible stone wool core.
- Pre-coated with flex seal coating.
- Suitable for vertical and horizontal joint applications.
General information
Color | Yellow White |
Finish | Coated |
Material | Rock mineral wool Stone wool |
Shape | Rectangle |
Length | 1200 mm |
Width | 200 mm |
Height | 100 mm |
Uniclass | |
CAWS | P12/16 Linear gap sealing P12/160 Linear gap sealing |
Specification data - Mineral wool fire-stopping
Classification data | |
Material | |
Third-party certification | Certified by UL, certification number: UL-EU-01351-EN. |
Type | Rigid. |
Facing | Ablative-coated. |
Fire performance | Fire resistance: EI120 to BS EN 13501-2. Guidance for specification option: Up to two hours of resistance. |
Sound insulation rating | 48 (-1; -3) Rw (C; Ctr). Guidance for specification option: Tested in a double layered plasterboard internal partition. 300 x 300 mm square framed and lined opening. Single 100 mm FirePro Flex Seal set within depth of opening. |
Dimensions | 1200 x 200 x 100 mm. |
Coating | Single sided. Guidance for specification option: For horizontal applications. Double sided. Guidance for specification option: For vertical applications. |
Joint movement | +/- 25%. |
Sustainability data
Material | Rock mineral wool Stone wool |
Literature
FirePro® Flex Seal Linear Joint - Product Data Sheet
