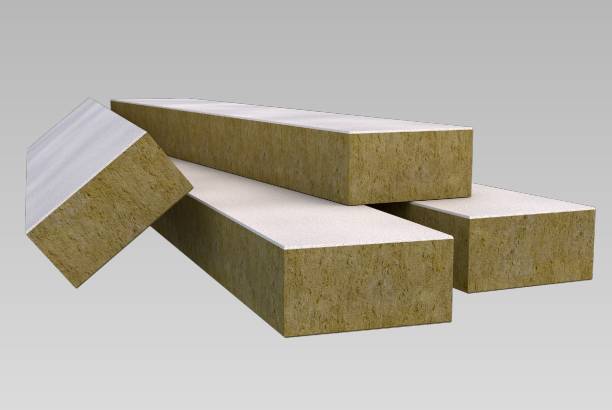

FirePro® Flex Seal Coated Strip - Rock Wool Penetration Seal

Verified by manufacturer 14 days ago

ROCKWOOL Ltd

FirePro® Flex Seal Coated Strip is a flexible fire-stopping penetration seal for service applications. Engineered to accommodate structural movement.

Jump to:
BOS
+44 (0)1656 862621 Website

Application

Suitable for use in 1000 x 1000 mm service openings.

Description

FirePro® Flex Seal Coated Strip is designed for penetration seals within buildings and accommodates movement in service penetrations where flexibility and fire performance are required.

FirePro Flex Seal Coated Strip has been tested as a penetration seal to BS EN 1366-3: 2021 and has been classified for fire resistance periods of up to 120 minutes, subject to the application. FirePro Flex Seal Coated Strip can be used as a standalone penetration seal or as part of the CB50 coated batt seal. FirePro Flex Seal Coated Strip has replaced FirePro SoftSeal Coated Strip as the new EN-tested solution.

Features and benefits:

  • Tested in accordance with EN 1366-3: 2021 +A1:2024.
  • Classified in accordance with EN 13501-2: 2023.
  • Certified by UL, certification number: UL-EU-01351-EN.
  • Non-combustible stone wool core.
  • Pre coated with flex seal coating.

General information

Color

White

Yellow

Finish

Coated

Material

Rock mineral wool

Stone wool

Shape

Rectangle

Length

1200 mm

Width

200 mm

Height

100 mm

Uniclass

Pr_25_80_81_51 Mineral wool fire-stoppingPrimary
Pr_25_80_81_29 Flexible intumescent gap seals

CAWS

P12/16 Linear gap sealing

P31/40 Sealing around services

P12/160 Linear gap sealing

Specification data - Mineral wool fire-stopping

Classification data

Material

-

Third-party certification

Certified by UL, certification number: UL-EU-01351-EN.

Type

Rigid.

Facing

Ablative-coated.

Guidance for specification option:

Flex seal coating double sided.

Fire performance

Fire resistance: EI 120 to BS EN 13501-2.

Guidance for specification option:

Up to two hours fire resistance.

Sound insulation rating

48 (-1; -3) Rw (C; Ctr).

Guidance for specification option:

Tested in a double layered plasterboard internal partition. 300 x 300 mm square framed and lined opening. Single 100 mm FirePro Flex Seal set within depth of opening.

Dimensions

1200 x 200 x 100 mm.

Sustainability data

Material

Rock mineral wool
Stone wool

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

FirePro® Flex Seal Coated Strip - Product Data Sheet

FirePro® Flex Seal Coated Strip - Product Data Sheet
