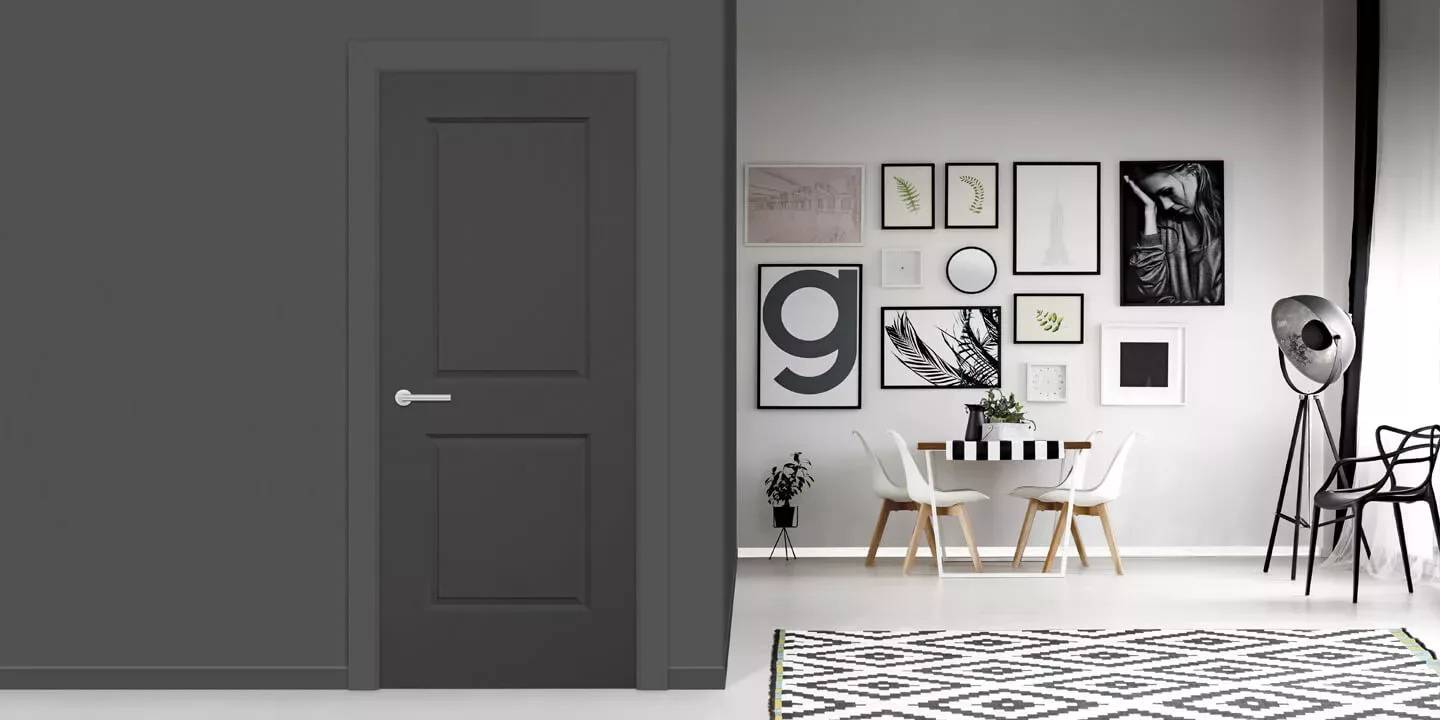

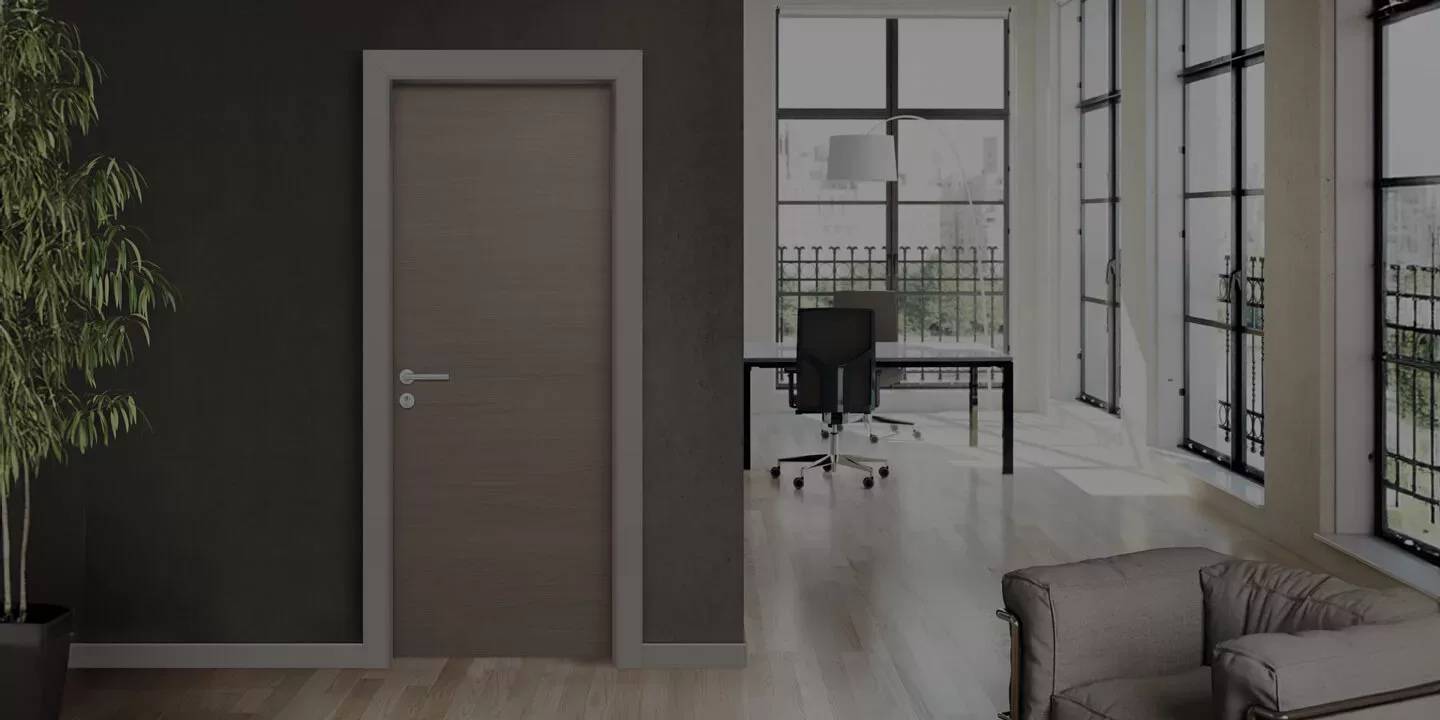

Fire Rated PAS 24 Flat Entrance Doorset – Modulo
Verified by manufacturer 1 day ago
British Woodworking Federation
Certificate type
A PAS 24 and Certifire certified flat entrance doorset with a wide range of finishing options.
Application
Suitable for various applications including residential, hotels, commercial and healthcare institutions.
Description
Modulo Front Entrance Doorsets offer design options to suit your requirements, including multiple door leaf finishes, fire-rated options and enhanced security.
Modulo doorsets can be installed in standard fire-rated wall constructions and have significant fire-stopping and wall thickness flexibility.
Features and benefits:
- Short lead times.
- Quick-fit system.
- Adjustable architrave.
- Fire-rated options.
- Wide range of finish options.
- Available in various sizes.
- DDA compliant.
- Certifire certified.
- PAS 24 security rated.
General information
Color | Beige Black Bronze Copper Cream |
Finish | Laminated Painted Veneered |
Material | Timber |
Shape | Rectangle |
Length | Bespoke |
Width | 726 mm 762 mm 792 mm 810 mm 826 mm |
Height | 1981 mm 2040 mm Bespoke |
Warranty description | Two year |
Uniclass | |
CAWS | L20/55 Doorsets L20/410 Wood flush doorsets |
Specification data - Wood doorsets
Classification data | |
Configuration | Single-leaf, single-action. |
Doorset size | 726 x 2040 mm. 762 x 1981 mm. 792 x 2040 mm. 810 x 1981 mm. 826 x 2040 mm. 838 x 1981 mm. 861 x 1981 mm. 892 x 2040 mm. 914 x 1981 mm. 926 x 2040 mm. |
Performance | |
Fire resistance | |
Integrity | E 30 minutes. |
Insulation | I 30 minutes. |
Smoke leakage | Sa. Guidance for specification option: Single and double doors available with smoke rating included as standard. |
Acoustic performance | To BS EN ISO 10140-2, up to 30 dB. Guidance for specification option: Single doorset only. |
Thermal | To BS EN ISO 10077-1, 2.0 W/m²K. Guidance for specification option: ModuCore BB (44 mm). |
Intruder resistance | |
Minimum requirement | To PAS 24. |
Application | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Conformity | Certification by accredited third-party certification body. Type testing not permitted. |
Accessibility | Manufacturer guidanceDDA compliant door widths and hardware is available. Consult manufacturer’s literature for details. |
Frame | |
Material | Hardwood. Manufacturer guidancePAS24 Note: Minimum frame width is 100 mm. Frame material cannot be changed. |
Species | Oak. |
Threshold | 15 mm. Guidance for specification option: Hardwood. Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Perimeter seals or inserts | Fire and smoke seal. |
Finish | Ready to paint. Laminate, light oak. Laminate, mid oak. Laminate, slate grey. Laminate, chalk white. Bespoke. Guidance for specification option: Consult manufacturer for details. |
Frame accessories | Not required. Extension linings. Quadrant chips. |
Door leaf | |
Thickness | 44 mm. |
Core | Solid core. |
Lippings | ABS decorative edging to the top and sides. |
Perimeter seals | Not required. Acoustic drop down seal. |
Finish | Ready to paint. Laminate, chalk white. Laminate, light oak. Laminate, mid oak. Laminate, slate grey. Bespoke. Guidance for specification option: Consult manufacturer for details. |
Hardware | Hinges, lock and lever handle. Manufacturer guidanceRefer to manufacturer's literature for details. |
Architraves | |
Material | Not required. Medium-density fibreboard. Manufacturer guidancePAS24 Note: Architraves are not mandatory. |
Finish | Ready to paint. Laminate, light oak. Laminate, mid oak. Laminate, slate grey. Laminate, chalk white. Bespoke. Guidance for specification option: Consult manufacturer for details. |
Accessories | Not required. Closer. Cylinder. Door knocker. Door stop. Door viewer. Kickplate. Letterplate. Security chain. Signage. Manufacturer guidanceRefer to manufacturer's literature for details. |
Third party accreditation | Certifire certified. |
Sustainability data
Material | Timber |
Product certifications
British Woodworking Federation
British Woodworking Federation
Literature
Literature type
Internal Doorsets Brochure
Datasheet
