Fire Microphone Single Zone
Verified by manufacturer 8 months ago

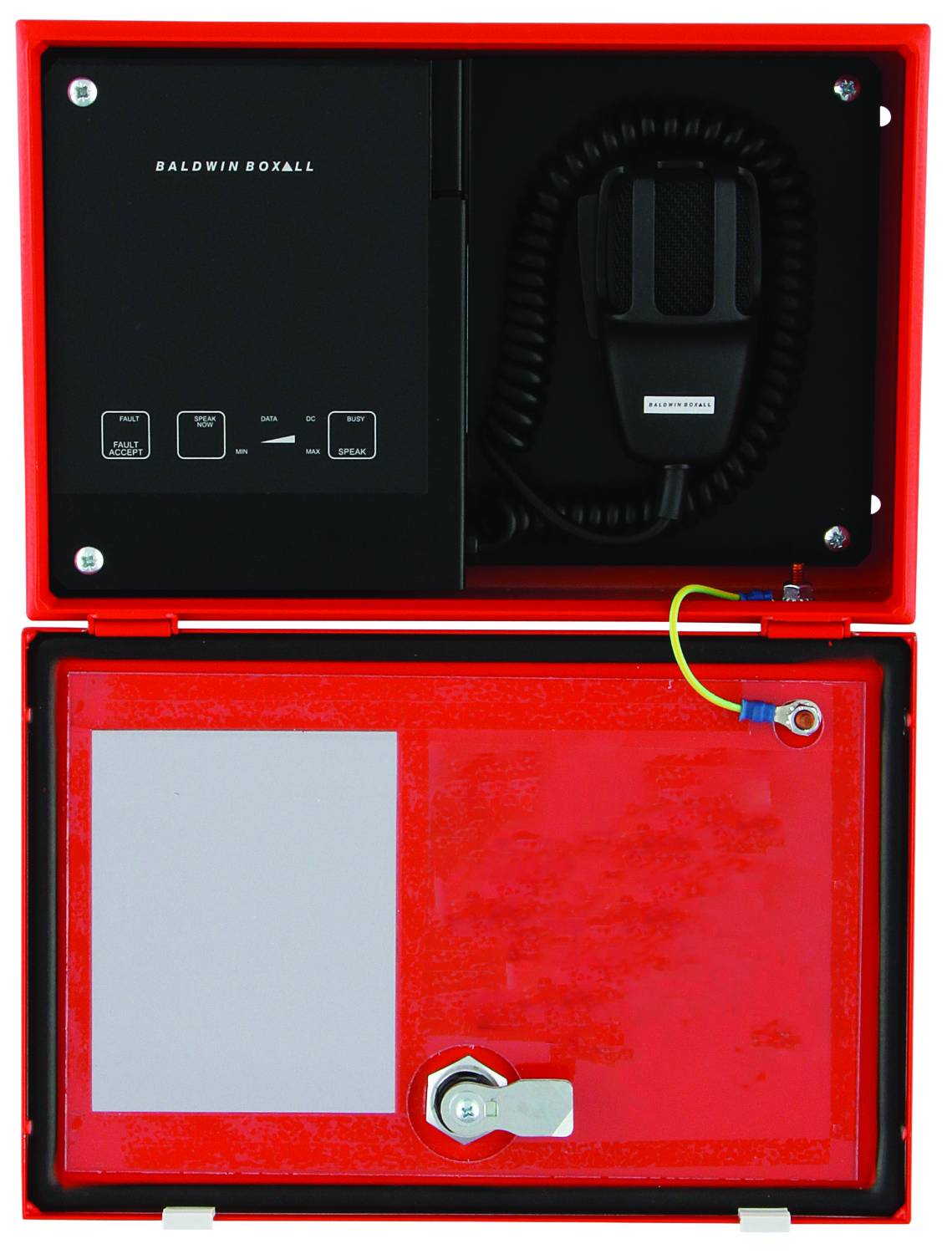

The BFM401 single zone microphone is a fully monitored emergency fire microphone, suitable for installation on a VIGIL voice alarm system.
Application
Suitable for installation on a VIGIL voice alarm system.
Description
The microphone can be set to connect to the voice alarm system via RS485 or a parallel hard-wired connection. The unit is housed in a sealed IP66 rated lockable steel enclosure. The fist microphone can be set for either monitored or unmonitored use during configuration.
Features and benefits:
- Single zone, multi zone microphones communicate with the main control system via an RS485 communication link.
- Zone select buttons and all call button.
- Six core fire rated cable.
General information
Color | Red |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | 82 mm |
Width | 300 mm |
Height | 200 mm |
Warranty description | Seven year |
Uniclass | |
CAWS | W53/115 Emergency voice communication systems |
SKU Code | BFM401 |
Specification data - Voice alarm emergency microphones
Classification data | |
Standard | To BS EN 54 and BS 5839 Part 8: 2008. |
Control features | Single zone. |
Connection ports | Serial. Parallel. |
Enclosure | |
Colour | Red. |
Ingress protection (minimum) | IP66. |
Mounting method | Surface. Flush. Rack. |
FrequencyResponse | 150 Hz—5 kHz. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2017 | 1 |
 IFC | - | 1 |
