BMS8 Voice Alarm Control Microphone Termination Box
Verified by manufacturer 5 months ago
Wall mounted box for microphone connection to the VIGIL voice alarm or public address system.
Application
Microphone termination box designed for wall mounting - single gang.
Description
The BMS8 is a voice alarm control microphone termination box.
Features and benefits:
- Complies to EN54-16.
- Complies to BS 5839-8.
- Surface mounting unit - singe gang.
- RJ45 microphone local connection.
- For BDM400 series microphones and BVRDTSM.
- 9 x Site Wiring Screw Terminations (0.2—4.0 mm² (30—12 AWG) solid cable / 0.2-2.5 mm²(30—12 AWG) stranded cable).
- Dimensions (H x W x D): 85 x 85 x 50 mm.
- Seven year warranty.
General information
Color | White |
Finish | Powder-coated |
Material | Steel Plastic |
Shape | Square |
Length | 85 mm |
Width | 85 mm |
Height | 50 mm |
Warranty description | Seven year |
Uniclass | |
CAWS | W53/115 Emergency voice communication systems |
Specification data - Voice alarm emergency microphones
Standard | To BS EN 54-16 and BS 5839: part 8. |
Microphone | Guidance for specification option: For BDM400 series microphones and BVRDTSM. |
Connection ports | RJ45. |
Enclosure | |
Material | Steel front plate and plastic back box. |
Colour | White. |
Mounting method | Wall mount - single gang. |
Finish | Powder-coated. |
Height | 50 mm. |
Width | 85 mm. |
Length | 85 mm. |
Life expectancy | 15 year. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Similar products from Baldwin Boxall Communications Ltd

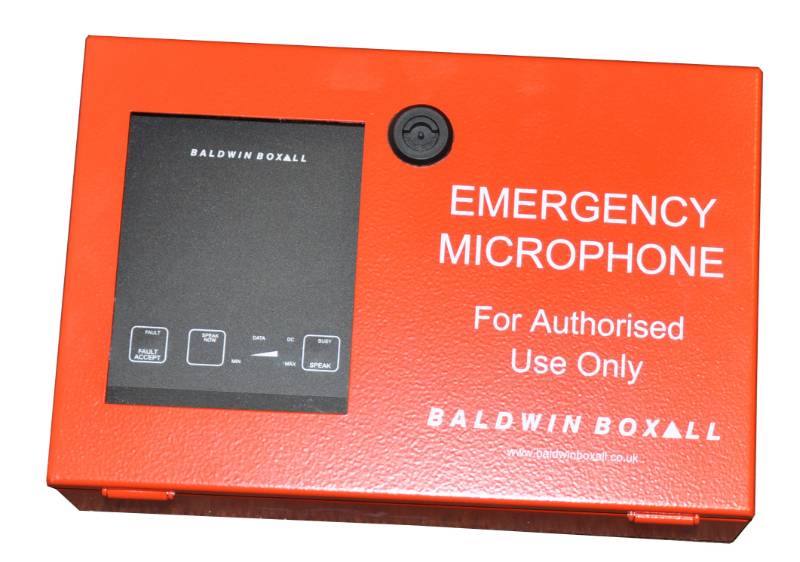

Emergency Fire Microphone

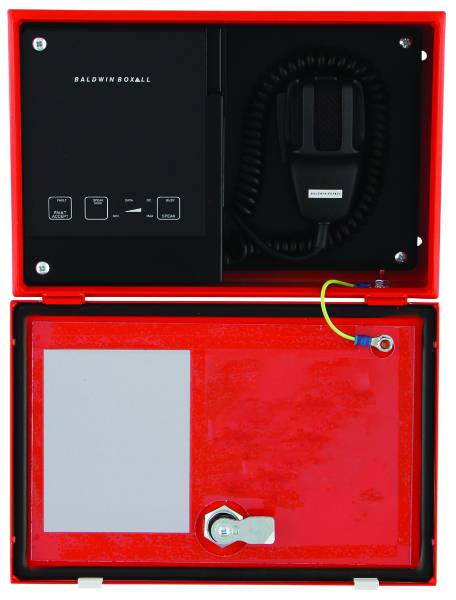

Fire Microphone Single Zone
