Fineo Heritage - Vacuum Insulating Glazing Units
Verified by manufacturer 8 days ago
FINEO Heritage Modern 8
FINEO Heritage Modern 8
Vacuum-insulating, slim profile glazing units.
Application

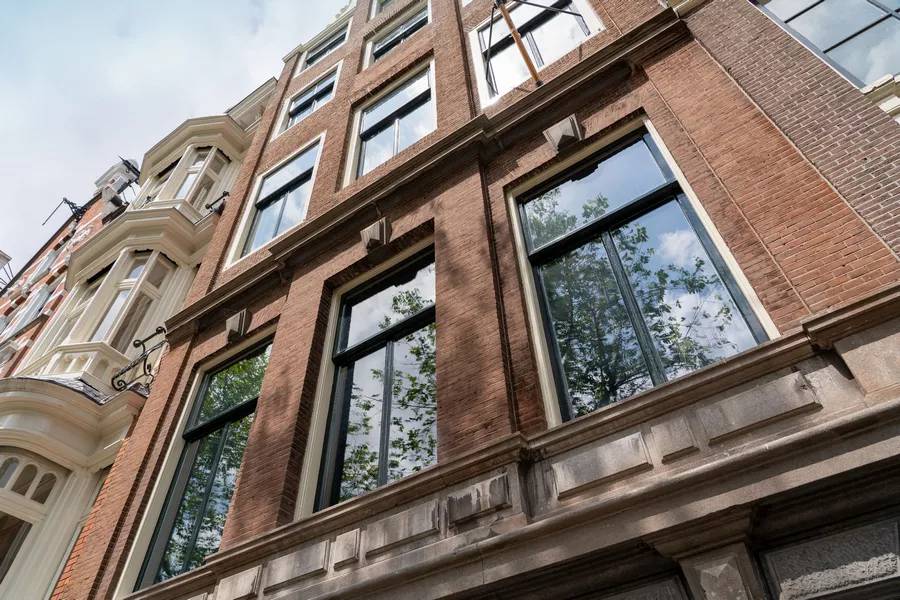

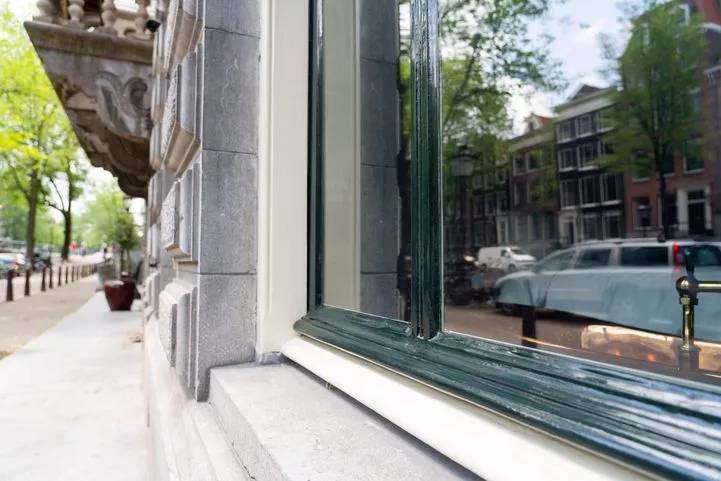

Suitable for glazing applications and particularly for heritage applications in historic buildings and homes.
Description
Vacuum-insulating, slim profile glazing units. The Heritage range offers a look-alike solution of the original glazing in heritage, historic buildings or period houses. Choose from a series of monumental glasses to match the historic character of the facade.
Features and benefits:
- An appearance similar to monolithic glass.
- No vacuum evacuation port.
- 20 mm grid micro-pillars.
- Suitable for retrofitting into existing windows.
- U-value = 0.7 W/m²K regardless of the inclination (e.g. sloped or roof glazing).
- Designed to perform for several decades.
- Slim design providing more light comfort inside.
- High performance solar control coating.
- Lower energy consumption and emissions.
- Increased soundproofing.
- Reduced traffic noise.
- Lead-free and 100% recyclable.
- Blocks 99% of UV rays.
- Reduces discoloration of interior furniture.
General information
Color | Clear Guidance for specification option: Neutral. |
Finish | Glazed |
Material | Glass |
Shape | Rectangle Square Other |
Length | 200 mm 2300 mm 2500 mm |
Width | 200 mm 1400 mm 1600 mm |
Height | 11.4 mm 11.3 mm 11.5 mm 13.0 mm Manufacturer guidanceThickness. |
Warranty description | 20 year |
Uniclass | |
CAWS | L10/310 Steel windows L10/15 Wood windows L10/330 Aluminium windows L10/400 Composite windows L10/33 Proprietary windows L10/20 Steel windows L10/390 Proprietary windows L10/10 Wood windows L10/210 Wood windows |
Specification data - Insulated glass units (IGUs)
General requirements | Glass generally. |
Standard | To BS EN 410 and EN 673. |
Third-party certification | European Technical Assessment. |
Pane arrangement | Manufacturer's standard. |
Overall thickness | 11.4 mm. |
Performance requirements | |
Fire performance | |
Integrity | Manufacturer's standard. |
Insulation | Manufacturer's standard. |
Radiation | Manufacturer's standard. |
Light | To EN 410, transmission: 78%; reflection: 13% (external), 14% (internal). Manufacturer guidanceThis data is calculated using spectral measurements compliant with standards EN 410 and ISO 9050 (1990). Emissivity is measured as per standards EN 673 (Annex A) and EN 12898. |
Solar control | G-value: 0.57. Manufacturer guidanceThis data is calculated using spectral measurements compliant with standards EN 410 and ISO 9050 (1990). Emissivity is measured as per standards EN 673 (Annex A) and EN 12898. |
Thermal insulation | 0.7 W/m²K. Manufacturer guidanceThis data is calculated using spectral measurements compliant with standards EN 410 and ISO 9050 (1990). The U glass-value is calculated according to standard EN 673. |
Sound attenuation | To EN ISO 10140, Rw (C;Ctr), 39 (-2;-4) dB. Guidance for specification option: Rw+Ctr: 35 dB. Manufacturer guidanceThese sound reduction indexes correspond to a FINEO sample measuring 1.23 x 1.48 m as per EN ISO 10140-3. |
Impact resistance | Manufacturer's standard. |
Security | Manufacturer's standard. |
Unit build-up | |
Inner pane | |
Glass type | Insulating glass. |
Outer pane | |
Glass type | Insulating glass. |
Cavity space fill | Vacuum. |
Edge profile | Manufacturer's standard. |
Overall size | Manufacturer guidanceThe maximum dimensions depend on climatic conditions; consult manufacturer for more details and insert requirements.
|
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Belgium |
Material | Glass |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
