Fig. 116 Ball Valve
Verified by manufacturer 14 days ago
DN15: Fig.116
DN15: Fig.116

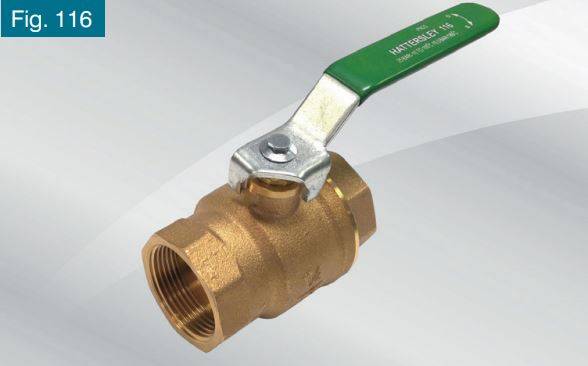

A bronze threaded ended, lever operated ball valve (Fig. 116) and extended lever variant option (Fig. 116EXT).
Description
A bronze threaded ended, lever operated ball valve (Fig. 116) and extended lever variant option (Fig. 116EXT).
Features and benefits:
- Robust design for a long and trouble free service life.
- Light and compact for easy installation.
- 90° lever operation for simple use.
- Full bore design to facilitate optimal flow rates with minimum turbulence.
- Tight shut-off.
General information
Color | Yellow Guidance for specification option:
Green Guidance for specification option: PVC lever cover. Silver Guidance for specification option: Zinc plated mild steel lever and screw. Chrome plated brass DZR ball. Fig: 116EXT: Aluminium extension housing. |
Material | Bronze Guidance for specification option: Body and seat retainer. |
Uniclass | |
CAWS | S90/625 Ball valves S90/625 Ball valves |
Specification data - Ball valves
Material | Body and seat retainer: Bronze, Ball, stem and gland nut: DZR Brass CW602N, Lever and screw: Mild steel, Lever cover: PVC, Seat ring and packing: PTFE.Guidance for specification option:
|
Connections | UK end connection to BS EN 10226-2 Taper Thread and US end connection to ANSI B1.20.1 Taper Thread. |
Finish | Ball: Chrome plated, Lever and screw: Zinc plated.Guidance for specification option: Brass stem extension to BS EN 12164 CW602N. |
Third-party certification | WRAS Approved. |
Inlets/outlets diameter | DN15. |
Dimensions | 57 x 15 x 54 x 92 mm. Manufacturer guidanceAll dimensions are nominal (A x B x C x D). |
Weight | 0.24 kg. |
Operator | Lever. Guidance for specification option: Quarter turn. |
PressureRange | Temperature: -10 to +100°C: 25 bar, 186°C: 10.5 bar. |
Sustainability data
Material | Bronze Guidance for specification option: Body and seat retainer. |
Recyclability | Recycle locally |
Expected Life | 20 year |
