Fig. 100 Ball Valve

Verified by manufacturer 4 months ago

DN8: Fig.100

Hattersley Variant:

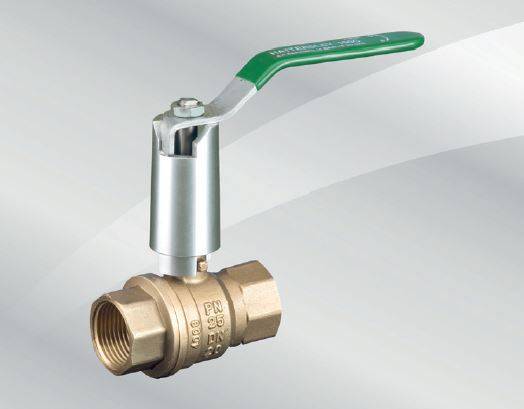

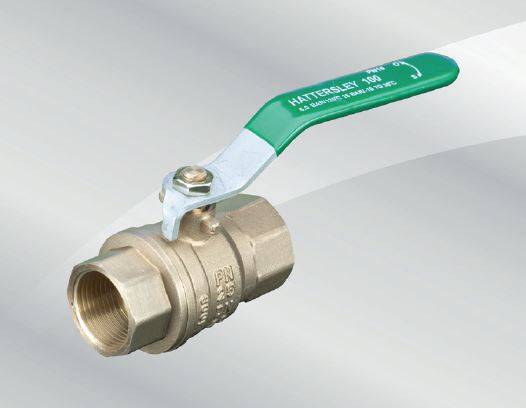

A threaded DZR, lever operated ball valve (Fig. 100) and extended lever variant option (Fig. 100EXT).

Jump to:
Request BIM
+44 (0)1473 277300 Website

Application

Suitable for low temperature hot water (LTHW), chilled and wholesome (potable water) services.

Description

A threaded DZR, lever operated ball valve (Fig. 100) and extended lever variant option (Fig. 100EXT).


Features and benefits:

  • Dezincification resistant (DZR).
  • Light, compact and easy to install and operate.
  • Improved leak protection.
  • Resistant to damage during installation.
  • Sizes from DN8 to DN50.
  • WRAS Approved.

General information

Color

Yellow

Guidance for specification option:

  • Brass valve body, ball, bonnet, stem and packing nut.
  • Fig. 100EXT: Brass nickel plated extension stem inner.

Green

Guidance for specification option:

PVC lever sleeve.

Silver

Guidance for specification option:

  • Steel plated hex-nut.
  • Steel dacromet plated lever.
  • Chrome plated DZR brass ball.
  • Fig. 100EXT: Aluminium outer stem.

Material

Brass

Guidance for specification option:

  • Body, packing nut, ball, bonnet and stem.
  • 100EXT: Extension stem inner.

Uniclass

Pr_65_54_95_06 Ball valvesPrimary

CAWS

S90/625 Ball valves

S90/625 Ball valves

SKU Code

Fig. 100, Fig. 100EXT

Product range

Public Health

Specification data - Ball valves

Classification data

Material

Body, ball, bonnet and stem: DZR Brass CW602N, Packing nut: Brass CW617N, Lever sleeve: PVC, Seats and packing gland: PTFE, O-ring: Rubber EPDM.

Guidance for specification option:

  • PTFE: WRAS approved polytetrafluoroethylene.
  • EPDM: WRAS approved Ethylene Propylene Diene Monomer.

Connections

UK end connection to BS EN 10226-2:2005 and US end connection to ANSI B1.20.1:1983.

Guidance for specification option:

Formerly BS21 taper.

Finish

Hex-nut: Steel plated, Lever: Steel dacromet plated, Ball: Chrome plated.

Third-party certification

WRAS Approved.

Inlets/outlets diameter

DN8.

Dimensions

46 x 12 x 89 x 41 mm.

Manufacturer guidance

All dimensions are nominal (L x L1 x L2 x H).

Weight

152 g.

Operator

Lever.

Guidance for specification option:

Quarter turn.

Extended lever.

Guidance for specification option:

Quarter turn.

PressureRange

Temperature: -10 to +100°C: 25 bar, 120°C: 21.8 bar.

Sustainability data

Material

Brass

Guidance for specification option:

  • Body, packing nut, ball, bonnet and stem.
  • 100EXT: Extension stem inner.

Recyclability

Recycle locally

Expected Life

20 year

Literature

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100-DN8

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100-DN8

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100-DN10

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100-DN10

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100-DN15

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100-DN15

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100-DN20

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100-DN20

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100-DN25

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100-DN25

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100-DN32

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100-DN32

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100-DN40

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100-DN40

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100-DN50

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100-DN50

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100EXT-DN15

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100EXT-DN15

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100EXT-DN20

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100EXT-DN20

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100EXT-DN25

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100EXT-DN25

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100EXT-DN32

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100EXT-DN32

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100EXT-DN40

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100EXT-DN40

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100EXT-DN50

Fig. 100 Ball Valve - TM65-HATTERSLEY-FIG. 100EXT-DN50
