Fig. 100 Ball Valve
Verified by manufacturer 14 days ago
DN8: Fig.100
DN8: Fig.100

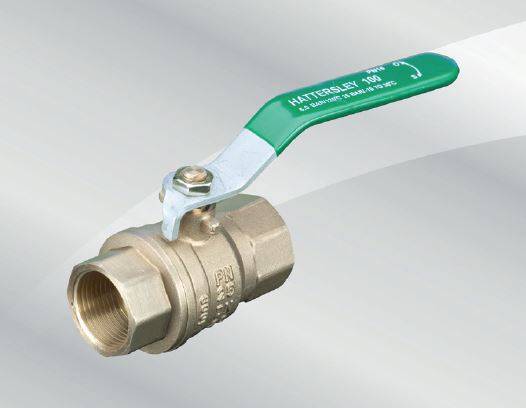

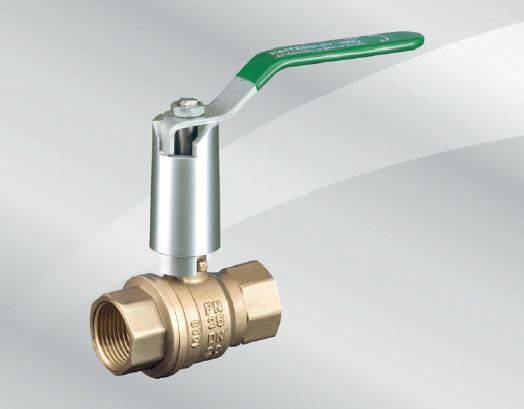

A threaded DZR, lever operated ball valve (Fig. 100) and extended lever variant option (Fig. 100EXT).
Application
Suitable for low temperature hot water (LTHW), chilled and wholesome (potable water) services.
Description
A threaded DZR, lever operated ball valve (Fig. 100) and extended lever variant option (Fig. 100EXT).
Features and benefits:
- Dezincification resistant (DZR).
- Light, compact and easy to install and operate.
- Improved leak protection.
- Resistant to damage during installation.
- Sizes from DN8 to DN50.
- WRAS Approved.
General information
Color | Yellow Guidance for specification option:
Green Guidance for specification option: PVC lever sleeve. Silver Guidance for specification option:
|
Material | Brass Guidance for specification option:
|
Uniclass | |
CAWS | S90/625 Ball valves S90/625 Ball valves |
Product range |
Specification data - Ball valves
Material | Body, ball, bonnet and stem: DZR Brass CW602N, Packing nut: Brass CW617N, Lever sleeve: PVC, Seats and packing gland: PTFE, O-ring: Rubber EPDM.Guidance for specification option:
|
Connections | UK end connection to BS EN 10226-2:2005 and US end connection to ANSI B1.20.1:1983.Guidance for specification option: Formerly BS21 taper. |
Finish | Hex-nut: Steel plated, Lever: Steel dacromet plated, Ball: Chrome plated. |
Third-party certification | WRAS Approved. |
Inlets/outlets diameter | DN8. |
Dimensions | 46 x 12 x 89 x 41 mm. Manufacturer guidanceAll dimensions are nominal (L x L1 x L2 x H). |
Weight | 152 g. |
Operator | Lever. Guidance for specification option: Quarter turn. Extended lever. Guidance for specification option: Quarter turn. |
PressureRange | Temperature: -10 to +100°C: 25 bar, 120°C: 21.8 bar. |
Sustainability data
Material | Brass Guidance for specification option:
|
Recyclability | Recycle locally |
Expected Life | 20 year |
