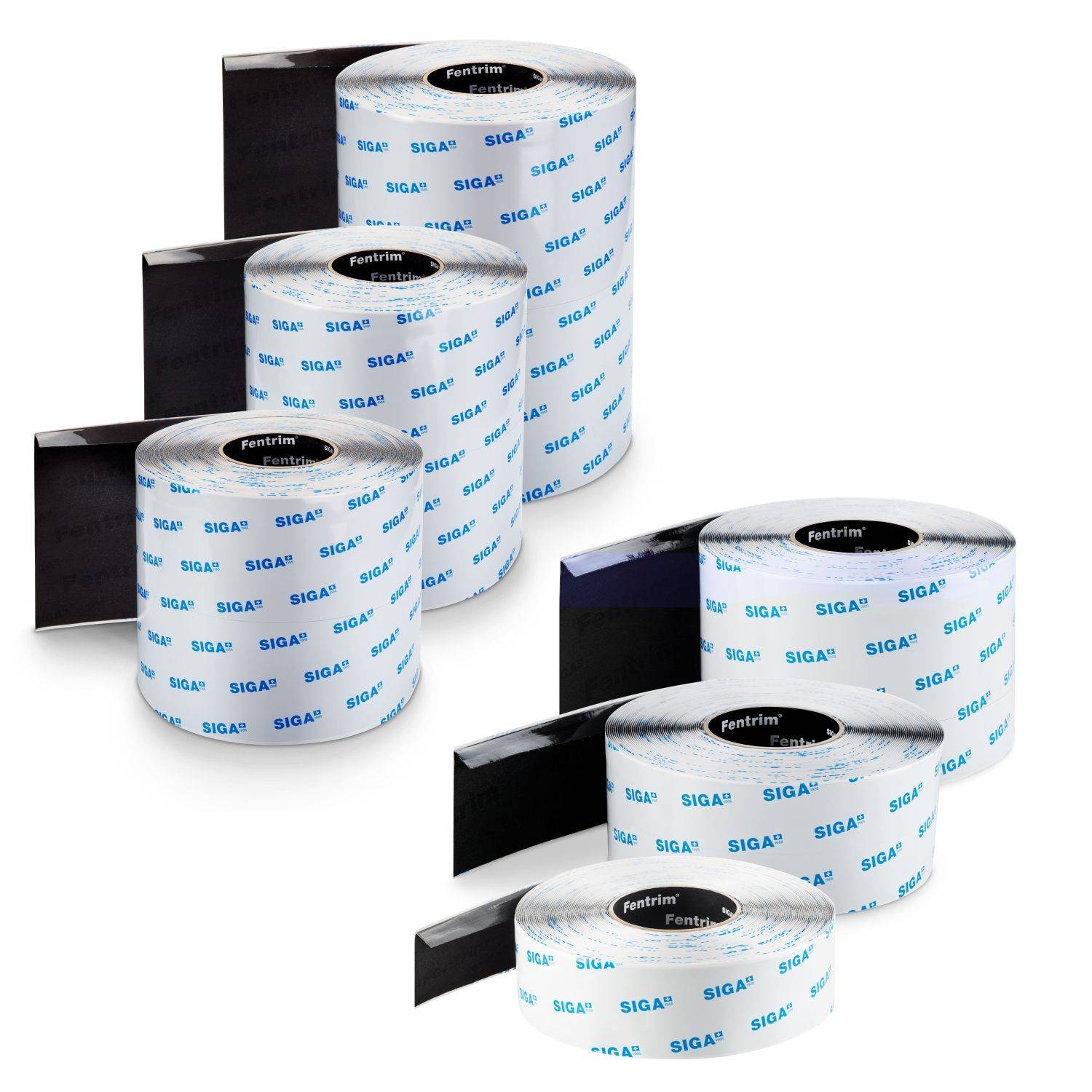

Fentrim® Window Sealing Tape (EPDM-Replacement)
Verified by manufacturer 1 month ago
Fentrim® 2
Fentrim® 2
BBA Agrément Certificate
Certificate type
Single-sided, robust and flexible high-performance adhesive tape.
Application
Suitable for permanent secure sealing of component joints in solid and metal structures.
Description
Single-sided, robust and flexible high-performance adhesive tape.
The range comprises:
- Fentrim® 2: Plaster-compatible, pre-folded adhesive tape for outdoor connection with windows and doors, proof against driving rain.
- Fentrim® 20: Plaster-compatible, pre-folded adhesive tape for airtight connection with windows and doors indoors.
- Fentrim® IS 2: Pre-folded adhesive tape for outdoor connection with windows and doors, proof against driving rain.
- Fentrim® IS 20: Pre-folded adhesive tape for airtight connection with windows and doors indoors.
- Fentrim® 2 50/85: Pre-folded adhesive tape for connection to solid external structures, proof against driving rain, can be plastered over.
- Fentrim® 20 50/85: Pre-folded adhesive tape for airtight connection to solid indoor structures, can be plastered over.
- Fentrim® 330 grey: Robust adhesive tape for airtight connection of wall, window and façade elements to floors indoors.
Features and benefits:
- High permanent adhesive strength.
- Non-drying and non-embrittling without caoutchouc, resin or solvent.
- Can reliably and durably follow structural movements.
General information
Color | Black White Grey |
Material | Polyolefin |
Length | 25000 mm |
Width | 75 mm 100 mm 150 mm 200 mm 250 mm |
Height | 1 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | K11/795 Wall lining on metal framing H20/155 Sheet cladding (attached to timber battens) H20/150 Sheet cladding (attached to metal support systems) H20/10 Sheet cladding G10/20 Steel framing system G10/150 Steel framing system K11/485 Wall sheathing J40/297 Waterproofing/ damp-proofing/ gas-retardant membrane H11/772 Curtain walling joint assembly sealants L10/810 Sealant joints L20/820 Sealant joints L10/75 Sealant joints L20/80 Sealant joints |
Specification data - Polymer-based adhesive sealant tapes
Material | Special film/ fleece combination constructed of polyolefin (PO). |
Bond | SIGA high-performance adhesive. |
Fire performance | |
Reaction to fire | Class E (to EN ISO 11925-2). |
Air permeability | To EN 12114: Joint permeability coefficient (a-value): <0.1 m³/(hmdaPA2/3); linear reference air permeability (Q1000-value): ≤0.25 m³/(mh). |
Size | 0.1 x 25 m.0.15 x 25 m.0.2 x 25 m. |
Colour | Black. |
Roll length | 25 m. |
Temperature resistance | -40 to +100°C. |
TensileStrength | Maximum to EN 12311-1: Lengthwise: 210 N/50 mm; crosswise: 150 N/50 mm. |
Elongation | At maximum tensile strength to EN 12311-1: lengthwise: 70%; crosswise: 100%. |
Sd value | 2 m (to EN 1931). |
Water resistance | Driving-rain-proof (Pmax): To EN 1027: 600 Pa; EN 12208: Class 9A. |
Third party accreditation | BBA Agrément Certificate - 16/5378. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Switzerland |
Country of product manufacture | Switzerland |
Material | Polyolefin |
Manufacturing plant location | |
Expected Life | Lifetime |
Third party certifications
BBA Agrément Certificate
BBA Certificate Fentrim
