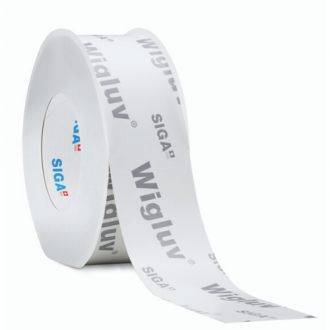

Wigluv® (External Airtightness Tape) - Airtight Tape

Verified by manufacturer 13 days ago

Wigluv® 60

SIGA Cover AG Variant:
Third party certifications:
  • Passive House Institute - Certificate

    Passive House Institute - Certificate

    Certificate type

Single-sided, diffusible and rainproof high-performance adhesive tape.

Jump to:
+41(0)414996969 Website

Application

Suitable for permanent windtight bonding of component layers outdoors.

Description

Single-sided, diffusible and rainproof high-performance adhesive tape.


The range comprises:

  • Wigluv® 60: Diffusible, rainproof adhesive tape for wind tight bonding of roof and façade membranes. 60 mm wide.
  • Wigluv® 100: Diffusible, rainproof adhesive tape for wind tight bonding of under-roof and façade panels. 100 mm wide.
  • Wigluv® 150: Diffusible, rainproof adhesive tape for wind tight bonding of under-roof and façade panels. 150 mm wide.
  • Wigluv® 20/40: Diffusible, rainproof adhesive tape with slit backing strip for airtight connection to window and door frames. 20/ 40 mm wide.
  • Wigluv® black: Diffusible, UV-stable adhesive tape for wind tight bonding of visible façade membranes. 60 mm wide.
  • Wigluv® black 20/40: Diffusible, UV-stable adhesive tape with slit backing strip for windtight connection to window and door frames. 20/ 40 mm wide.


Features and benefits:

  • High permanent adhesive strength.
  • Non-drying and non-embrittling without caoutchouc, resin or solvent.
  • Can reliably and durably follow structural movements.

General information

Color

Grey

Finish

Gloss

Material

Polyolefin

Shape

Formless

Length

25000 mm

40000 mm

Width

60 mm

100 mm

150 mm

Height

1 mm

Warranty description

Ten year

Uniclass

Pr_35_90_87_69 Polymer-based adhesive sealant tapesPrimary

CAWS

H20/155 Sheet cladding (attached to timber battens)

H20/150 Sheet cladding (attached to metal support systems)

H20/10 Sheet cladding

G10/20 Steel framing system

G10/150 Steel framing system

K11/485 Wall sheathing

P10/50 Insulation supported between joists

P10/45 Insulation laid between floor joists

P10/42 Mineral wool insulation slabs fixed to backing wall

P10/40 Insulation fitted betweenor to the face ofstuds

P10/250 Insulation supported between floor joists

P10/240 Insulation fitted between floor joists

P10/220 Sound insulation within timber framed separating wall

P10/217 Insulation slabs fixed to backing wall

P10/212 Insulation fixed across inner face of stud walling

P10/20 Insulation to loft access hatches

P10/185 Soffit insulation

P10/170 Insulation to loft access hatches

P10/165 Insulation to eaves

P10/15 Insulation fitted between rafters

P10/140 Insulation fitted between rafters

P10/125 Insulation laid between ceiling ties/ joists

P10/10 Loft insulation

H11/110 Curtain walling

J42/425 Mineral wool (MW) insulation

J21/125 Inverted roof coating

J42/120 Inverted roof covering

J42/110 Warm deck roof covering

J42/10 Warm deck roof covering

H65/25 Laying underlay

H65/135 Ceramic slate roof tiling

H65/10 Reconstituted slate roof tiling

H65/125 Reconstituted slate roof tiling

H64/25 Laying underlay

H64/130 Vertical wood shingle/ shakes

H64/110 Wood shingle/ shake roofing

H62/140 Vertical slating

H62/125 Roof slating

H62/120 Vertical slating

H62/105 Roof slating

H61/25 Underlay

H60/25 Fitting underlay

H60/155 Concrete vertical tiling

H60/120 Concrete roof tiling

H65/105 Clay roof tiling

H60/105 Clay roof tiling

H92/780 Air and vapour control layer

H92/785 Breather membrane

L10/810 Sealant joints

L20/820 Sealant joints

P10/320 Breather membrane

P10/310 Air and vapour control layer

L10/75 Sealant joints

L20/80 Sealant joints

P10/65 Breather membrane

Specification data - Polymer-based adhesive sealant tapes

Material

Diffusion-open special polyolefin (PO), film, elastic.

Guidance for specification option:

Impermeable to water, UV-stable, can be exposed to the atmosphere for 12 months.

Bond

SIGA high-performance adhesive.

Size

60 mm wide.

Colour

Light grey.

Roll length

40 m.

Temperature resistance

-40 to +100°C.

Sd value

<2 m (to EN 1931).

Water resistance

Driving-rain-proof (Pmax): To EN 1027: 600 Pa; EN 12208: Class 9A.

Sustainability data

Contains Red List materials

No

Country of material origin

Switzerland

Country of product manufacture

Switzerland

Material

Polyolefin

Manufacturing plant location

Expected Life

Lifetime

Third party certifications

Passive House Institute - Certificate

Passivhaus certificate
