FD20-UG Swing Door Operator

Gilgen electromechanical swing door operator with spring force close and adjustable closing EN 3-7, for different widths of door leaves in accordance with EN 1154.

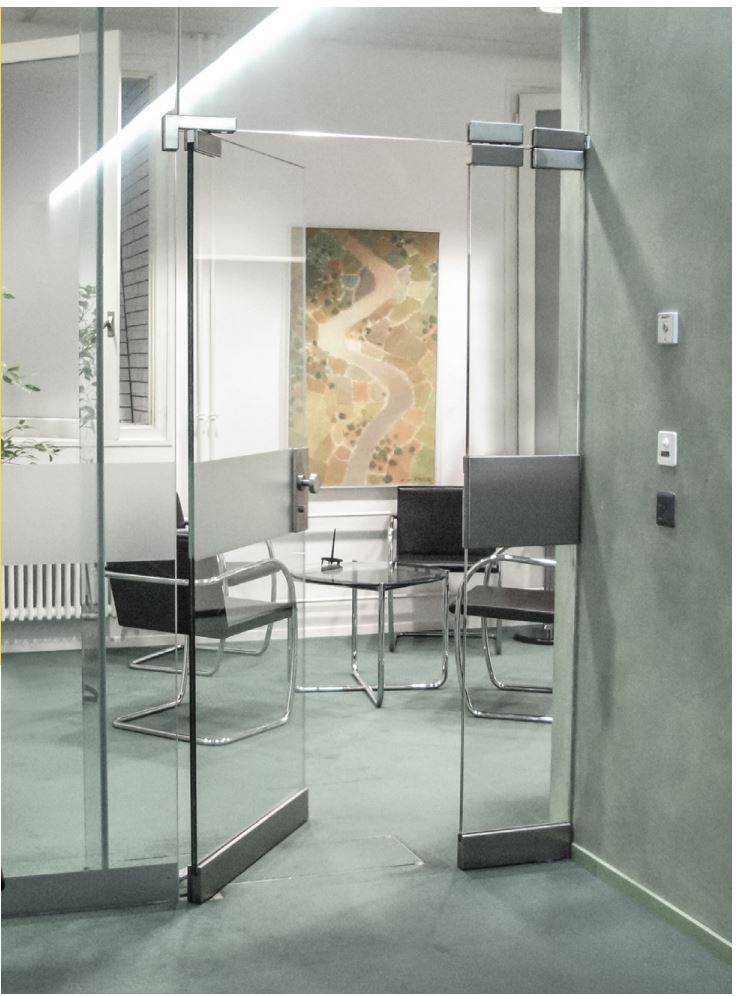

Fully automatic or low energy operation complete with back check and adjustable hold open, installed underfloor and utilizing standard sliding rods fitted to door base of the door leaf.

The unit has been designed with ease of install and servicing at its core. The electromechanical drive unit can be considered for new installations and refurbishments alike. The unit can be specified for internal and external applications.

Features and benefits:

• Drive unit with rust-resisting case and cover plate Integrated travel stops in the sliding rods Electromechanical drive system.
• Controlled, spring-actuated closure with motor assistance.
• Spring-actuated closure in the event of a power failure.
• Ease of service, no need to remove the door.
• Can be retrofitted.
• The safety sensor system mounted on the moving door leaf ensures a reliable operation.
• Additional finger protection might be needed in some markets.
• Maximum opening angle 95°.
• Maximum wind speed 60 km/h (180 Pa, depending on door size).
• Built in program selector keys located on the side of the operator.
• Key switch configured for off, automatic and hold open operating modes.
