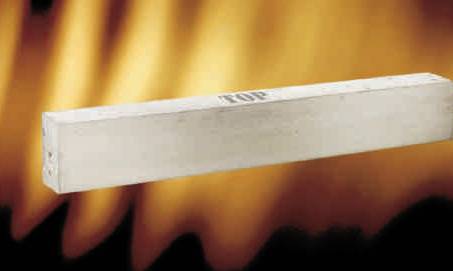

Faced S8 - Lintels
Verified by manufacturer 3 months ago
Pre-stressed lintels ensuring optimum performance and 30 minutes fire rating as standard, with a smooth, consistent colour finish.
Application
For use in 215 mm wide walls and partitions.
Description
All High-Spec units are prestressed to ensure optimum performance and come with 30 minutes fire rating as standard. Available in lengths up to 4800 mm on certain sections sizes. Available in a Hi-Spec Finish, for use normally in plastered situations, or Faced Finish, for use in exposed or painted situations.
Features and benefits:
- Design complies with EN 1992-1.
- Materials comply with BS EN 206 and BS 8500. The prestressing wire complies with BS 5896.
General information
Color | Grey |
Finish | Smooth Guidance for specification option: Smooth, consistent colour finish. Other Guidance for specification option: Fair faced - Type C. |
Material | Concrete |
Shape | Square |
Length | 900 mm 1200 mm 1500 mm 1800 mm 2100 mm |
Width | 215 mm |
Height | 215 mm |
Warranty description | 50 year Guidance for specification option: design life. |
Uniclass | |
CAWS | F30/745 Prestressed concrete lintels |
Product range |
Specification data - Prestressed concrete lintels
Standard | To BS EN 845-2. |
Types | Single. |
Dimensions | |
Length | 600 mm.900 mm.1200 mm.1500 mm.1800 mm.2100 mm.2400 mm.2700 mm.3000 mm.3300 mm.3600 mm.Guidance for specification option: Longer lengths available on request - up to 4800 mm. |
Cross section | 215 x 215 mm. |
Characteristics | |
Deflection under load | 3.98 mm.Guidance for specification option: Deflection at 1/3 of load capacity. |
Freeze/ thaw | Resistant. |
Resistance to fire | 30 minutes. |
Thermal conductivity | 1.52 W/m.K.Guidance for specification option: Thermal conductivity λ 10,dry, mat, to EN 1745. |
Water absorption | 1.15 Cw.s. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.19 kg CO₂ eq/kg Self declared Manufacturer guidanceRaw materials are locally and responsibly sourced. |
Recyclability | Manufacturer guidanceAt the end of life, concrete can be recycled. Crushed concrete can be used as aggregates in new concrete or as sub-base and fill. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 6 |
 IFC | - | 5 |
