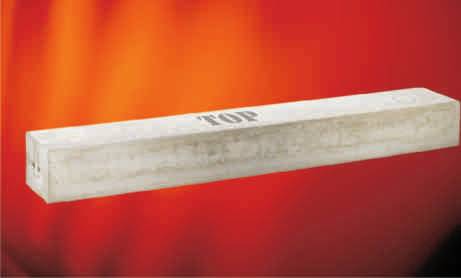

Faced Fire R13 [60 minutes] - Lintels

Name: Faced Fire R13 [60 minutes] - Lintels
Brand: Naylor Concrete Products Ltd
SKU: ffWmbfW7RszoAMTW6ek8xs

Verified by manufacturer 4 months ago

Naylor Concrete Products Ltd

Pre-stressed lintels ensuring optimum performance with enhanced fire resistance and a smooth, consistent colour finish.

Jump to:

BOS

01226 320810 Website

Application

For use in 190 mm wide walls and partitions where 60 minutes fire rating is required.

Description

Faced Fire-Spec Lintels have a class C fair faced finish and are available with 60, 90 or 120 minutes fire rating, dependent upon the section width. Other concrete sections can be made with a fire resistance equal to or greater than the standard range. The Naylor technical team, with their special knowledge of concrete, can advise which sections would achieve a specific fire resistance and strength rating and offer a design solution, should this not be detailed in the load span tables.

Features and benefits:

Design complies with EN 1992-1-2.
Manufactured in accordance with BS EN 845-2: 2003.
Materials comply with BS EN 206 and BS 8500. The pre-stressing wire complies with BS 5896.
All fire rated lintels produced by Naylor Lintels comply with EN 1992-1-2.

General information

Color	Grey
Finish	Smooth Guidance for specification option: Smooth, consistent colour finish. Other Guidance for specification option: Fair faced - Type C.
Material	Concrete
Shape	Rectangle
Length	900 mm 1200 mm 1500 mm 1800 mm 2100 mm 2400 mm 2700 mm 3000 mm 3300 mm 3600 mm Show more
Width	190 mm
Height	290 mm
Warranty description	50 year Guidance for specification option: design life.

Uniclass	Pr_20_85_48_67 Prestressed concrete lintelsPrimary
CAWS	F30/745 Prestressed concrete lintels

Product range	Lintels / Faced Fire-Spec Lintels

Specification data - Prestressed concrete lintels

Standard	To BS EN 845-2.
Types	Single.
Dimensions	-
Length	600 mm. 900 mm. 1200 mm. 1500 mm. 1800 mm. 2100 mm. 2400 mm. 2700 mm. 3000 mm. 3300 mm. 3600 mm. Guidance for specification option: Longer lengths available on request - up to 4800 mm.
Cross section	190 x 290 mm.
Characteristics	-
Deflection under load	1.76 mm. Guidance for specification option: Deflection at 1/3 of load capacity.
Freeze/ thaw	Resistant.
Resistance to fire	60 minutes.
Thermal conductivity	1.52 W/m.K. Guidance for specification option: Thermal conductivity λ 10,dry, mat, to EN 1745.
Water absorption	1.15 Cw.s.

Surface finish	Class C fair faced.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	0.19 kg CO₂ eq/kg Self declared Manufacturer guidance Raw materials are locally and responsibly sourced.
Recyclability	- Manufacturer guidance At the end of life, concrete can be recycled. Crushed concrete can be used as aggregates in new concrete or as sub-base and fill.
