HR 150 mm
Range of half round extruded aluminium gutters.
Suitable for traditional or modern buildings and suited to both flush and projecting eaves applications.
Seamless Aluminum’s range of half round (HR) gutters are designed and manufactured to provide the essential architectural features appropriate to traditionally designed buildings. The various elements slide together and are sealed with mastic and bolted together. They are fixed to the fascia board with the use of mounting brackets.
The system can be used as a direct replacement for cast iron and PVC. It can also be used on both flush and projecting eaves.
As Seamless Aluminium manufacture all the gutters and accessories in their manufacturing plant, they can accommodate any special requirements in relation to length, colour, special angles or brackets etc.
Features and benefits:
Compatible with:

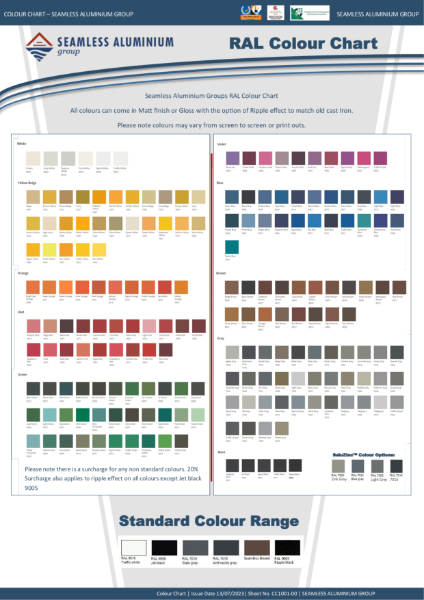

Color | White Black Grey Other Guidance for specification option: Available in any RAL or classic BS colours. |
Finish | Powder-coated Mill |
Material | Aluminium |
Shape | Other Guidance for specification option: Half round. |
Length | 3000 mm |
Width | 125 mm 150 mm 137 mm |
Warranty description | 20 year |
Uniclass | |
CAWS | R10/11 Aluminium gutters R10/311 Aluminium gutters |
Form | Extruded. |
Profile | Half-round. |
Size (nominal width) | 150 mm. |
Thickness or gauge | 2.75 mm. |
Finish | Mill.Powder coating to BS EN 12206-1. |
Colour | None.Guidance for specification option: Mill finish. Traffic white (RAL 9016).Guidance for specification option: Powder-coated. Jet black (RAL 9005).Guidance for specification option: Powder-coated. Slate grey (RAL 7015).Guidance for specification option: Powder-coated. Anthracite grey (RAL 7016).Guidance for specification option: Powder-coated. Ripple black (RAL 9005).Guidance for specification option: Powder-coated. Seamless brown.RAL colour to be agreed.Guidance for specification option: All powder-coated products available in any RAL or Classic BS Colour. Consult manufacturer and insert requirements. |
Film thickness (minimum) | Coating applicator to determine. |
Integral accessories | Internal mitre.External mitre.Running outlet.Traditional fascia bracket.Loose connector.End cap.Contemporary fascia bracket.Side rafter bracket.Top rafter bracket.Contemporary spiked bracket.Rise and fall bracket. |
Capacity | 1.45 L/s. Guidance for specification option:
|
Fire rating | Non-combustible to EN 13501-1. Guidance for specification option:
|
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | Ireland |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
