Extruded Box Guttering System - Aluminium Gutter
Verified by manufacturer 11 days ago
125 mm (5") gutter
125 mm (5") gutter

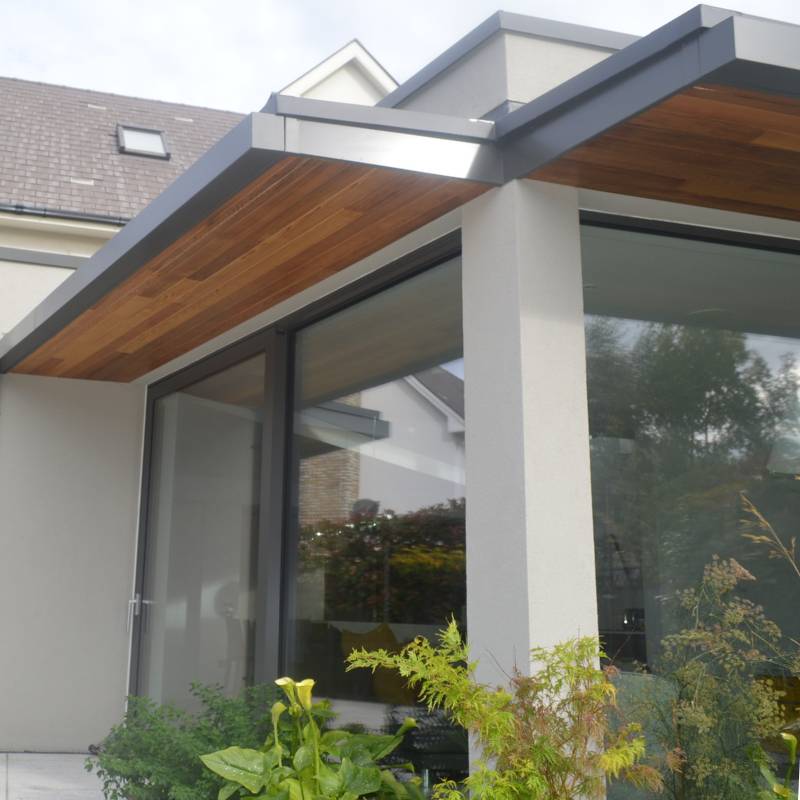

Box gutters designed and manufactured to provide the essential architectural features appropriate to modern design buildings.
Application
Designed and manufactured to provide the essential architectural features appropriate to modern design buildings.
Can be used as a direct replacement for cast iron or PVC, and on both flush and projecting eaves.
Compatible with common downpipes:
- 63, 76, 102 and 150* mm diameter circular downpipes;
- 76 x76 and 102 x 102 mm square downpipes;
- 102 x 76 mm rectangular downpipes.
*150 mm box gutter only.
Description
Box gutters designed and manufactured to provide the essential architectural features appropriate to modern design buildings.
Features and benefits:
- Manufactured from extruded aluminium to BS EN 12020-2:2008 and BS EN 755-2:2013 Aluminium alloy 6063 to T4 temper grade.
- Lightweight, fully recyclable material.
- Marine grade.
- Available in two standard sizes (5" or 6").
- Mill finish or polyester powder-coated in a matt finish in six standard RAL colour options.
- Can be used as a direct replacement for cast iron or PVC, and on both flush and projecting eaves.
- Compatible with common circular, square and rectangular downpipes.
- Radius and special fittings can be manufactured.
- Can be used on both flush and projecting eaves.
- Non-combustible to EN 13501-1:2007 + A1:2009.
- Life expectancy of 40 years or more - aluminium gutter systems have a low maintenance life in excess of 40 years in rural and suburban conditions and in excess of 25 years in industrial and marine conditions.
- Special requirements can be accommodated (length, colour, special angles, brackets etc.).
General information
Color | Silver White Guidance for specification option: RAL 9016 Traffic White. Black Guidance for specification option: RAL 9005 Jet or Ripple Black. Grey Guidance for specification option: RAL 7015 Slate Grey or RAL 7016 Anthracite Grey. Brown Guidance for specification option: Seamless Brown. |
Finish | Matt Guidance for specification option: Powder-coated. Mill Powder-coated Guidance for specification option: Matt finish. Gloss |
Material | Aluminium |
Shape | Rectangle Square Other |
Length | 3000 mm 1500 mm Bespoke Manufacturer guidanceStandard lengths. |
Width | 125 mm Guidance for specification option: 5". Standard gutter section only. 150 mm Guidance for specification option: 6". Standard gutter section only. |
Height | 100 mm Guidance for specification option: Standard gutter section height. |
Warranty description | 20 year |
Uniclass | |
CAWS | R10/11 Aluminium gutters R10/311 Aluminium gutters |
Specification data - Aluminium eaves gutters
Form | Extruded to BS EN 12020-2:2008 and BS EN 755-2:2013 aluminium alloy 6063 to T4 temper grade. |
Profile | Box. |
Size (nominal width) | 125 mm.Guidance for specification option: B5000 (5"). Gutter capacity: 4.37 L/s. Manufacturer guidance100 mm high, available in 1, 2 and 3 m lengths. Gutter capacities are based on EN 12056-3:2000, assuming a maximum distance of 50 x gutter depth, from high point to outlet. Longer gutters or gutters with corners exceeding 254 mm will have a reduced capacity. Flow rate will vary according to downpipe specified; consult manufacturer's literature for details. |
Thickness or gauge | 2.75 mm. |
Finish | Powder coating to BS EN 12206-1, matt.Guidance for specification option: Matt. See below for colour options. All systems are polyester powder-coated in the manufacturer's in-house powder coating facility. Mill.Manufacturer guidanceRipple or orange peel effects available; consult manufacturer for details. |
Colour | RAL 9016 Traffic White.Guidance for specification option: Polyester powder-coated finish only. RAL 9005 Jet Black.Guidance for specification option: Polyester powder-coated finish only. RAL 7015 Slate Grey.Guidance for specification option: Polyester powder-coated finish only. RAL 7016 Anthracite Grey.Guidance for specification option: Polyester powder-coated finish only. Seamless Brown.Guidance for specification option: Polyester powder-coated finish only. RAL 9005 Ripple Black.Guidance for specification option: Polyester powder-coated finish only. Silver (standard for mill finish).Other.Guidance for specification option: Polyester powder-coated finish only. More RAL colours available, see manufacturer's colour chart and insert requirements. |
Film thickness (minimum) | Manufacturer's standard.Guidance for specification option: Polyester powder-coated only; not applicable for mill finish. |

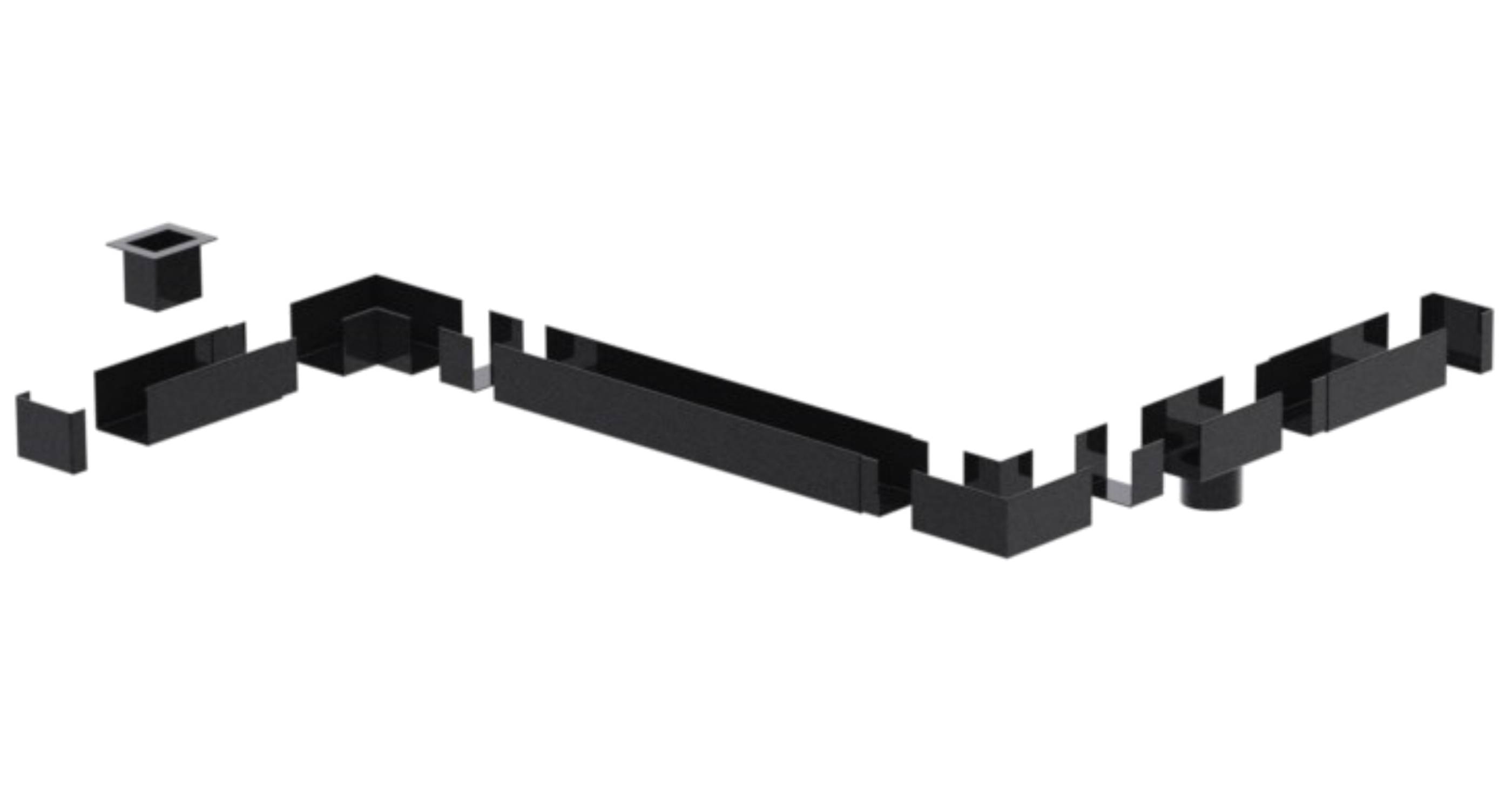

Integral accessories | Internal mitre.External mitre.Internal connector.Drop-in outlet.Guidance for specification option: Specify downpipe size & shape required:
Running outlet.Guidance for specification option: Specify downpipe size & shape required:
End cap.Manufacturer guidanceTo suit nominal gutter width. Consult manufacturer's literature for dimensions etc. See also Brackets below. Radius and special fittings can be manufactured; consult manufacturer for details. |
Brackets | Standard fascia brackets. Rafter brackets. Guidance for specification option: Side or top rafter bracket. Rise & fall brackets. |
Fire rating (to BS EN 13501) | Non-combustible to EN 13501-1:2007 + A1:2009. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | Ireland |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
Colour Chart
Extruded Box Gutter Data Sheet
