EVR-4 - Artificial Grass System

Name: EVR-4 - Artificial Grass System
Brand: Evergreens UK Group
SKU: rhdS9RjF8mAqBGAkiH1Azc

Verified by manufacturer 2 days ago

Evergreens UK Group

Stone based artificial grass system.

Jump to:

BOS

+44 (0)1572 768208 Website

Application

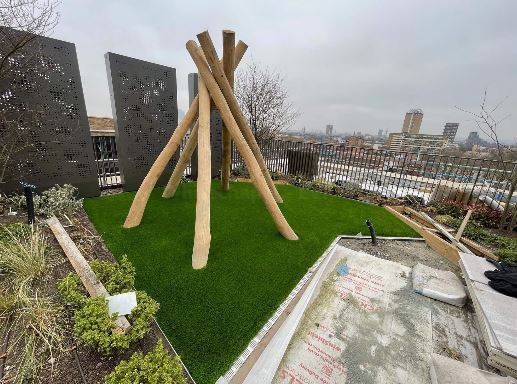

Suitable for inverted roof areas where the roof requires additional build up for level transitions and surface levels.

Description

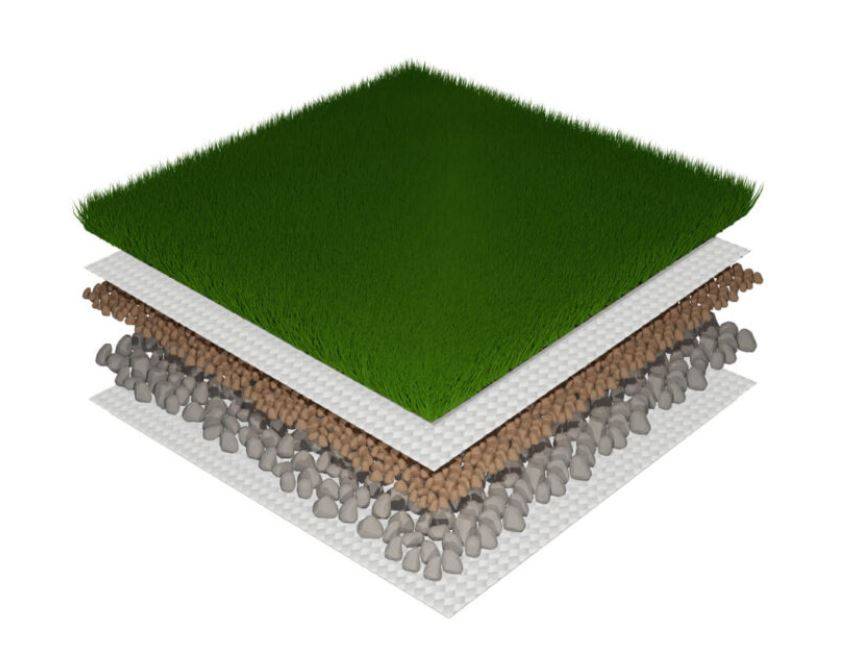

The EVR-4 system consists of the Wonder Yarn 36mm artificial grass, 30mm Force Field FR Foam, Geotextile, 6mm to dust stone, type 1 aggregate and another layer of geotextile. The grass is then sand infilled with a recycled glass sand.

Features and benefits:

Environmentally friendly, free of lead and cadmium.
System heights can be set to requirements by adjusting aggregate build ups.
Standard 25 m roll length with larger roll lengths available on request.
Fire tested to Broof(t4).
Wind speed tested up to 100 mph.
Critical fall height of 1.5m.

General information

Color	Green
Finish	Tufted
Material	Polyethene Guidance for specification option: Artificial grass. Aggregate Guidance for specification option: Stone/ pebbles.
Length	Bespoke Guidance for specification option: Wonder Yarn 36 mm.
Width	2000 mm Guidance for specification option: Wonder Yarn 36 mm. 4000 mm Guidance for specification option: Wonder Yarn 36 mm.
Height	36 mm Guidance for specification option: Wonder Yarn 36 mm.

Uniclass	Ss_30_14_50_80 Synthetic grass surfacing systemsPrimary
CAWS	Q26/350 Synthetic grass surfacing

Specification data - Synthetic grass surfacing systems

Classification data
Geotextile below granular sub-base	iGrass geotextile. Guidance for specification option: Tensile strength (MD/CMD): 6 kN/m. Elongation Tmax (MD/CMD): 50%. Dynamic perforation resistance: 39 mm. Static puncture resistance: 1.05 kN. Characteristic opening size: 75 um. Water flow rate: 120 L(m²s). Flow capacity in the plane gradient: 3.41*10⁶ m²/s. Thickness under 2 kPa: 0.9 mm. Durability: To be covered on the date of installation for reinforcement and within three months for other applications. Avoid contact with other geotextiles as this can cause damage or modification.
Granular sub-base	Base, bed and fill coarse aggregates.
Base course	6 mm to dust stone.
Wearing surface	-
Fibres	Wonder Yarn 36 mm. Guidance for specification option: Primary backing: 100% PP black with fleece, U.V. stabilized, weight 172 g/m². Secondary backing: Black latex compound with a base of Styrene butadiene (SBR) with drainage hole, weight 836 g/m². Water-permeability: 60 litre/min/m². Pile height: 36 mm ±10%. Face weight: 1750 g/m² ±10%. Total weight: 2758 g/m² ±100 g/m². Tuft gauge: 3/8-gauge. Stitches per 10 cm linear: 15 ±1. Stitches per m²: 15 750 ±10%. Colour: Mix of light and dark green + caramel thatch. UV stability: Meets DIN 53387 standard. Colour fastness: Xenon Test: Blue Scale > 7 Grey Scale > 4.
Anchorage	-
Fill material	EverRoof system sand infill. Guidance for specification option: 10 kg/m².
Type	8000 / 8 dTex PE Monofilament straight. 5000 / 8 dTex PE Monofilament curled (UV Stabilized). Manufacturer guidance Wonder Yarn 36 mm yarn type.
Roll length	25000 mm. Bespoke. Manufacturer guidance Wonder Yarn 36 mm. Standard 25 000 mm. Larger roll lengths available on request.
Roll width	2000 mm. 4000 mm. Manufacturer guidance Wonder Yarn 36 mm.

Sustainability data

Material	Polyethene Guidance for specification option: Artificial grass. Aggregate Guidance for specification option: Stone/ pebbles.

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	-	1
IFC	-	1
