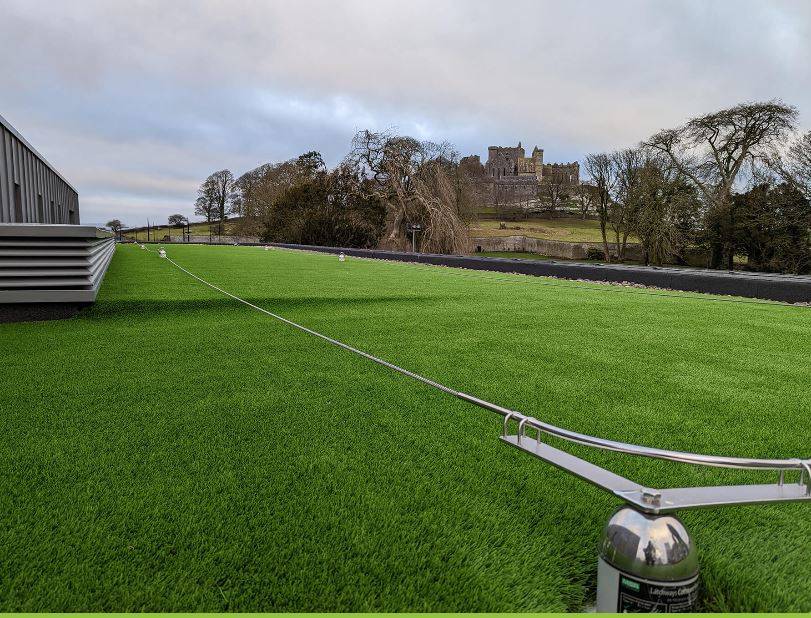

EVR-1 - Artificial Grass System

Name: EVR-1 - Artificial Grass System
Brand: Evergreens UK Group
SKU: nH3F8dGmuSD9feLuiaN1Jv

Verified by manufacturer 2 days ago

Evergreens UK Group

Three part artificial grass system.

Jump to:

BOS

+44 (0)1572 768208 Website

Application

EVR-1 is installed onto flat roof and podium areas to standard 1:60–1:80 falls, where additional build up is not required. This system is not suitable for inverted roofs.

Description

The EVR-1 system consists of the Wonder Yarn 36 mm artificial grass, 30mm Forcefield Foam and 12 or 25mm EverDrain Drainage Board.

Features and benefits:

Environmentally friendly, free of lead and cadmium.
Standard 25 m roll length with larger roll lengths available on request.
Fire tested to Broof(t4).
Wind speed tested up to 100 mph.
Critical fall height tested to 1.5m.

General information

Color	Green
Finish	Tufted
Material	Polyethene Guidance for specification option: Artificial grass. Polyethylene Guidance for specification option: 30 mm Forcefield FR Foam. High density polyethylene (HDPE) Guidance for specification option: EverDrain.
Length	25000 mm Guidance for specification option: Wonder Yarn 36 mm. Bespoke
Width	2000 mm Guidance for specification option: Wonder Yarn 36 mm. 4000 mm Guidance for specification option: Wonder Yarn 36 mm.
Height	91 mm Guidance for specification option: System height when using 25 mm Everdrain.

Uniclass	Ss_30_14_50_80 Synthetic grass surfacing systemsPrimary
CAWS	Q26/350 Synthetic grass surfacing

Specification data - Synthetic grass surfacing systems

Classification data
Shock absorption	30 mm Forcefield FR foam. Guidance for specification option: Material: Closed-cell, crosslinked polyethylene foam. Primary backing: PET-fabric. Density: 30 kg/m³. Width: 1200 mm -0/+20. Length: 1600 mm -0/+40. Height: 30 mm. Water permeability: 20000 mm/h - 1. Compression stress: 32 kPa ISO 3386/1 (at 25% deflection); 84 kPa ISO 3386/1 (at 50% deflection). Colour: White.
Wearing surface	-
Fibres	Wonder Yarn 36 mm. Guidance for specification option: Primary backing: 100% PP black with fleece, U.V. stabilized, weight 172 g/m². Secondary backing: Black latex compound with a base of Styrene butadiene (SBR) with drainage hole, weight 836 g/m². Water-permeability: 60 litre/min/m². Pile height: 36 mm ±10%. Face weight: 1750 g/m² ±10%. Total weight: 2758 g/m² ±100 g/m². Tuft gauge: 3/8-gauge. Stitches per 10 cm linear: 15 ±1. Stitches per m²: 15 750 ±10%. Colour: Mix of light and dark green + caramel thatch. UV stability: Meets DIN 53387 Standard. Colour fastness: Xenon Test: Blue Scale > 7 Grey Scale > 4.
Anchorage	-
Fill material	EverRoof system sand infill. Guidance for specification option: 10 kg/m².
Perimeter	250 mm aggregate margin. Guidance for specification option: Required using 30–50 mm Scottish pebbles at a minimum of 20 kg/ linear metre. This forms part of the wind test requirements. 250 mm aggregate margin with resin bound stone capping. Guidance for specification option: Required using 30–50 mm Scottish pebbles at a minimum of 20 kg/ linear metre. This forms part of the wind test requirements. For pedestrian transitions pebbles are capped with a resin bound stone capping (no loose pebbles).
Type	8000 / 8 dTex PE Monofilament straight. 5000 / 8 dTex PE Monofilament curled (UV Stabilized). Manufacturer guidance Wonder Yarn 36 mm yarn type.
Roll length	25 000 mm. Bespoke. Manufacturer guidance Wonder Yarn 36 mm. Standard 25 000 mm. Larger roll lengths available on request.
Roll width	2000 mm. 4000 mm. Manufacturer guidance Wonder Yarn 36 mm.
Drainage layer	12 mm EverDrain. Guidance for specification option: Type: HDPE (High Density Polyethylene). Primary backing: Geotextile filter thermally bonded to one side. Width: 1100 mm. Length: Standard 50 m, but can be cut bespoke. Thickness: 12 mm ±10%. Weight: 1070 g/m². Water flow at 50 mm head: 98 L/m²^.s. Permeability: 2.6 x 10^-³±30%. Puncture resistance: 2300N -20%. Colour: Black. Design life: 120 years. 25 mm EverDrain. Guidance for specification option: Type: HDPE (High Density Polyethylene). Primary backing: Geotextile filter thermally bonded to one side. Width: 915 mm. Length: Standard 50 m, but can be cut bespoke. Thickness: 26.6 mm ±10%. Weight: 1800 g/m². Water flow at 50 mm head:75 L/m²^.s. Colour: Black.

Sustainability data

Material	Polyethene Guidance for specification option: Artificial grass. Polyethylene Guidance for specification option: 30 mm Forcefield FR Foam. High density polyethylene (HDPE) Guidance for specification option: EverDrain.

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	-	1
IFC	-	1
