ET-S - Waterpoofing Mat
Verified by manufacturer 10 days ago

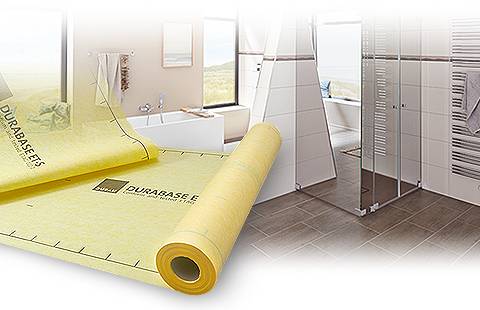

Composite waterproofing mat for walls and floors in internal areas.
Application
For internal tiled walls and floors.
Description
Composite waterproofing mat for walls and floors in internal areas. ETAG 022-2 approved.
General information
Color | Yellow |
Material | Low density polyethylene (LDPE) |
Shape | Other |
Length | 30000 mm |
Width | 1000 mm |
Height | 0.67 mm |
Uniclass | |
CAWS | M40/110 Tiling to M40/5 Tiling to |
Specification data - Plastics sheets
Material | Carrier: Polypropylene fleece; Membrane: Modified low-density polyethylene. |
Purpose | Waterproofing. |
Third-party certification | ETAG 022-2 approved.Guidance for specification option: Rev-Nr. 2.1/13821/1088.0.1-2017. |
Performance characteristics | |
Tensile strength (minimum) | Transverse: 240 N/50 mm; Longitudinal: 350 N/50 mm. |
Fire performance | B2. |
UV stabilization | ≥ 450 hours. |
Form | Single-ply. |
Physical properties | |
Colour | Yellow. |
Weight (minimum) | 295 g/m². |
Dimensions | |
Thickness (minimum) | 0.67 mm.Guidance for specification option: +/- 0.10 mm. |
Width (minimum) | 1000 mm.Guidance for specification option: +/- 0.10 mm. |
Roll length (minimum) | 30 m. |
WaterImpermeability | ≥ 1.5 bar. |
Sustainability data
Material | Low density polyethylene (LDPE) |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
DURABASE ET-S Roll Film Technical Datasheet
