CI-H Matting - Decoupling Mat for Underfloor Heating
Verified by manufacturer 4 months ago
Combined decoupling membrane and underfloor/ wall heating cable carrier mat.
Application
For electric underfloor heating systems and wall heating cables.
To be installed underneath tiles, stone, or wooden flooring.
Description
DURABASE CI-H matting combines the functions of a decoupling membrane and underfloor/ wall heating cable carrier mat.
Features and benefits:
- Dual-purpose.
- Can be cut to size.
- 1024 rounded/ square shaped reliefs per m².
- Can be used as part of an internal waterproofing/ tanking system.
Heating cables specified separately.
General information
Color | Yellow |
Material | Polyethylene |
Shape | Rectangle |
Length | 5000 mm 15000 mm |
Width | 1000 mm |
Height | 5.5 mm |
Uniclass | |
CAWS | K21/110 Wood flooring M40/115 Natural stone covering M40/110 Tiling M40/10 Natural stone covering M40/5 Tiling |
SKU Code | CI-H |
Specification data - Plastics sheets
Classification data | |
Material | Polyethylene. |
Purpose | Decoupling/ carrier mat for underfloor heating loose cable systems. |
Performance characteristics | |
Elongation to break | 50%. |
Form | Twin ply. |
Physical properties | |
Colour | Yellow. |
Weight (minimum) | 700 g/m². Guidance for specification option: Weight of non-woven polypropylene: 70 g/m². |
Dimensions | |
Thickness (minimum) | 5.5 mm. |
Width (minimum) | 1 m. |
Roll length (minimum) | 5 m. 15 m. |
Working temperature | -40°C to +80°C. |
CompressiveStrength | 60 t/m². |
Breaking load | Longitudinal: 620 N/50 mm. Transversal: 550 N/50 mm. |
Crack bridging | ≥1 mm. |
Sustainability data
Material | Polyethylene |
Recyclability | Can be recycled where recycling facility exists |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature

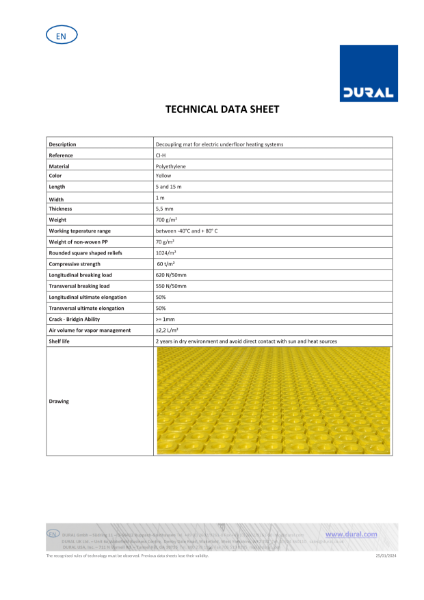

CI H Technical Datasheet
