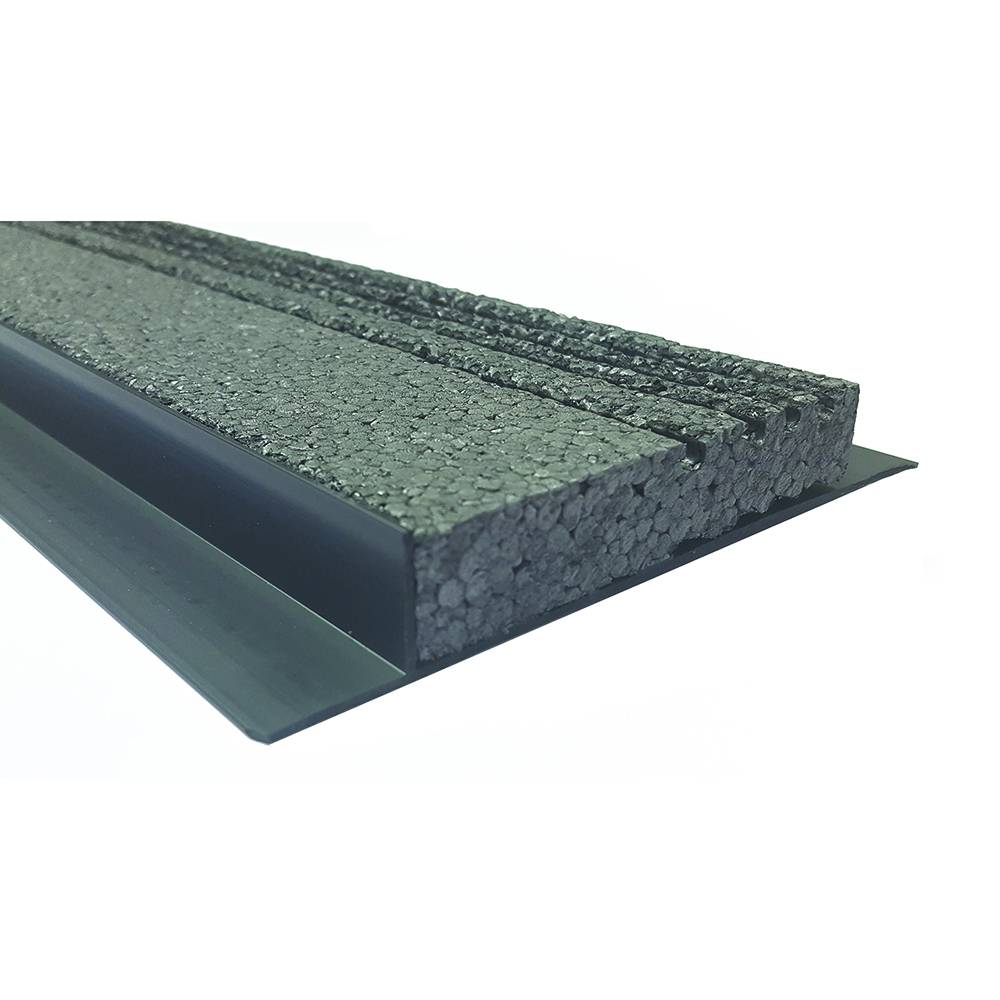

EPS Cavity Closer 100—150 mm
Verified by manufacturer 18 days ago
ET/MCC/100
ET/MCC/100
Expanded (EPS) polystyrene cavity closers, designed for closing cavities around openings in masonry, timber frame and steel frame wall constructions.
Application
- To be installed at the reveals of door and window openings.
- Suitable for new-build or refurbishment projects.
- Suitable for use in a variety of wall constructions.
Description
Cavity closers are fitted within the cavity wall around doors and/or windows. By forming a seal within the aperture, they protect against water ingress and condensation, also acting as an effective DPC barrier and preventing thermal bridging.
Features and benefits:
- Available in two profiles to fit cavity widths: 50-100mm and 100–150mm.
- Simple to install, with cut-to-size grooves.
- Multi-width design overcomes cavity width variations.
Quality Standards:
- Manufactured in accordance with BS EN 13163: 2012 +A1: 2015.
- Satisfies all NHBC standards.
- Compliant with all relevant British Standards.
General information
Color | Grey |
Material | PVC-U Expanded polystyrene (EPS) |
Shape | Rectangle |
Length | 2400 mm |
Uniclass | |
CAWS | F30/18 Cavity closers F30/180 Cavity closers |
Product range |
Specification data - Plastics cavity closers
To fit cavity width | 50–100 mm. |
Length (effective) | 2400 mm. |
Standards | To BS EN 13163: 2012 +A1: 2015, BS EN 13501-1: 2007 +A1: 2009, BS EN 13163: 2012 +A2: 2016. |
Thermal Conductivity: | 0.030 W/m·K. |
Thermal resistance | 25mm: 0.83 m²K/W. |
Compressive stress (maximum) | 70 kPa. |
Compressive creep (design load) maximum 2% deflection after 50 years | 0.3 σ 10. |
Dimensional stability | At 23°C, 50% RH: 5; at 70°C, 90% RH: 1. |
Bending strength | 115 kPa. |
ShearStrength | 180 kPa. |
Modulus of elasticity | 500 kPa. |
Tensile strength (MPa) | 140 kPa. |
Water resistance | 20–40 μ. Guidance for specification option: Water vapour diffusion resistance factor. |
Water vapour permeability | 0.009–0.020 mg/(Pa.h.m). |
Weight | 9 kg. |
Material: | Expanded polystyrene (EPS). Extruded polystyrene (XPS). |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
