A cladding system composed of self-supporting interlocking zinc panels with shadow (reveal) joints.

Jump to:

+44 (0) 7933 171 956 Website

Application

Suitable for flat or gently curved facades and soffits.

Description

The elZinc® facade panel is a zinc architectural cladding solution composed of self-supporting interlocking zinc panels with shadow (reveal) joints. They are installed either horizontally or vertically, interlocking with one another to form a rear-ventilated rainscreen.

The zinc rear-ventilated rainscreen facade is composed of horizontally or vertically installed self-supporting panels made of 1 mm thick elZinc® titanium zinc rolled according to EN 988 and ASTM B69-13. Ventilating space behind cladding to be a minimum of 38 mm, or according to project design criteria, whichever is the greater.

Features and benefits:

Single skin self-supporting panels with tongue and groove joint.
Narrow aspect ratio – length up to a nominal 4 m, width up to 300 mm.
Panels are normally installed in either a horizontal or vertical direction.
Installed top to bottom.
Reveal joint width between panels can vary from 5 mm to 25 mm.
System weight 10 kg/m² (zinc only).

General information

Color	Grey Guidance for specification option: Light grey, medium grey or dark grey. Red Blue Brown Gold Black Green Other Show more
Finish	Natural Pre-weathered
Material	Zinc Guidance for specification option: Titanium zinc.
Shape	Rectangle
Length	- Manufacturer guidance 500-4000 mm.
Width	300 mm
Height	26 mm
Warranty description	Lifetime Guidance for specification option: Alkimi range. 20 year Guidance for specification option: Rainbow range.

Uniclass	Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary
CAWS	H92/120 Rainscreen cladding

Specification data - Drained and back-ventilated rainscreen cladding systems

System performance	Zinc facade panels shall provide a rainscreen wall cladding, able to freely expand and contract in response to temperature changes, and fitted to resist all loading including wind loads. The appearance of the cladding shall be one composed of flat panels, of straight joints and neat folds, correctly set out according to the architect’s drawings and design intent.
Thermal insulation	- Manufacturer guidance A zinc façade does not place any special requirement on the insulation.
Breather membrane	-
Material	Not required. Breather membrane.
Fasteners	A2 stainless steel self-drilling screws.
Secondary support structure	Metal rails on adjustable wall brackets.
Cladding panels	-
Material	1.0 mm-thick elZinc® zinc. Guidance for specification option: Joint centres 233-300 mm.
System accessories	Joints liners.
Execution	- Manufacturer guidance Joints shall set out according to architect’s drawings, or in their absence, according to the design intent of the project. The details of the zinc work should be carried out according recognized good practice and manufacturer’s recommendations. Respect minimum recommended interior radii while bending. Holes should be notched where required to prevent tears forming in the zinc. Marking out: Use a pencil, pen, crayon or chalk. After completion, no marking should be visible. Wherever possible use a mechanical folder to bend material to give straight and uniform folds. Free edges: If visible fold over to form a 15 mm hem. Ensure the temperature of the metal does not fall below 7, or 10°C, depending on the operation, when folding, profiling or forming the metal. Follow elZinc recommendations regarding warming up zinc metal prior to forming.

Colour/ Finish	elZinc Crystal®. elZinc Graphite®. elZinc Lava®. elZinc Natural. elZinc Oliva®. elZinc Rainbow® Black. elZinc Rainbow® Blue. elZinc Rainbow® Brown. elZinc Rainbow® Gold. elZinc Rainbow® Green. elZinc Rainbow® Red. elZinc Slate®. Show more Manufacturer guidance If a backside coating is required, type 'Protect+' directly after the finish, eg. elZinc Graphite® Protect+. If an ‘Advance’ finish is required, type ‘Advance’ directly after the finish, eg. elZinc Slate Advance.

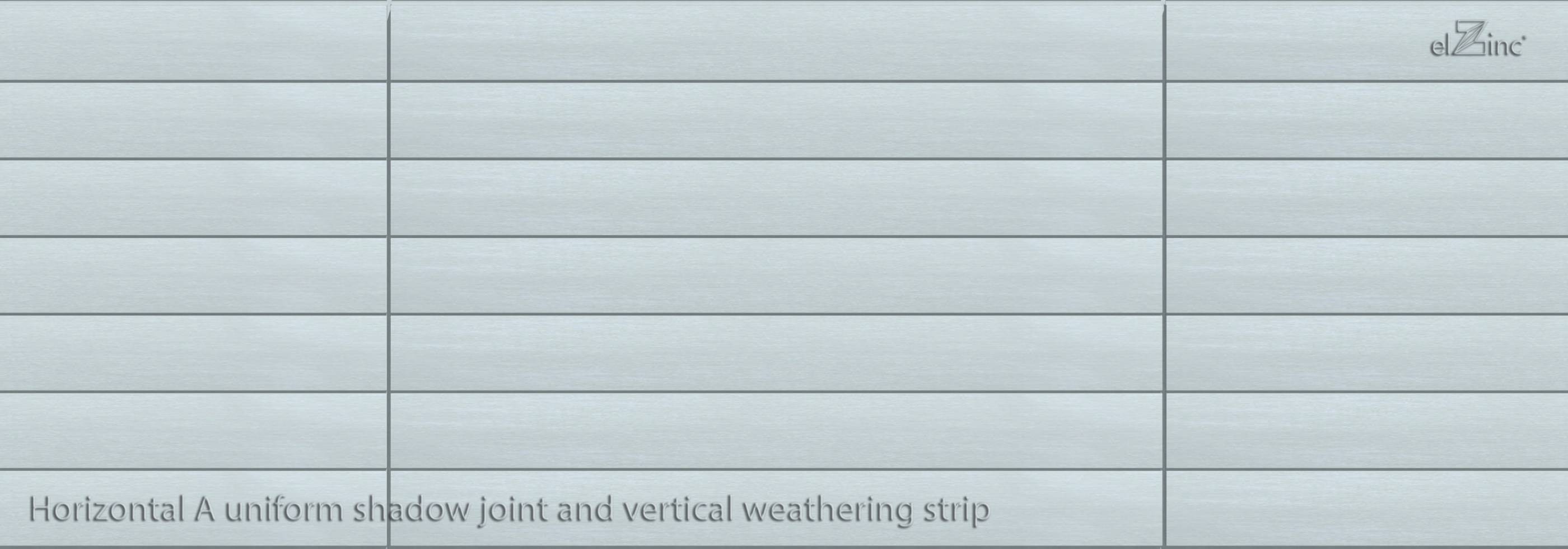

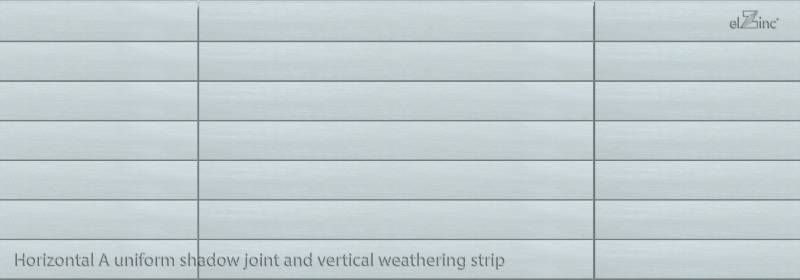

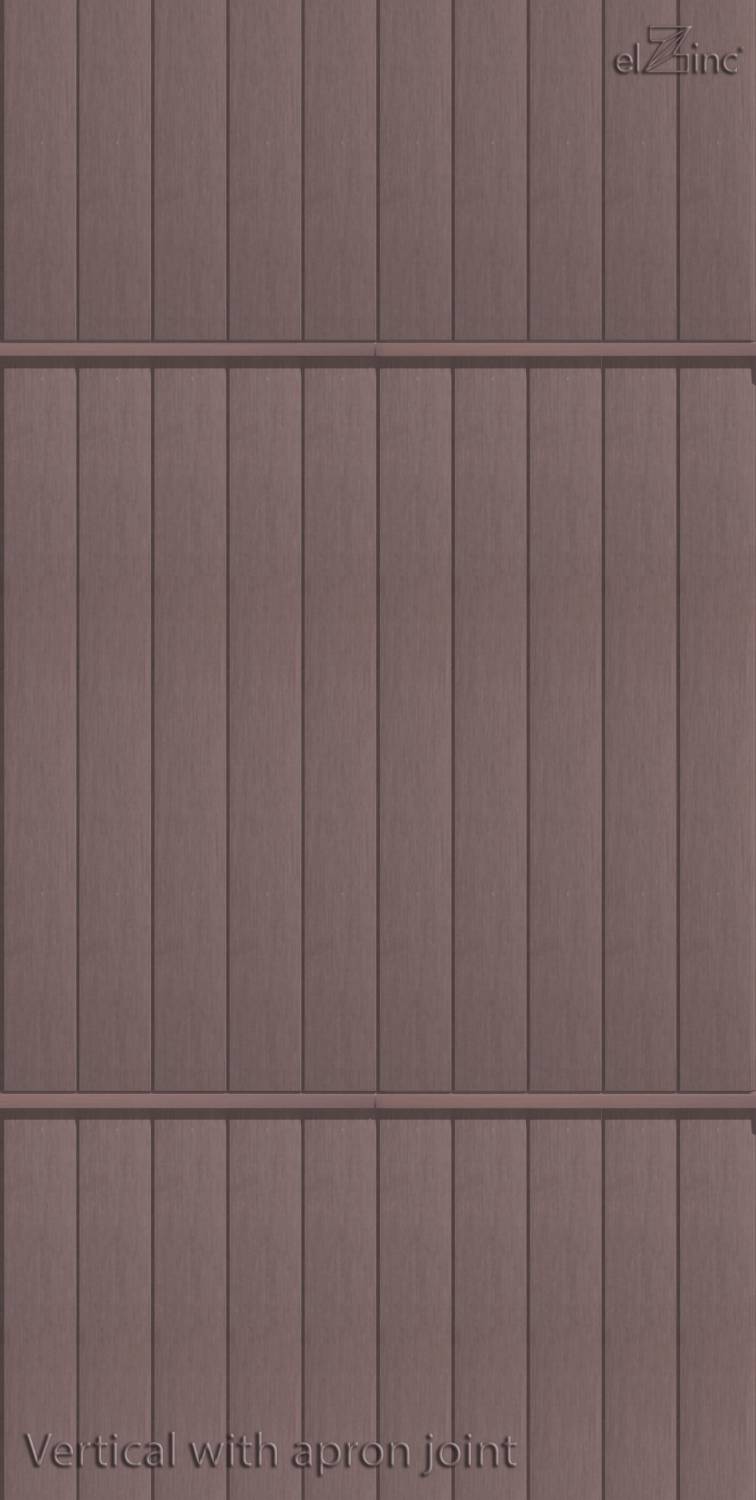

Layout	Horizontal design with uniform horizontal and vertical shadow joint widths. Guidance for specification option: This is the simplest of designs and the most common. It gives a homogeneous feel to the facade. The shadow joint in both directions is usually between 10 and 15 mm. See image in Associated Content. Horizontal design using sleeved transversal joints. Guidance for specification option: This reduces the impact of the transversal joints lending, in this design, more horizontality to the facade. See image in Associated Content. Horizontal design using different joint widths. Guidance for specification option: This ‘frames’ blocks of panels and can create the illusion (at a distance) of large panel sizes. The heavier joints are normally made to coincide with openings. See image in Associated Content.
Joint width	- Manufacturer guidance Insert requirements. Longitudinal joint: Labrynth (shadow joint): The width of the longitudinal joint can vary from 5-25 mm wide. End to end joint: Baffled (joint liner): 10-15 mm is normal, and must be above minimums established below. Closed joint (Sleeved joint): Must be above minimums established below. Width can vary from the minimums given below to 25 mm. Minimum transverse joint widths: 1 m panel – 4 mm. 2 m panel – 5 mm. 3 m panel – 7 mm. 4 m panel – 8 mm.

Sustainability data

Contains Red List materials	No
Country of material origin	Spain
Country of product manufacture	Spain
Recyclability	100% Guidance for specification option: Fully recyclable.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	20 % Guidance for specification option: Approximate.
