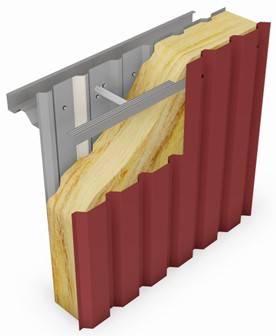

Vertical cladding wall system.
All Euroclad products are manufactured under a Quality Management System accredited to ISO 9001 and an Environmental Management System accredited to ISO 14001. Elite systems are completely non-combustible and recyclable, with the option of a 12 or 25 year Guarantee; the system must be installed by a Euroclad Elite Systems recommended installer.
Elite System 51 is fast and economical vertical clad walling for light industry, retail, dry sports and leisure buildings.
Elite System 51fr fire rated version is also available.
Elite System 51
32/ 1000 Reverse profile, 0.5 mm
32/ 1000 Reverse profile, 0.7 mm
Corus Colorcoat HPS200®
Corus Colorcoat Prisma®
Knauf Factory Clad
Rockwool Cladding Roll
|Vapour control membrane|
Flashings, finish and colour matching external sheet
|Standard product features|
External sheet cover width:
External Sheet Colours:
From Corus Standard Range, Repertoir and through Consultation with Euroclad.
Euroclad 19/1000 0.4 mm steel, standard factory finish.
Euroclad does not recommend a breather membrane in Elite systems.
Vapour control membrane:
Euroclad recommend the use of A Proctor Procheck 500 or Monarflex VB with a minimum vapour resistance of 500 MNs/g together with Probond RG Tape or Monobond sealant with vapour resistivity equal to the vapour control layer.
Acoustic performance (120 mm Rockwool/ 0.5 mm steel):
SRi = 40dB - contact Euroclad for details.
Flashings, rainwater goods, fabricated details and trims can also be provided by Euroclad who can also recommend suppliers of compatible rooflights and fall arrest systems.
