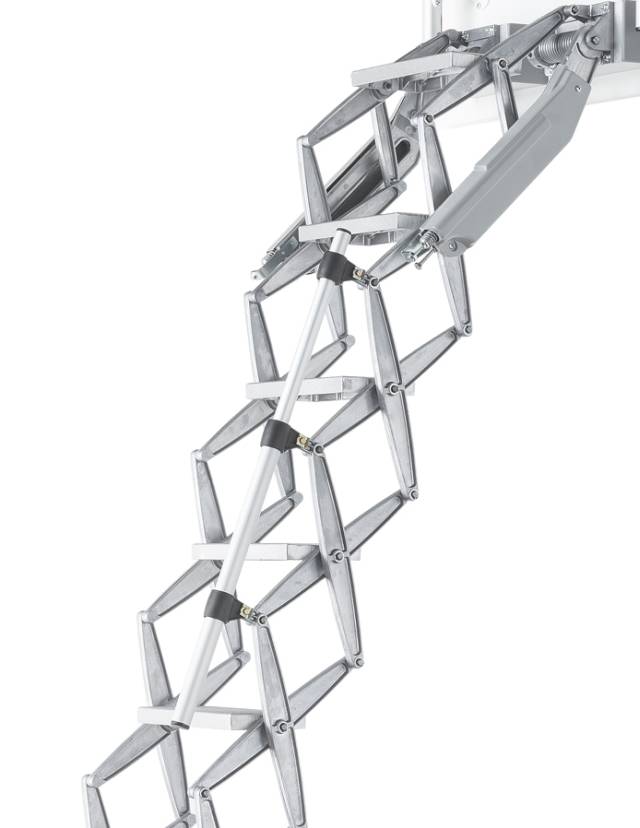

Elite - Heavy Duty Retractable Ladder - No Hatch - Retractable Ladder

Name: Elite - Heavy Duty Retractable Ladder - No Hatch - Retractable Ladder
Brand: Premier Loft Ladders Ltd
SKU: 2rFdAHTJnCw3HFGC1YiJ37

Verified by manufacturer 25 days ago

Premier Loft Ladders Ltd

Product certifications:

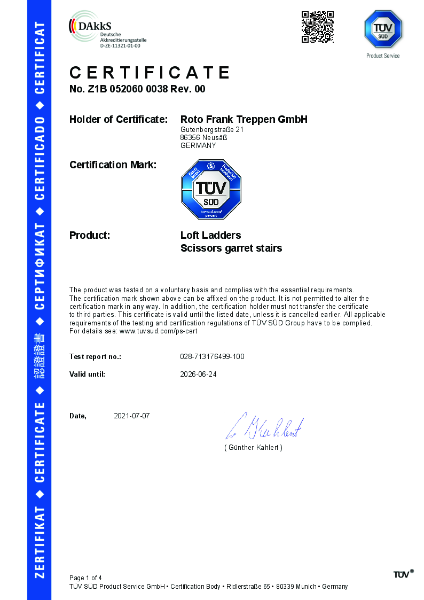

Certificate of Compliance
Certificate type

Heavy duty industrial grade retractable ladder. Counter-balanced for safe and easy operation.

Jump to:

BOS

+44 (0)345 9000195 Website

Application

Industrial and commercial applications

Plant room and lift motor room access

Flat roof access

Mezzanine floors and gantry

Description

Heavy duty retractable ladder for industrial / commercial projects. Supplied as an easy to fit unit without a hatch. The Elite loft ladder is manufactured from high strength die-cast aluminium alloy components. It is supplied with two heavy duty counter-balanced springs incorporated into pivot brackets. As a result, it can be raised and lowered with a minimum of effort. In addition, large steps and pre-assembled telescopic handrail offer comfort, safety and ease of egress.

Also available with a special high backboard to include additional tread(s) and grab rails, which is ideal for deep ceiling voids or suspended ceiling applications.

Features and benefits:

High strength aluminium retractable ladder.
Heavy duty load rating (200 kg per tread).
Very easy to operate (less than 3 kg operating load).
Available in a range of heights and widths to suit specific project requirements.
Includes telescopic anti-slip treads to provide comfort and safety.
Supplied with a two-year full warranty and a ten-year parts warranty.
Low maintenance with excellent durability.
Supplied ready to install.

General information

Color	Silver
Finish	Natural
Material	Aluminium Guidance for specification option: Die-cast
Shape	Other
Width	580 mm Guidance for specification option: Standard width from stock. Other widths available. See 'NBS Specification' for details. 530 mm
Height	2500 mm 2790 mm 3090 mm 3390 mm Manufacturer guidance Maximum heights. Minimum aperture sizes apply.
Warranty description	Two year Guidance for specification option: Full manufacturer warranty. Ten year Guidance for specification option: Parts warranty.

Uniclass	Pr_25_30_85_03 Aluminium loft laddersPrimary
CAWS	L30/41 Loft ladders L30/421 Loft ladders

SKU Code	ELI

Product range	Retractable Ladders without a Hatch Heavy Duty Retractable Concertina Loft Ladders

Specification data - Aluminium loft ladders

Classification data
Standard	EN 14975, TÜV SÜD Product Service GmbH.
Format	Retractable.
Treads	200 mm. Guidance for specification option: 430 mm minimum opening width. 250 mm. Guidance for specification option: 480 mm minimum opening width. 300 mm. Guidance for specification option: 530 mm minimum opening width. 350 mm. Guidance for specification option: 580 mm minimum opening width, not available with 12 treads. 380 mm. Guidance for specification option: 610 mm minimum opening width, not available with 12 treads. Manufacturer guidance 140 mm depth.
Loft trap door	-
Operating mechanism	Supplied with two heavy duty counter balanced springs incorporated into pivot brackets to ensure that it can be raised and lowered with a minimum of effort.
Backboard	High backboard with additional tread(s). Guidance for specification option: Insert requirements. Available 510–1330 mm. Standard.
Accessories	None. Additional telescopic handrail (left and right). Guidance for specification option: Requires a ceiling opening length of 800 mm (minimum). Supplied with one handrail as standard. The additional telescopic handrail allows for a handrail on each side of the ladder. Powder coat finish to aluminium ladder. Guidance for specification option: Any RAL code, insert requirement. Top operation. Guidance for specification option: Supplied with a eye-bolt and second operating pole to allow the Elite loft ladder to be opened and closed from above.
LoadBearingCapacity	200 kg. Guidance for specification option: Per tread.
Operation	Supplied with two heavy duty counter balanced springs incorporated into pivot brackets to ensure that it can be raised and lowered with a minimum of effort.
Type	8. Guidance for specification option: Up to 2200 mm in height, 590 mm minimum opening length. 9. Guidance for specification option: Up to 2500 mm in height, 620 mm minimum opening length. 10. Guidance for specification option: 2501–2790 mm in height, 670 mm minimum opening length. 11. Guidance for specification option: 2791–3090 mm in height, 750 mm minimum opening length. 12. Guidance for specification option: 3091–3390 mm in height, 820 mm minimum opening length.

Sustainability data

Contains Red List materials	No
Country of product manufacture	Germany
Manufacturing plant location	Gutenbergstraße 21, 86356 Neusäß, Germany
Material	Aluminium Guidance for specification option: Die-cast
Recyclability	90% of all materials used in the product and packaging are recyclable.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	- Manufacturer guidance Data is not currently available.
Expected Life	30 year Guidance for specification option: With correct installation and maintenance.
