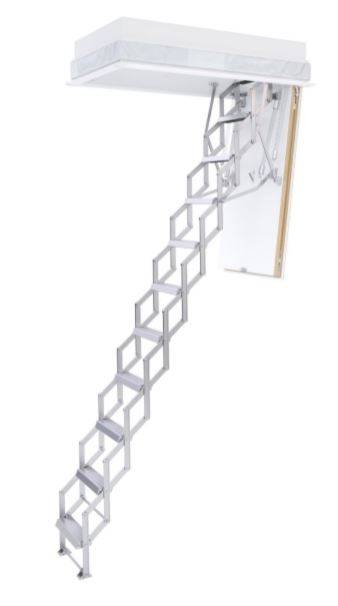

Ecco - Concertina Loft Ladder - Insulated Hatch - Retractable Loft Ladder
Verified by manufacturer 3 months ago
Concertina aluminium loft ladder with insulated wooden hatch box and trapdoor. Compact design, ideal for small ceiling apertures.
Application
Loft applications.
Roof access applications.
Description
Compact concertina aluminium loft ladder, specially designed for small ceiling openings.
It is supplied as a ready to fit unit, consisting of a space-saving retractable ladder contained within, and attached to, a laminated wooden hatch box. The insulated trapdoor offers good energy efficiency (0.77 W/m²K) thanks to a highly insulated trapdoor with four-point locking mechanism providing a Class 4 certified airtight seal. Both sides of the trapdoor are finished in white for improved aesthetics. It is also fitted with the patented WDL sealing and insulation tap, which provides a perfect seal between the hatch box and building and saves time during installation.
Can be specified with a weather resistant upper hatch for flat roof access (maximum ceiling/ roof structure thickness of 710 mm).
Features and benefits:
- Compact aluminium retractable ladder for small openings.
- Light duty load rating (150 kg per tread).
- Easy to operate.
- Highly insulated trap door/ hatch box (U-value: 0.77 W/m²K).
- Class 4 certified airtight seal.
- Available made-to-measure to suit specific project requirements.
- Includes anti-slip treads to provide comfort and safety.
- Supplied with a two-year full warranty and a ten-year parts warranty.
- Low maintenance with excellent durability.
- Supplied ready to install.
- Trapdoor U-value: 0.77 W/m²K.
General information
Color | White Guidance for specification option: Hatch. Silver Guidance for specification option: Aluminium ladder. |
Finish | Natural |
Material | Aluminium Guidance for specification option: Ladder. Timber Guidance for specification option: Hatch box. |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | 2250 mm 2500 mm 2750 mm 3000 mm 3250 mm Manufacturer guidanceMaximum heights. Minimum aperture sizes apply. |
Warranty description | Two year Guidance for specification option: Full manufacturer warranty. Ten year Guidance for specification option: Parts warranty. |
Uniclass | |
CAWS | L30/41 Loft ladders L30/421 Loft ladders |
Specification data - Aluminium loft ladders
Standard | To EN 14975, DIN EN 12207 / 12114 (Class 4), TÜV SÜD Product Service GmbH. |
Floor-to-ceiling height (minimum) | Manufacturer guidanceSuitable for heights from 2000 mm. |
Handrails | Manufacturer guidanceTelescopic handrails are optional. Please refer to 'Accessories'. |
Treads | 9.Guidance for specification option: 2000–2250 mm in height, 800 mm minimum opening length. 10.Guidance for specification option: 2251–2500 mm in height, 800mm minimum opening length. 11.Guidance for specification option: 2501–2750 mm in height, 800 mm minimum opening length. 12.Guidance for specification option: 2751–3000 mm in height, 800 mm minimum opening length. 13.Guidance for specification option: 3001–3250 mm in height, 900 mm minimum opening length. |
Loft trapdoor | |
Minimum opening size (length x width) | 1100 x 600 mm.1100 x 700 mm.1200 x 600 mm.1200 x 700 mm.Special order.Guidance for specification option: Insert requirements. Available 800–1600 x 550–900 mm. |
Operating mechanism | Manual. Counter-balance spring mechanism for safe and easy operation. |
Weatherproof roof hatch | Not required. Required. Guidance for specification option: Weatherproof flat roof access hatch suitable for ceiling/roof structures up to 830 mm thick. |
Accessories | None. Telescopic handrail (both sides). Telescopic handrail (right-hand side only). Three side upper level guard rail. Upper loft hatch (Ecco DD). Guidance for specification option: Combined U-value 0.46 W/m²K. Requires minimum depth of 670 mm. |
Performance | The trapdoor is airtight to class 4 and the hatch box has a rubber seal all the way around. Mitre cut strips are provided ready to be pinned on the underside of the hatch box. |
LoadBearingCapacity | 150 kg. Guidance for specification option: Per tread. |
Sustainability data
Contains Red List materials | No Manufacturer guidanceContains Pentachlorophenol in compliance with EN 13986 (<5ppm) and Formaldehyde in compliance with 717-1 with (<0.05 ppm) and fulfils class E1. |
Country of product manufacture | Germany |
Material | Aluminium Guidance for specification option: Ladder. Timber Guidance for specification option: Hatch box. |
Manufacturing plant location | |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidanceWe hope to be able to publish this data from early 2025. |
Recyclability | 90% of all materials used in the product and packaging are recyclable. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceData currently unavailable. |
Expected Life | 30 year Guidance for specification option: With correct installation and maintenance. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 2 |
 Revit | Revit 2017 | 2 |
Literature
Ecco concertina loft ladder
Case studies

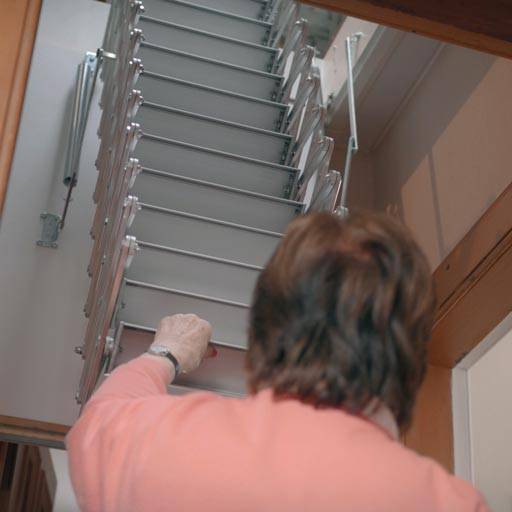

Ecco loft ladder steps up to the challenge

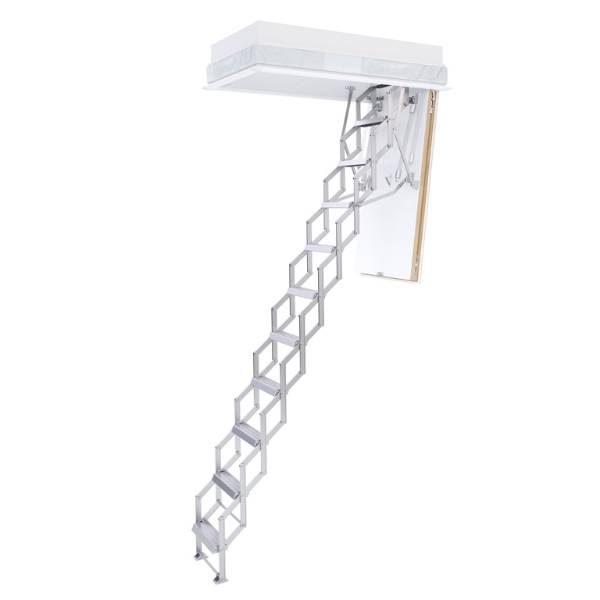

New Product - Ecco Concertina Loft Ladder

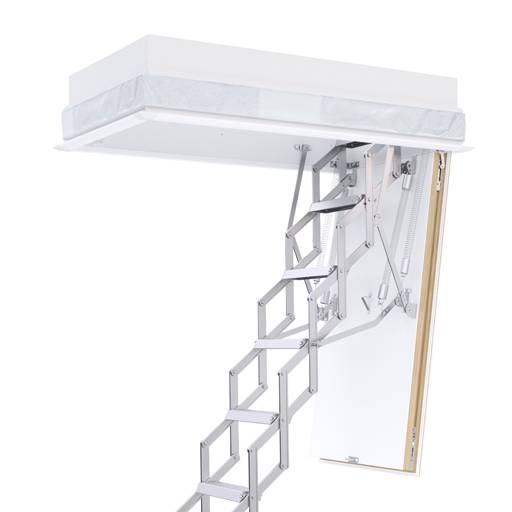

The Ecco concertina loft ladder is the ideal solution for small ceiling openings
