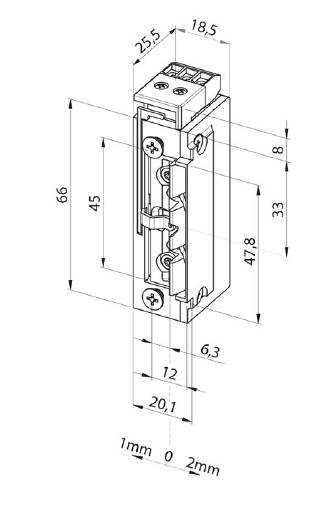

Electric Strike (FF118F.23)
Verified by manufacturer 10 months ago
Fail locked monitoring electric strike.
Application
Typical areas of use are:
- Fire doors in commercial and public buildings, such as single- or two-leaf doors in hospitals.
- Airports or government offices.
- Multi-functional doors in industrial buildings.
- Fire doors in places such as hotels and government agencies.
- Heavy duty door such as huge steel door.
Description
Electric strike model with a monitoring contact as potential-free changeover contact, actuated by the latch bolt.
Features and benefits:
- Radius keep adjustable by 3 mm.
- Universal voltage screw-in terminal/ plug-in connection.
- Compatible with DIN 18250 mortise lock.
- Compatible with ProFix® 2 striking plates.
- Optimum sliding ramp for a soft interplay with the latch bolt.
- Symmetrical design.
- DIN left/ right as well as horizontal applicable.
- Bipolar diode.
General information
Material | Steel |
Shape | Rectangular |
Size | 74 x 20.1 x 25.5 mm |
Uniclass | |
CAWS | P21/28 Door latches P21/540 Door latches |
Specification data - Electric strikes and faceplates
Standards | To BS EN 14846. |
Rated operational voltage (Ue) | 10–24 V.dc. |
Operation in the event of mains failure | Fail locked. |
Monitoring | Monitoring contact (RR). |
Material and finish | Stainless steel. |
Colour | Self coloured. |
Operating temperature range | -15°C to 40°C. |
Execution | Installing electric locks. |
Product Reference | Electric Strike (FF118F.23) |
Resistance | 9000 N. Manufacturer guidanceBreak in resistance. |
Height | 74 mm. |
Width | 20.1 mm. |
Depth | 25.5 mm. |
AdjustmentRange | 3 mm. Manufacturer guidanceFaFix® adjustment range. |
Bolt | 6 mm. Manufacturer guidanceLatch bolt engaging depth. |
Cycles | 25 0000. Manufacturer guidanceLoad cycles for in-plant test. |
Position | Horizontal. Vertical. Manufacturer guidanceInstallation position. |
Electrical resistance | 43 Ω. |
Power consumption | 280–560 mA. Guidance for specification option: Rated current consumption 12—24 V.dc. |
Latch | 200 N. Guidance for specification option: Preload AC. Preload DC (stabilised) 50 N. Manufacturer guidanceLatch preload. |
