Electric Lock Narrow (EL461)
Verified by manufacturer 11 months ago
High security DIN standard handle controlled lock for narrow profile doors.
Application
- Suitable for use in the interior wooden and metal doors of business premises, public buildings, hospitals and educational premises.
- Can be used as fire doors in medium traffic environments.
Description
High security lock for narrow profile doors combining handle controlled unlocking with mechanical security requirements.
When door closes, the straight spindle function engages both handles via electric access control, the dead bolt is thrown out automatically, the double action latch is blocked and the lock case is secured in two points. The inside handle opens the lock mechanically as an exit function.
Features and benefits:
- Non-handed.
- Can be changed between fail-unlocked and fail-locked.
- Burglary-resistant dead bolt with 20 mm throw.
- Mechanical override with cylinder.
- Monitoring functions.
General information
Finish | Satin |
Material | Steel |
Length | Bespoke |
Width | 24 mm |
Height | 300 mm |
Uniclass | |
CAWS | P21/26 Special function door locks P21/530 Special function door locks |
Specification data - Multipoint door locks
Lock type | Mortice lock. |
Backset | 30 mm.35 mm.40 mm.45 mm. |
Material and finish | Satin stainless steel. |
Execution | Fasteners for hardware. |
Product Reference | Electric Lock Narrow (EL461) |
Voltage | 12–24 V d.c. Guidance for specification option: -10%,+15%. |
Power consumption | 550–270 mA. Guidance for specification option: Max consumption at 12—24 VDC (Idle consumption 240—110 mA at 12—24 VDC). |
TemperatureRange | -20°C to +60°C. |
Forend | 24 mm. 28 mm. |
Bolt | 20 mm. Guidance for specification option: Dead bolt. 10 mm. Guidance for specification option: Double action bolt. Manufacturer guidanceBolt throw. |
Configuration | Non-handed. |
Similar products from Abloy UK
Electric Lock Narrow (EL466)

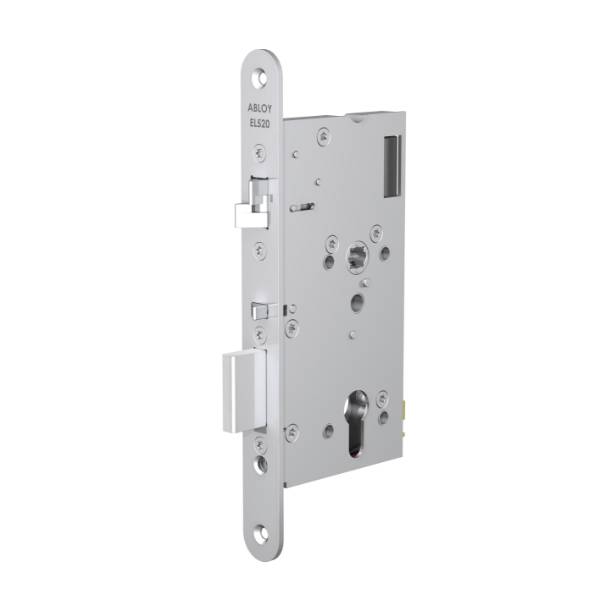

Electric Lock Narrow (EL520)
