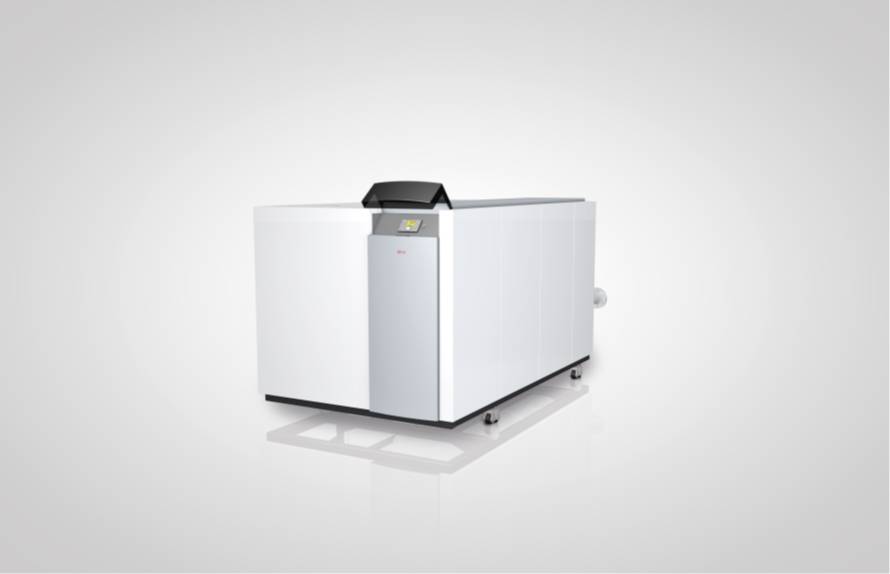

ELCO Trigon XXL Plus (Floor Standing) - Gas Condensing Boiler
Verified by manufacturer today
Fully modulating gas condensing boiler suitable for central heating and sanitary hot water in large buildings.
Application
- Suitable for central heating and sanitary hot water production in hospitals, municipal, sports facilities, industrial and educational buildings.
- Applicable for all central heating systems built according to EN 12828, including cascade applications with up to 16 boilers covering installations up to 32 MW.
Description
The Trigon XXL Plus is a fully modulating gas condensing boiler with a control unit that adapts the modulation ratio automatically to the heat demand by controlling the fan speed. The whirlwind mixing system adjusts the gas ratio to maintain optimal combustion and efficiency. Flue gases exit through the back of the boiler. The return water enters at the lower section, where condensation occurs, then moves upwards, ensuring efficient heat exchange.
Features and benefits:
- System flexibility with easy planning and plug-and-play installation using pre-assembled system kits.
- Boiler design optimised for easy maintenance access.
- Corrosion-resistant stainless steel heat exchanger for high efficiency and long lifetime.
- Environmentally friendly with low emission values.
General information
Color | White |
Finish | Smooth |
Material | Stainless steel Steel |
Shape | Rectangle |
Length | 2185 mm 2565 mm 2795 mm 3310 mm |
Width | 1370 mm 1170 mm 1570 mm |
Height | 1555 mm 1575 mm |
Uniclass | |
CAWS | T90/312 Boilers, gas-fired condensing |
Sustainability data
Material | Stainless steel Steel |
Literature
Literature type
ELCO Trigon XXL - Planner Manual
ELCO Trigon XXL - Installation Manual
Technical Submission - Trigon XXL ECO 650
Technical Submission - Trigon XXL ECO 750
Technical Submission - Trigon XXL ECO 1150

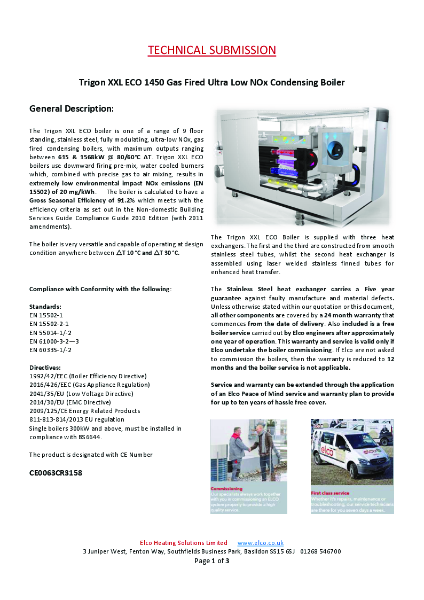

Technical Submission - Trigon XXL ECO 1450
Technical Submission - Trigon XXL ECO 1300
Technical Submission - Trigon XXL ECO 850
Technical Submission - Trigon XXL ECO 950
Technical Submission - Trigon XXL ECO 1600
Technical Submission - Trigon XXL ECO 1050
