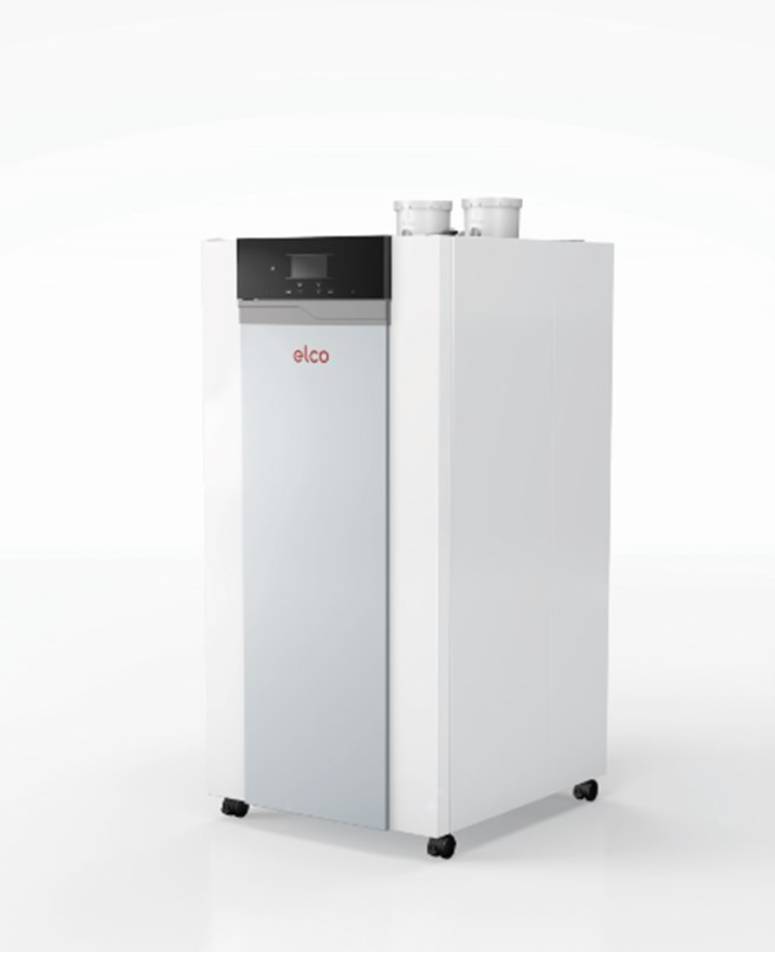

ELCO Trigon L Plus (Floor Standing) - Gas Condensing Boiler
Verified by manufacturer today
A fully modulating condensing gas boiler with pre-mix burners. Suitable for central heating and sanitary hot water in buildings, with outputs from 60 to 200 kW.
Application
- Suitable for central heating and sanitary hot water production in multi-family buildings, municipal and industrial buildings.
- Can be used in single installations from 60 to 200 kW and in cascade installations up to 1600 kW.
Description
The Trigon L Plus is a condensing and modulating gas boiler with one or two pre-mix burners, available in seven types with an output range from 60 to 200 kW.
Features and benefits:
- Compact, pre-assembled construction and ready for connection.
- Stainless steel heat exchanger.
- Insulation in expanded polypropylene.
- Premixed burner in ceramic material for continuous adjustment of power.
- Control unit ACP for combustion management, modulation and safety pump modulation management and flow measurement.
- Combustion control with the ionization principle.
- Automatic temperature control.
- 0–10 V DC input for connection to an external regulation system.
- Connections for flow probe of heating circuit, DHW and external probe.
- ACP control unit with LCD capacitive touch display and LED status indication.
- Ready for connection to BMS systems with supported protocols Modbus, BACnet, LonWorks, KNX (with dedicated accessory).
General information
Color | White |
Finish | Smooth |
Material | Stainless steel Polypropylene |
Shape | Rectangle |
Length | 595 mm 675 mm |
Width | 530 mm 690 mm |
Height | 1100 mm |
Warranty description | Ten year Seven year One year |
Uniclass | |
CAWS | T90/312 Boilers, gas-fired condensing |
Sustainability data
Material | Stainless steel Polypropylene |
Literature
Literature type
ELCO Trigon L Plus - Planner Manual
ELCO Trigon L Plus - Installation Manual
Technical Submission - TRIGON L PLUS 140
Technical Submission - TRIGON L PLUS 120
Technical Submission - TRIGON L PLUS 170
Technical Submission - TRIGON L PLUS 200
Technical Submission - TRIGON L PLUS 60
Technical Submission - TRIGON L PLUS 100
Technical Submission - TRIGON L PLUS 60 H2
Technical Submission - TRIGON L PLUS 100 H2
Technical Submission - TRIGON L PLUS 70 H2
Technical Submission - TRIGON L PLUS 140 H2
Technical Submission - TRIGON L PLUS 120 H2
Technical Submission - TRIGON L PLUS 170 H2
Technical Submission - TRIGON L PLUS 200 H2
