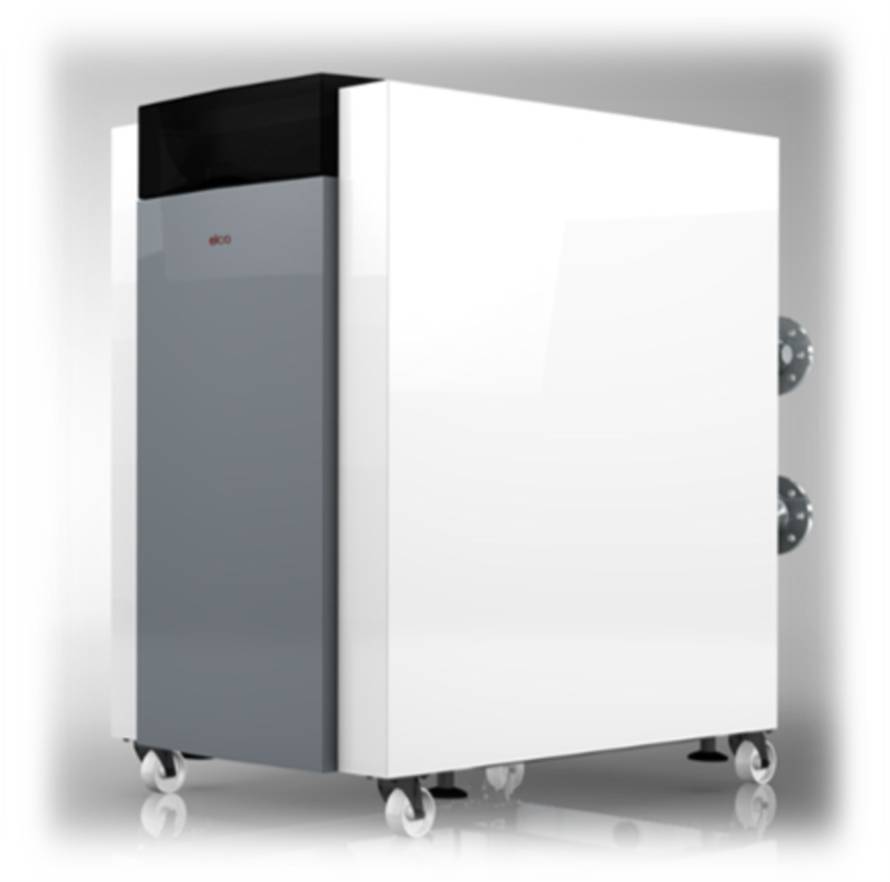

ELCO Trigon XL Plus (Floor Standing) - Gas Condensing Boiler
Verified by manufacturer today
Floor-standing gas condensing boiler with modulating control, stainless steel heat exchanger, and flexible system integration for central heating and hot water production.
Application
- For central heating and sanitary hot water production in multi-family, municipal and industrial buildings.
- Suitable for cascade applications up to 4300 kW with LMS14 master/ slave cascade control.
Description
The Trigon XL Plus is a fully modulating floor-standing gas condensing boiler available in seven types with output range from 142 to 540 kW. The boiler adapts the modulation ratio automatically to heat demand by controlling fan speed, optimising combustion efficiency with a whirlwind mixing system. Flue gases exit at the back side into the chimney connection. Return water enters at the lower section, where condensation occurs, and water flows upwards, ensuring efficient combustion results.
Features and benefits:
- High system flexibility with easy planning and plug-and-play installation using pre-assembled system kits.
- Easy maintenance with boiler design optimised for easy access during servicing.
- Corrosion-resistant stainless steel heat exchanger.
- Environmentally friendly with low emission values.
General information
Color | White |
Finish | Smooth |
Material | Stainless steel |
Shape | Rectangle |
Length | 1349 mm 1499 mm 1649 mm 1348 mm 1496 mm |
Width | 466 mm 748.5 mm |
Height | 1466 mm 1470 mm |
Uniclass | |
CAWS | T90/312 Boilers, gas-fired condensing |
Sustainability data
Material | Stainless steel |
Literature
Literature type
ELCO Trigon XL - Planner Manual
ELCO Trigon XL - Installation Manual
Technical Submission - Trigon XL 150 H2
Technical Submission - Trigon XL 200
Technical Submission - Trigon XL 570
Technical Submission - Trigon XL 500
Technical Submission - Trigon XL 150
Technical Submission - Trigon XL 400
Technical Submission - Trigon XL 250
Technical Submission - Trigon XL 300
Technical Submission - Trigon XL 200 H2
Technical Submission - Trigon XL 570 H2
Technical Submission - Trigon XL 500 H2
Technical Submission - Trigon XL 300 H2
Technical Submission - Trigon XL 400 H2
Technical Submission - Trigon XL 250 H2
