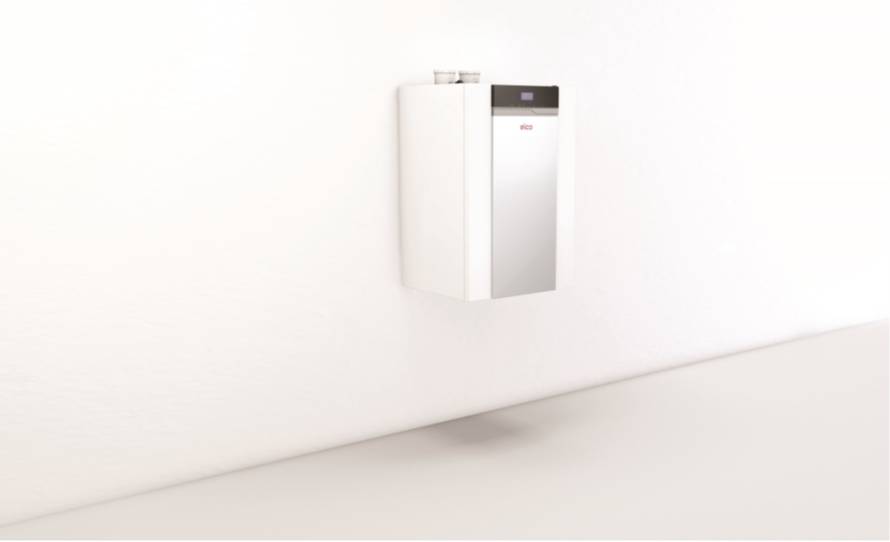

ELCO Thision L Plus (Wall or Frame mounted) - Gas Condensing Boiler

Name: ELCO Thision L Plus (Wall or Frame mounted) - Gas Condensing Boiler
Brand: Ariston Group UK Ltd
SKU: 5ZR7pRCssvnVpsjoy8q9iZ

Verified by manufacturer today

Ariston Group UK Ltd

A fully modulating condensing gas boiler with one or two pre-mix burners. Suitable for central heating and sanitary hot water production in multi-family, municipal and industrial buildings.

Request BIM

Application

Used for central heating and sanitary hot water production in multi-family buildings, municipal and industrial buildings.
Can be used in single installations (60 to 200 kW) or cascade installations up to 1600 kW.

Description

The Thision L Plus is a condensing and modulating gas boiler with one or two pre-mix burners and available in seven types within an output range from 60 to 200 kW.

Features and benefits:

Compact, pre-assembled construction and ready for connection.
Stainless steel heat exchanger.
Insulation in expanded polypropylene.
Premixed burner made of ceramic material for continuous adjustment of power.
Control unit ACP for combustion management, modulation, safety pump modulation management, and flow measurement.
Combustion control with ionization principle.
Automatic temperature control.
0-10 V DC input for connection to external regulation systems.
Alarm output or operating status indication.
Connections for flow probe of heating circuit, domestic hot water (DHW), and external probe.
ACP control unit with LCD capacitive touch display and LED status indication.
Ready for connection to BMS systems with supported protocols Modbus, BACnet, LonWorks, KNX via dedicated accessories.
Support for wall mounting included.
Automatic air vent valve and flue non-return valve.
Modulating pump pre-mounted in the boiler with flow measurement and diagnostics.
