Elan Double Skin Steel Partitioning - Modular steel partitioning
Verified by manufacturer 5 months ago
A double skin relocatable partitioning system.
Application
The Elan steel partitioning system is suitable for commercial, office and factory applications.
Description

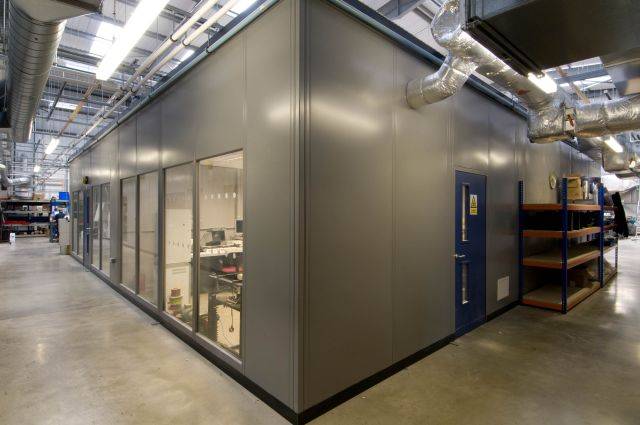

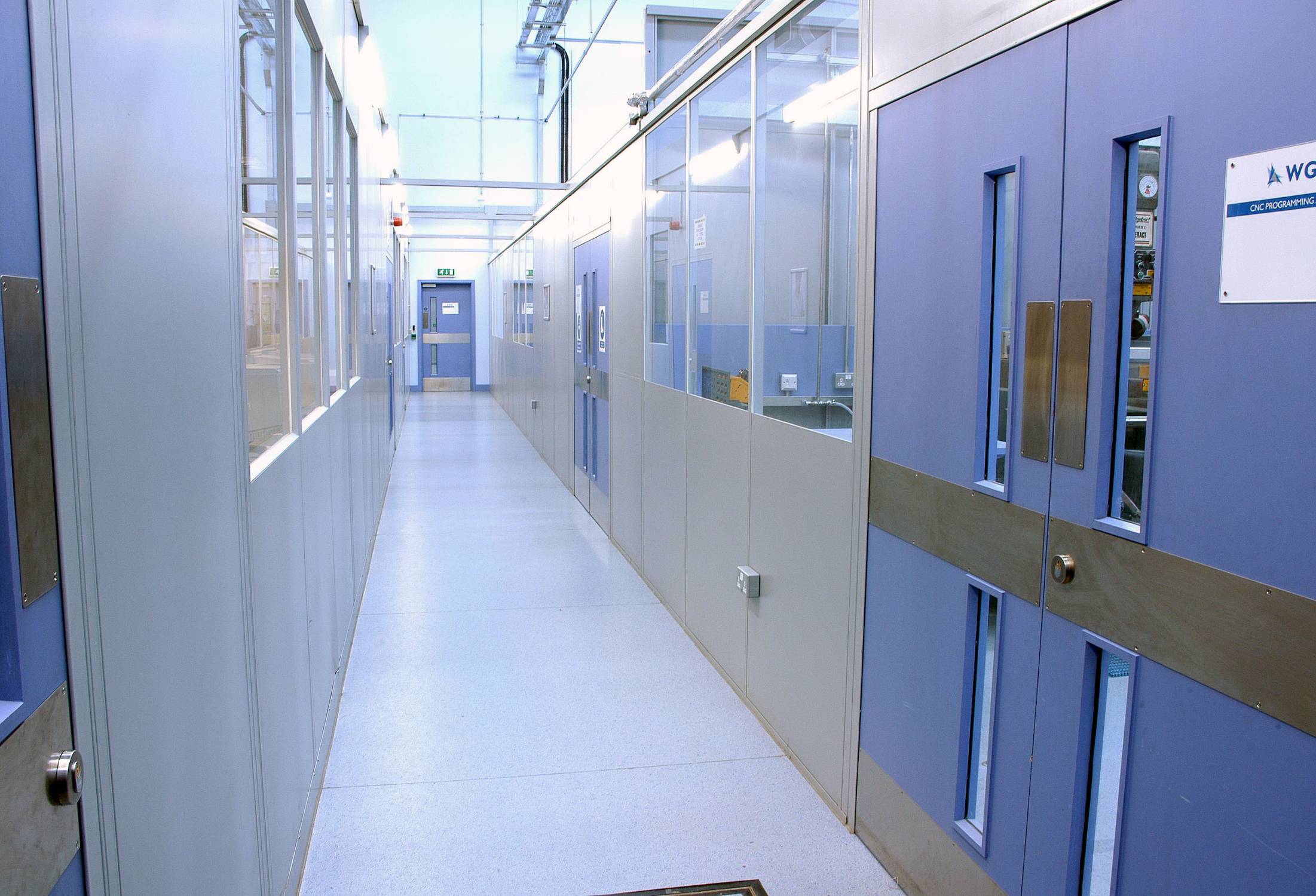

Elan is a high quality, relocatable, modular, double skin steel partitioning system designed and manufactured for all commercial, office and factory applications. The system offers standard panels in full steel, full glass or steel and glass and comes complete with a range of door types and access control options.
The system features controlled factory assembled units of monobloc construction, with two steel skins separated by a honeycomb or rockwool core and uses a concealed cleat system for rapid, site assembly. Removable skirting and vertical junction channels allow access for wiring runs. All components are factory finished in polyester powder coating, in a wide range of RAL colours. Quick delivery and installation.
Features and benefits:
Demountable, relocatable steel partitioning system.
General information
Color | Grey Black Beige Blue Brown |
Finish | Powder-coated |
Material | Carbon steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | K30/10 Relocatable partition system K30/130 Relocatable partition system K30/135 Relocatable partition/ ceiling system |
Product range |
Specification data - Partition panels
Unit size | |
Thickness | 51 mm. |
Partition height (nominal) | 2440 mm. 2745 mm. 3050 mm. 3660 mm. Special order. Guidance for specification option: Insert requirement. |
Width (nominal) | 300 mm. 400 mm. 500 mm. 600 mm. 700 mm. 800 mm. 900 mm. 1000 mm. |
Panel partition type | AS (all steel). GSG (glass-steel-glass). SG (steel glass). SGS (steel-glass-steel). |
Framing, junctions, corners | Panels sit in a floor channel connected using special cleats that clip into the vertical profiles of the panels to form a solid joint, end, post and corner joints use the same profiles and once assembled are covered by clip on cover trims, finished with a skirting and top cap. |
Solid panels | |
Type | Double skin carbon steel 0.7 mm thick with material configuration as required. |
Finish and colour | Powder coated paint, Blue - RAL 5010. Powder coated paint, Grey - BS.0.A.05. Powder coated paint, Grey - RAL 7037. Powder coated paint, Sandstone - BS.08.B.17. Powder coated paint, White - RAL 9010. Powder coated paint, Special order. Guidance for specification option: Insert requirement. |
Joint treatment | |
Type | Concealed cleat system. |
Glazed panels | |
Type | 6 mm polycarbonate single glazing with a film. 6 mm polycarbonate single glazing without a film. 6 mm toughened single glazing. 6.4 mm laminated single glazing. Double glazed. |
Integral blinds | Not required. Integral blinds within double glazed units. Guidance for specification option: 25 mm slat venetian blinds. |
Door arrangement | |
Type | Hinged. Sliding. |
Door frames | Box frame 50 mm - 2021 mm high with overpanel. |
Door leafs | |
Type | Double. Single. |
Vision panels | As required. |
Additional apertures | Guidance for specification option: Insert requirements, panels can incorporate factory produced apertures to house light switches, socket outlets and access hatches. |
Ceiling | |
Type | Manufacturer guidanceInsert requirement, steel ceilings, self-supported tiled ceilings and suspended tiled ceilings available. |
Panels | Guidance for specification option: Insert requirement. |
Method of support | To suit the application. |
Joint treatment | To suit the application. |
Cable management and outlets | Guidance for specification option: Insert requirements, can be routed through floor gap and panel joints, or internal trunking and back boxes can be provided as required. |
Perimeters, skirtings, sills | Black plastic, powder coated steel. |
Trims | Top cap options to suit application, fascias to suit when ceilings are required. |
Panel weight | Nominally 17 kg/m² excluding glass. |
Fire resistance of complete system (to BS 476-22) | Non-fire rated. 30 minutes integrity. 60 minutes integrity. |
Fire rating for panels | Guidance for specification option: Insert requirements. |
Accessories | None. Ceiling lights. Drop down hatch with hinged flap. Guidance for specification option: Hinged steel panel can be used as a serving shelf. Sliding glass hatch. Guidance for specification option: For inter communication between areas. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Carbon steel |
