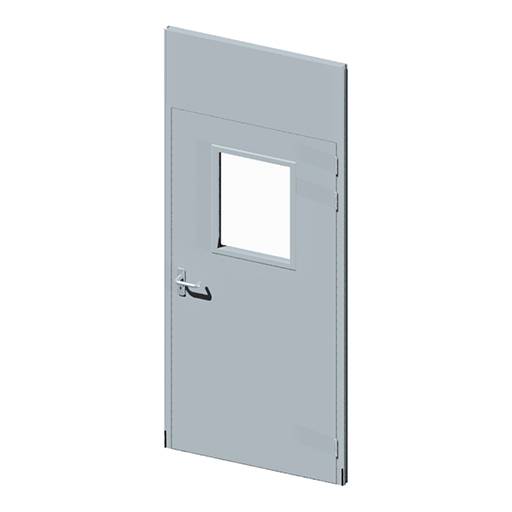

Elan double skin steel, single hinged doors are available in a variety of styles for use with the Elan panel partitioning wall system.

Jump to:
+44 (0)1793 542000 www.troax.com/gb

Application

Suitable for use with the Elan partitioning system.

Description

Double door for use within the Elan partitioning system.


Features and benefits:

The Elan steel partitioning system is suitable for commercial, office and factory applications.

General information

Color

Available in a range of colours.

-

Finish

Powder coated

Material

Carbon steel

Carbon steel facings with insulation core

Shape

Rectangle

WarrantyDescription

The warranty shall apply when the products supplied by Troax and installed in accordance with our standard installation instructions or by Troax installers and will be subject to assessment by a Troax representative if deemed to be required

-

Uniclass 2015

Pr_30_59_24_52 Metal doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Product range

Elan

Specification data - Metal doorsets Enhanced data

Configuration

Single leaf, single action.

Doorset size

Insert requirement, available 900–1000 x 2440–3050 mm (w x h), 1971 mm opening height.

-

Performance

-

Fire performance

-

Fire integrity

None.

For honeycomb core.

30 minutes.

For Rockwool core.

60 minutes.

For Rockwool core.

Fire insulation

None.

For honeycomb core.

30 minutes.

For Rockwool core.

60 minutes.

For Rockwool core.

Thermal

Double glazed: 0.601, full steel: 0.580, single glazed: 1.637.

Frame

-

Material

Carbon steel.

Threshold

None.

Finish

-

Coating

TGIC and lead free powder coated to an average thickness of 70 microns.

Colour

Blue - RAL 5010.

Grey - BS.0.A.05.

Grey - RAL 7037.

Sandstone - BS.08.B.17.

White - RAL 9010.

Special order.

Insert requirement.

Installation fasteners

Connects to adjacent Elan panels using unique cleat and cover channel.

Door leaf

-

Thickness

50 mm.

Core

Honeycomb paper.

Rockwool (fire rated).

Material

Double skin carbon steel, 0.7 mm thick.

Timber.

Glazing

-

Type

6 mm single glazing.

6.4 mm single glazing.

Double glazed with 36 mm cavity.

Beading

-

Type

Both.

Material

Metal.

Fixing

Clip on.

Finish

-

Coating

TGIC and lead free powder coated.

External colour

Blue - RAL 5010.

Grey - BS.0.A.05.

Grey - RAL 7037.

Sandstone - BS.08.B.17.

White - RAL 9010.

Special order.

Insert requirement.

Internal colour

Blue - RAL 5010.

Grey - BS.0.A.05.

Grey - RAL 7037.

Sandstone - BS.08.B.17.

White - RAL 9010.

Special order.

Insert requirement.

Film thickness (minimum)

70 microns (average).

Door accessories

None.

Louvered vents.

Push/ pull handles.

Round vision panels.

Spy holes.

Stainless steel framed vision panels.

Stainless steel kick plates.

Hardware

Hinges: stainless steel, handles: satin finish stainless steel round handles, closer: satin anodized aluminium.

Digital mechanical lock.

Emergency exit hardware.

Euro cylinder.

Three lever lock set with tower bolt.

Standard.

Special order.

Insert requirements.

Accessories

None.

Drop down seal.

Entry systems.

Handicap accessible.

Self-closers.

Special order.

Insert requirements.

Dimensions

415 x 565 mm aperture.

Standard.

DDA compliant slot form.

Environmental information

Country of material origin

United Kingdom

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

2

1.3
Revit

Revit 2015

2

1.3
Download now from NBS National BIM Library
