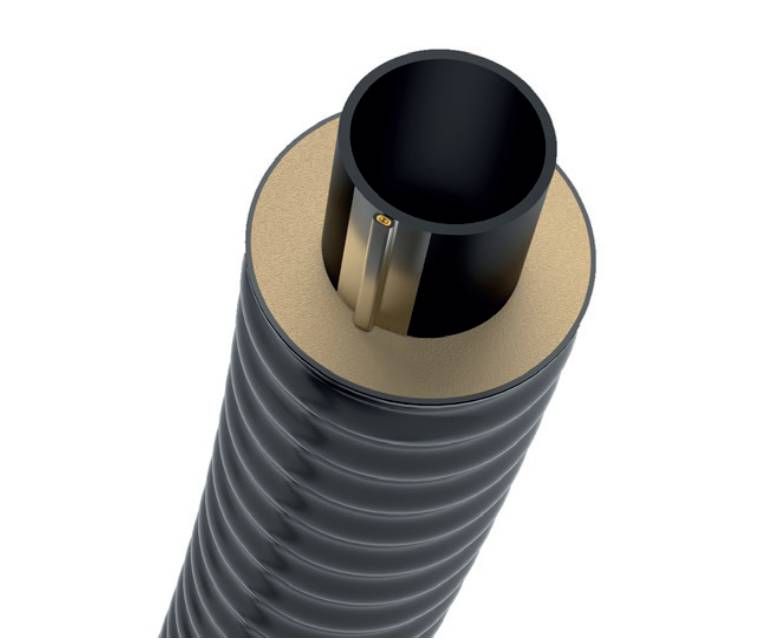

EIGERFLEX - Insulated Cold Water Pipe
Verified by manufacturer 2 days ago
EIGERFLEX
EIGERFLEX
Certificate of Conformity
Certificate type
A flexible, insulated cold water system with integrated frost protection tape for the transport of drinking or process water that requires protection against frost.
Application
- Cold water pipe for coastal areas, nature reserves and residential areas.
- Waste water pipe for industry and households.
Description
EIGERFLEX is BRUGG Pipe Systems' flexible, pre-insulated water pipes featuring an integrated frost protection strip (FPC) or EIGERFLEX LONGLINE with fixed-resistance trace heaters for applications involving lengthy heating circuits. EIGERFLEX adapts to your needs for your cold water pipe, even if installation at frost-proof depths is not possible.
Features and benefits:
- Ensures the transport of drinking water and wastewater under difficult conditions.
- Minimal costs for underground work.
- Adaptable to any terrain.
General information
Color | Black |
Material | Polyethylene Polyurethane (PUR) Linear low-density polyethylene (LLDPE) |
Shape | Circle |
Length | Bespoke |
Width | 78 mm 93 mm 113 mm 128 mm 143 mm |
Height | 78 mm 93 mm 113 mm 128 mm 143 mm |
Uniclass | |
CAWS | S90/540 Thermoplastics pipework |
Specification data - Pre-insulated pipes
Classification data | |
Standards | |
Pipes | Carrier pipe to DIN EN 12201, DIN 8074 and DIN 8075. |
Environmental performance | |
Environmental rating | Manufacturer's standard. |
Embodied carbon | Manufacturer's standard. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. |
Recyclability | Manufacturer's standard. |
Accessories | EIGERFLEX L-shell, dimension Ø 76–126 mm. EIGERFLEX Big-L-shell, dimension Ø 162–182 mm. Joint (PE-HD shrink sleeve), dimension Ø 76–182 mm. EIGERFLEX I-shell, dimension Ø 76–126 mm. EIGERFLEX Big-I-shell, dimension Ø 126–182 mm. EIGERFLEX T-shell, dimension Ø 76–126 mm. EIGERFLEX Big-T-shell, dimension Ø 76–182 mm. PUR-foam containers. PE-isolation. Brass screwed connectors with external thread. Brass screwed connectors with weld end. Brass coupling, equal. Brass 90° angle coupling. PEX T-piece egal/reduced. PEX angle piece, 90°. PEX T-piece egal/reduced (without fusion joint). PEX angle piece, 90° equal (without fusion joint). PEX sleeves. Shrink-on end cap, UNO. End cap EPDM, UNO. End cap, UNO. Wall sealing ring. Wall seal core bores/ cement pipe liners. |
Pipe diameter | DN 20 (Type 25/76). Guidance for specification option: PE inner pipe: 25 x 2.3 mm. Minimum bending radius: 0.7 m. DN 25 (Type 32/76). Guidance for specification option: PE inner pipe: 32 x 2.9 mm. Minimum bending radius: 0.8 m. DN 32 (Type 40/91). Guidance for specification option: PE inner pipe: 40 x 3.7 mm. Minimum bending radius: 0.8 m. DN 40 (Type 50/91). Guidance for specification option: PE inner pipe: 50 x 4.6 mm. Minimum bending radius: 0.9 m. DN 50 (Type 63/126). Guidance for specification option: PE inner pipe: 63 x 5.8 mm. Minimum bending radius: 1.0 m. DN 65 (Type 75/126). Guidance for specification option: PE inner pipe: 75 x 6.8 mm. Minimum bending radius: 1.0 m. DN 80 (Type 90/162). Guidance for specification option: PE inner pipe: 90 x 8.2 mm. Minimum bending radius: 1.2 m. DN 100 (Type 110/162). Guidance for specification option: PE inner pipe: 110 x 10.0 mm. Minimum bending radius: 1.2 m. |
Pipe material | Carrier: polyethylene (PE) Insulation: polyurethane (PUR). Casing: Linear low-density polyethylene (LLDPE). |
Operating pressure (maximum) | 16 bar. |
Integral accessories | Integrated frost protection strip (FPC). |
Sustainability data
Material | Polyethylene Polyurethane (PUR) Linear low-density polyethylene (LLDPE) |
Product certifications

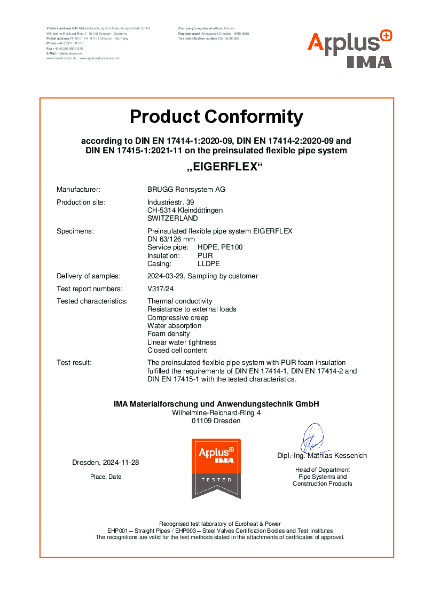

Certificate of Conformity
Product Conformity
Literature

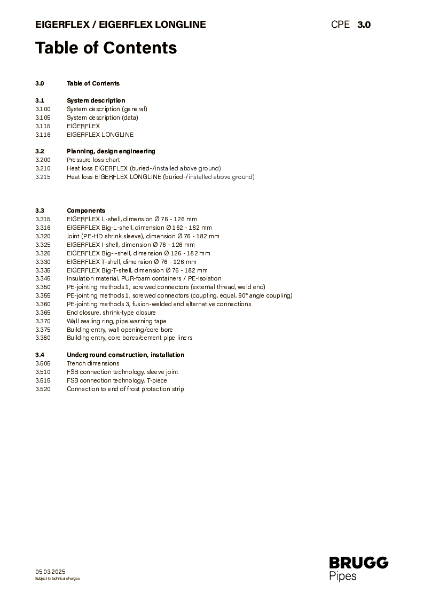

CPE Catalogue

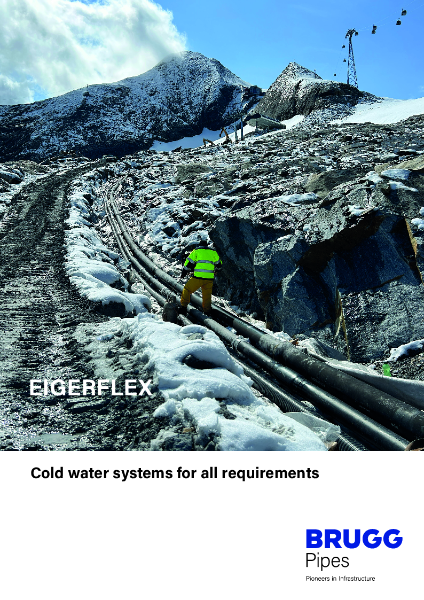

CPE Brochure
