EI90 Technishield 70 Rebated Fire Resistant Double Leaf Door

Name: EI90 Technishield 70 Rebated Fire Resistant Double Leaf Door
Brand: Optima
SKU: vATYLLTbND4QSvGt5gGrsQ

Verified by manufacturer 2 days ago

Optima

Fire resistant glass doorset, double door. 90 minutes integrity and 90 minutes insulation.

Jump to:

+44 (0)1494 492725 Website

Application

For use in conjunction with Technishield 70 partition system.

Description

A framed, rebated double-leaf, fire resistant glass doorset on hinges.

Features and benefits:

Offering 90 minutes' integrity and insulation.
Part M-compliant clear opening.

General information

Color	White Silver Other
Finish	Powder-coated
Material	Glass
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Three year Guidance for specification option: See Warranty Policy literature for more information.

Uniclass	Ss_25_30_20_25 Doorset systemsPrimary
CAWS	L20/480 Doorsets L20/55 Doorsets

Product range	Fire Range Technishield 70

Specification data - Doorset systems

Classification data
System performance	Fire performance.
Doorset	-
Type	Fire rated glass doorset.
Seals or inserts	-
Door	Manufacturer's standard. Guidance for specification option: Dropseal: Type RO drop seals. Door seals: Fire and smoke protection double seal.
Side panels	Not required. Side panel both sides. Side panel left side. Side panel right side.
Hardware	Manufacturer's standard. Guidance for specification option: Hinges: Two face-fitted, weld-on hinges per leaf. Handles: Forster stainless steel lever handle set, fire-rated, cranked U-form steel cored with 9 mm spindle. Lock: Two-point fire-rated lever latch with Euro-cylinder operated deadlock. Euro cylinder: Cylinder and turn – 40 mm/ 40 mm. Door closer: TS-93 5-7. Other. Guidance for specification option: Insert requirements; contact manufacturer for information.
Samples required	Not required. Required.
Finish/ Colour	Powder-coated, RAL. Guidance for specification option: Insert requirement; contact manufacturer for more information. Powder-coated, RAL 9006 Silver. Guidance for specification option: 50 microns, 30% gloss (nominal). Powder-coated, RAL 9010 White. Guidance for specification option: 50 microns, 30% gloss (nominal).
Manifestation	Guidance for specification option: Insert requirements.
Fire rating	EI90 – 90 minutes' integrity and insulation (90/90).
Size	Guidance for specification option: Door: With over-panel: Available 955–1460 x 2200–3600 mm (w x h); without over-panel: Available 955–1460 x 1800–2320 mm (w x h). All dimensions subject to specification and certification. Side panel: Available 300–1100 mm in width.
Configuration	As schedule. As drawing. Guidance for specification option: Insert drawing reference number.

Sustainability data

Country of product manufacture	United Kingdom
Material	Glass
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared

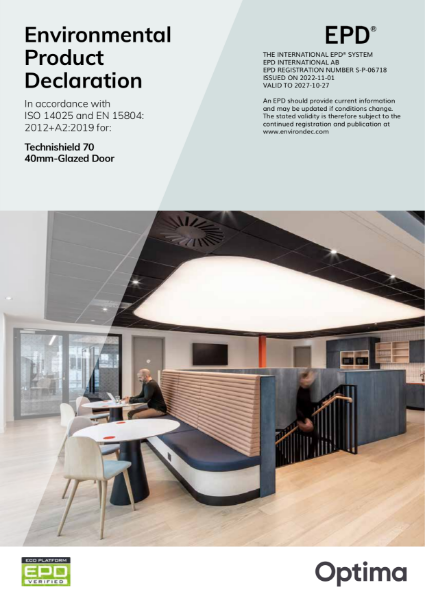

Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 209 Value guidance: A1-A3 See Environmental Product Declaration literature for LCA data.
